B0275 12V 50A Alternator Fits Suzuki Swift
Price range: £86.52 through £114.62

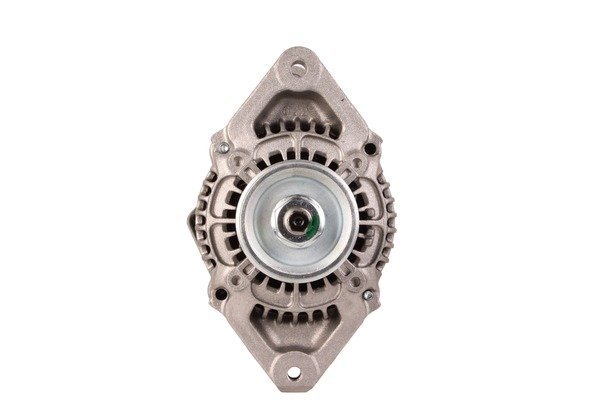

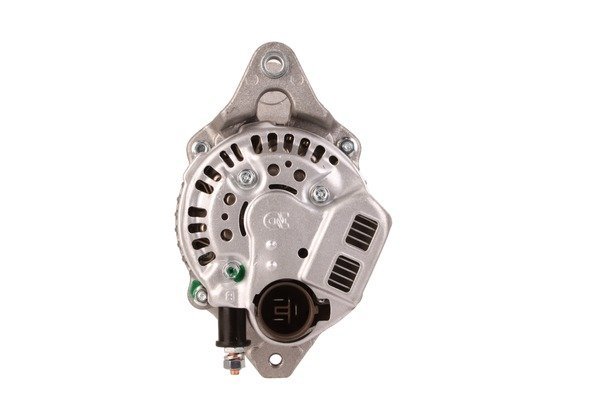

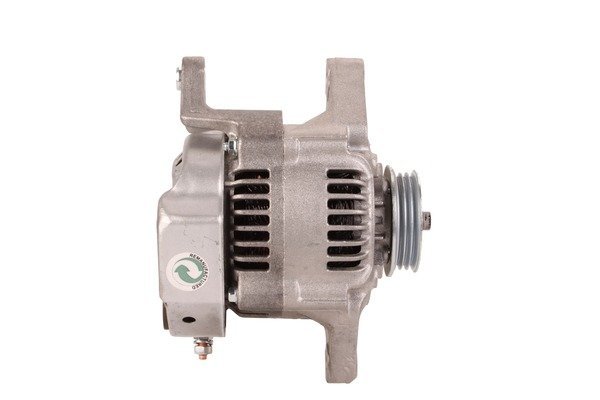

The B0275 12V 50A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Suzuki Swift models. Identification references include Lucas LRB00275, Bosch F042302011, Valeo 437632. Its listed 12V 50A rating provides an electrical matching point for your existing unit. Check the 4-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0275 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 50 A |
| Volt | 12 V |
| No. of Grooves | 4 qty |
| Pulley Diameter | 55 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 3.2 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0275 | Dyno Electrics |
| 401810231 | Euro Car Part |
| 986038470 | Bosch Exchange |
| 986038471 | Bosch Exchange |
| 0986UR0214 | Bosch Exchange |
| 1002116600 | Denso |
| 1002116601 | Denso |
| 1002116602 | Denso |
| 1002116603 | Denso |
| 100211672 | Denso |
| 1002116720 | Denso |
| 1002116721 | Denso |
| 1002116760 | Denso |
| 1012112120 | Denso |
| 110967 | HC-Cargo |
| 13214N | WAI |
| 13214R | WAI |
| 13316R | WAI |
| 185502050 | PSH |
| 3140060840 | Suzuki |
| 3140060A11NR | Suzuki |
| 3140060B01 | Suzuki |
| 3140060B10 | Suzuki |
| 3140060B11 | Suzuki |
| 3140060B11000 | Suzuki |
| 3140060B4 | Suzuki |
| 3140060B40 | Suzuki |
| 3140060V40 | Suzuki |
| 3140071C50 | Suzuki |
| 3.14E+06 | Suzuki |
| 437632 | Valeo |
| 5367 | RNL |
| 90295091 | Wilson |
| 90295285 | Wilson |
| 9.44E+11 | Magneti Marelli |
| 96030337 | General Motors |
| 96060337 | General Motors |
| A8314 | Dixie |
| AL4501X | Bosch (USA) |
| ALT30297 | Wood Auto |
| ALT5022 | Unipoint |
| ALT5025 | Unipoint |
| AZA419 | ATK |
| AZA425 | ATK |
| DRA3337 | Delco Remy |
| F032110967 | HC-Cargo |
| F042302011 | Bosch |
| F042302013 | Bosch |
| F042A02013 | Bosch |
| HJA798IR | HC-Parts |
| JA798IR | HC-Parts |
| LEA0568 | Lucas |
| LRB00275 | Lucas |
| LRB275 | Lucas |
| MRA51808 | Magneti Marelli |
| WOOALT30297 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | Swift | 1.0 (993ccm) Petrol | G10A | MK II | SF310 | 1989 - 1992 | |
| SUZUKI | Swift | 1.0 (993ccm) Petrol | G10 | MK II | SF310 | 1989 - 2001 | |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13BA | MK II | SF413 | 1989 - 1991 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK II | SF413 | 1989 - 1991 |
Description
B0275 Replacement Alternator
The B0275 alternator is a replacement unit identified by Lucas reference LRB00275. The listed electrical rating is 12V 50A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Suzuki Swift 1.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 50A output: compare the listed rating with the original alternator.
- 4-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Suzuki Swift 1.0 Petrol – selected applications 1989–1992 (engine code G10A).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0275. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986038470, 986038471, 0986UR0214, F042302011, F042302013, F042A02013, 437632, 1002116600, 1002116601, 1002116602, 1002116603, 100211672, 1002116720, 1002116721, 1002116760, 1012112120, LRB00275, LEA0568, LRB275, DRA3337
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0275 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0275 fit my Suzuki Swift?
Suzuki Swift 1.0 Petrol (1989–1992) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0275 replace Lucas LRB00275?
Lucas LRB00275 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0275?
The listed details include 12V, 50A output, 4 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0275 new or remanufactured?
Check the current product condition selection for B0275. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0275?
Compare 12V compatibility, 50A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
