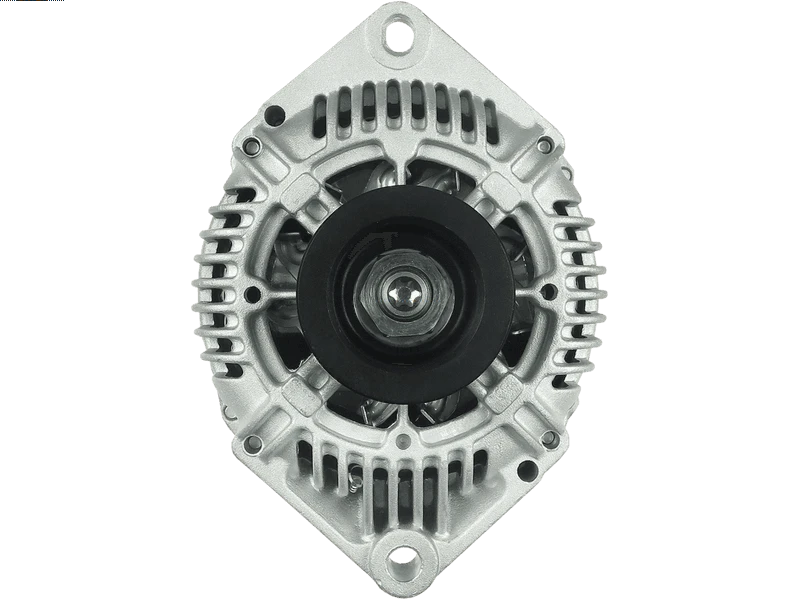

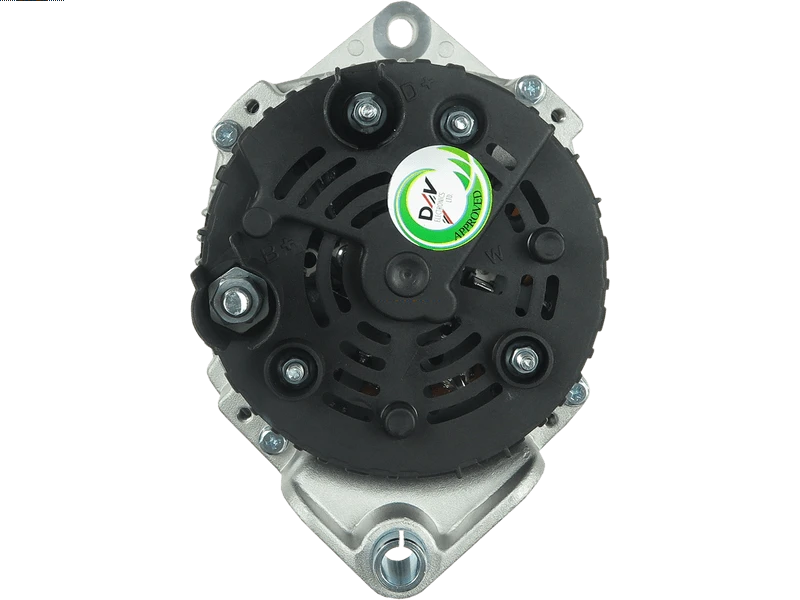

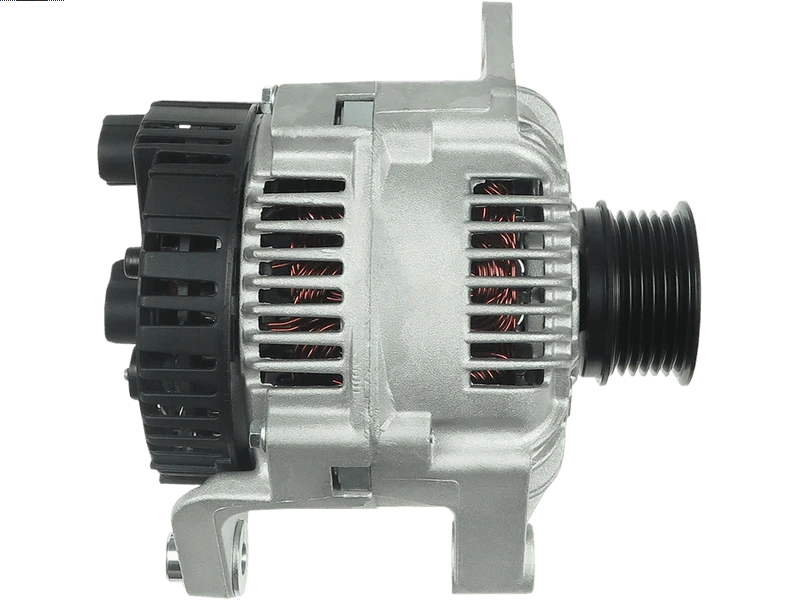

B0298 12V 110A Alternator Fits Peugeot Boxer, Citroën Jumper 35

Description

B0298 Replacement Alternator

For a B0298 alternator enquiry, use Lucas reference LRB00298 alongside the vehicle and original unit details. The listed electrical rating is 12V 110A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Peugeot Boxer 2.5 Diesel variants.

Key Features and Benefits

• 12V electrical system: match the vehicle voltage before selecting a unit.
• 110A output: compare the listed rating with the original alternator.
• 6-groove pulley: check belt profile and alignment against the existing unit.
• 3 mounting holes: compare the fixing pattern and unit position.
• M8 B+ terminal: check the connection against the original unit.

Compatible Vehicles and Applications

• Peugeot Boxer 2.5 Diesel – selected applications 1997–2001 (engine code 814067).
• CitroËN Jumper 35 2.8 Diesel – selected applications 1998–2002 (engine code 814063).
• Fiat Ducato 10 2.5 Diesel – selected applications 1994–1998 (engine code 814047).
• Fiat Ducato 14 2.5 Diesel – selected applications 1994–1998 (engine code 814067).
• Fiat Ducato 18 2.5 Diesel – selected applications 1994–2002 (engine code 814047).

These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.

OE Numbers and Cross-Reference Information

The following cross-reference numbers are associated with B0298. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.

986042171, 2541679, 2541679C, 2541769C, 436636, 439065, A13VI73, NA467, VA308, LRB00298, LRB298, DRA3764, 35215345, 5705-7Y, 5705-7Z, 5705-GY, 57054E, 57057Y, 57057Z, 5705GY

The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.

When Should You Replace Your Alternator?

Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.

Why Buy from Sahibs Auto Electrics?

Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0298 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.

Frequently Asked Questions

Will B0298 fit my Peugeot Boxer?

Peugeot Boxer 2.5 Diesel (1997–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.

Does B0298 replace Lucas LRB00298?

Lucas LRB00298 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.

What specifications are listed for B0298?

The listed details include 12V, 110A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.

Is B0298 new or remanufactured?

Check the current product condition selection for B0298. Confirm the supplier and availability of the option you want before completing the order.

What should I compare before ordering B0298?

Compare 12V compatibility, 110A output, pulley configuration, mounting points and electrical connections with the original alternator.

Does a battery warning light prove the alternator has failed?

No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
