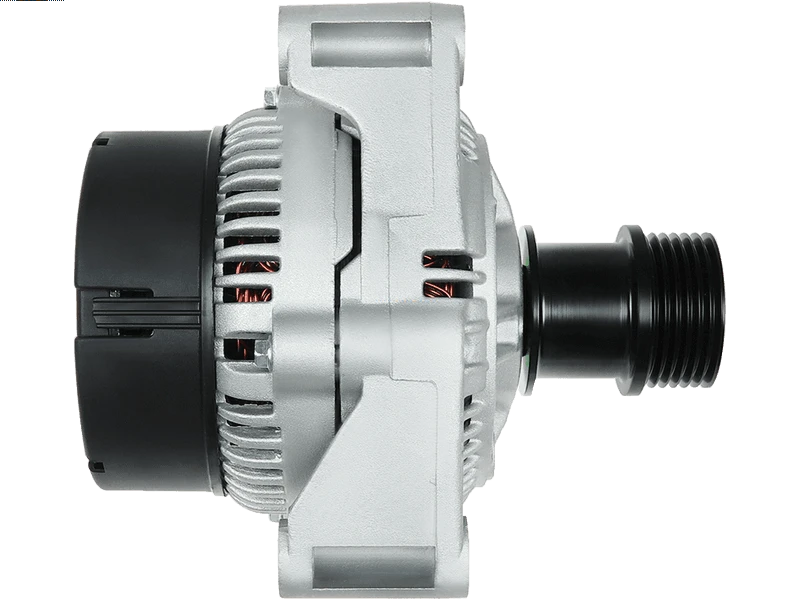

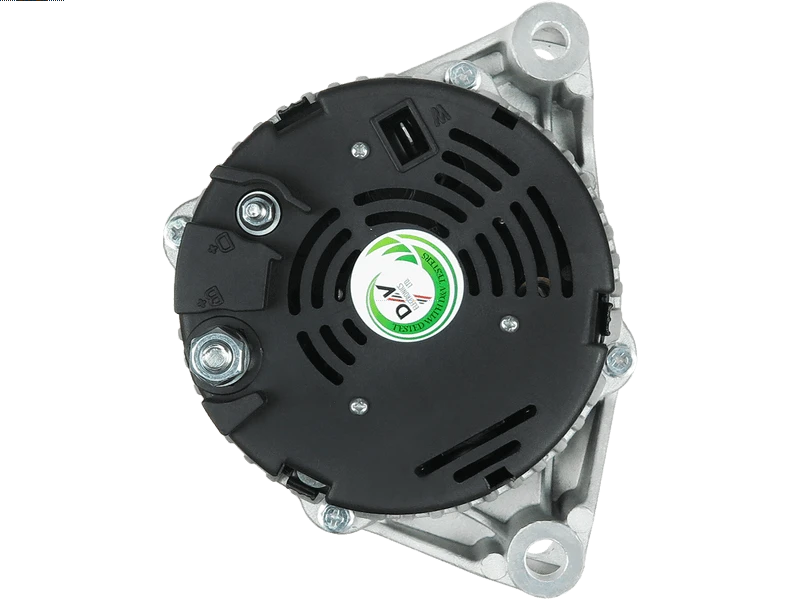

B0349 12V 90A Alternator Fits Saab 900, Saab 9-Mar, Saab 9-May
Price range: £116.00 through £155.26
Identify a replacement alternator using Sahibs B0349, listed at 12V 90A. Listed applications include selected Saab 900, Saab 9-Mar, Saab 9-May models. Identification references include Lucas LRB00349, Bosch 123310041, Prestolite 20110349. Its listed 12V 90A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0349 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 90 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 51 mm |
| Mounting holes | 2 qty |
| Position | 60° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.6 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0349 | Dyno Electrics |
| 401880111 | Euro Car Part |
| UD20952A | AS-PL |
| 123310041 | BOSCH |
| 123320057 | BOSCH |
| 123325007 | BOSCH |
| 123335004 | BOSCH |
| 123335005 | BOSCH |
| 986039660 | BOSCH |
| 8EL012427-901 | HELLA |
| 8EL737158-001 | HELLA |
| 11.203.011 | ISKRA / LETRIKA |
| AAK5312 | ISKRA / LETRIKA |
| 72735361 | MAHLE |
| MG362 | MAHLE |
| 20110349 | PRESTOLITE |
| 32025613 | SAAB |
| 32025614 | SAAB |
| 32025618 | SAAB |
| 4221826 | SAAB |
| 4231726 | SAAB |
| 4734018 | SAAB |
| 4739041 | SAAB |
| 5246871 | SAAB |
| 8548935 | SAAB |
| 8548943 | SAAB |
| 8549438 | SAAB |
| 8549446 | SAAB |
| 93184938 | SAAB |
| 93184939 | SAAB |
| 32025617 | SCANIA |
| ALTS975 | 3EFFE |
| PRAS975 | 3EFFE |
| CGB-82817 | AINDE |
| CAL10202AS | CASCO |
| 4962 | CEVAM |
| A-6295 | DIXIE |
| 56575 | EAI |
| ALT1556 | ELECTROLOG |
| ALT79247 | ELECTROLOG |
| 28-2817 | ELSTOCK |
| 209092 | ERA |
| CA1138IR | HC PARTS |
| 32039660 | HERTH+BUSS |
| ALB1138 | KRAUF |
| 301138RI | KUHNER |
| 441285 | LOGISTIK |
| LRB00349 | LUCAS |
| LRB349 | LUCAS |
| 89212586 | POWERMAX |
| 475.501.090 | PSH |
| 20101202BN | REAL |
| A12BH0899A2 | SIDAT |
| ALT122020 | SIOM |
| STX100537 | STARDAX |
| STX100621 | STARDAX |
| 13610N-6G2 | WAI / TRANSPO |
| 90-15-6271 | WILSON |
| 90-15-6271N | WILSON |
| ALT10114 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0429 | Pulley PV6/50 Pulley off set 63MM | Pulley PV6/58 Pulley off set 28MM | No |
| A1636 | 90A | 70A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SAAB | 900 | 2.0 (1985ccm) Petrol | B204I | D5 | 1993 - 1998 | ||
| SAAB | 900 | 2.0 (1985ccm) Petrol | B206I | D3 | 1993 - 1998 | ||
| SAAB | 900 | 2.0 (1985ccm) Petrol | B204L | D3 | 1993 - 1998 | ||
| SAAB | 900 | 2.0 (1985ccm) Petrol | B204L | DV | 1993 - 1998 | ||
| SAAB | 900 | 2.0 (1985ccm) Petrol | B206I | DV | 1993 - 1998 | ||
| SAAB | 900 | 2.0 (1985ccm) Petrol | B206I | D5 | 1993 - 1996 | ||
| SAAB | 900 | 2.0 (1985ccm) Petrol | B204L | D5 | 1993 - 1998 | ||
| SAAB | 900 | 2.0 (1985ccm) Petrol | B204I | D3 | 1994 - 1998 | ||
| SAAB | 900 | 2.3 (2290ccm) Petrol | B234I | D3 | 1993 - 1998 | ||
| SAAB | 900 | 2.3 (2290ccm) Petrol | B234I | DV | 1993 - 1998 | ||
| SAAB | 900 | 2.3 (2290ccm) Petrol | B234I | D5 | 1993 - 1998 | ||
| SAAB | 900 | 2.5 (2498ccm) Petrol | B258I | DV | 1993 - 1998 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204I | D3D/D5D | 1998 - 2000 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204I | D7D | 1998 - 2000 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204E | D7D | 1998 - 2000 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204R | D7D | 1998 - 2003 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204L/B205L | D3D/D3S/D5D/D5S | 1998 - 2000 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204E | D3D/YS3D | 1998 - 2000 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204R | D3D/D5D | 1998 - 2002 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204L/B205L | D7D/D7S | 1998 - 2003 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204E/B205E | D3D/D3S/D5D/D5S | 1999 - 2002 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B204E/B205E | D7D/D7S | 1999 - 2003 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B205R | D3D/D3S/D5D/D5S | 1999 - 2002 | ||
| SAAB | 9-Mar | 2.0 (1985ccm) Petrol | B205R | D7D/D7S | 1999 - 2003 | ||
| SAAB | 9-Mar | 2.3 (2290ccm) Petrol | B235R | D3D/D5D | 1998 - 2002 | ||
| SAAB | 9-Mar | 2.3 (2290ccm) Petrol | B234I | D7D | 1998 - 2000 | ||
| SAAB | 9-Mar | 2.3 (2290ccm) Petrol | B234I | D3D/D5D | 1998 - 2000 | ||
| SAAB | 9-Mar | 2.3 (2290ccm) Petrol | B235R | D7D | 1999 - 2003 | ||
| SAAB | 9-Mar | 2.3 (2290ccm) Petrol | B235R | D7D | 1999 - 2002 | ||
| SAAB | 9-May | 2.0 (1985ccm) Petrol | B205E | D4S | 1997 - 2000 | ||
| SAAB | 9-May | 2.0 (1985ccm) Petrol | B205E | D4S | 1998 - 2000 |
Description
B0349 Replacement Alternator
Start your B0349 alternator comparison with the linked Lucas reference LRB00349 and the specifications shown on this page. The listed electrical rating is 12V 90A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Saab 900 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 90A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 2 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Saab 900 2.0 Petrol – selected applications 1993–1998 (engine code B204I).
- Saab 9-Mar 2.0 Petrol – selected applications 1998–2000 (engine code B204I).
- Saab 9-May 2.0 Petrol – selected applications 1997–2000 (engine code B205E).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0349. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
123310041, 123320057, 123325007, 123335004, 123335005, 986039660, LRB00349, LRB349, 20110349, 72735361, MG362, 11.203.011, AAK5312
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0349 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0349 fit my Saab 900?
Saab 900 2.0 Petrol (1993–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0349 replace Lucas LRB00349?
Lucas LRB00349 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0349?
The listed details include 12V, 90A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0349 new or remanufactured?
Check the current product condition selection for B0349. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0349?
Compare 12V compatibility, 90A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
