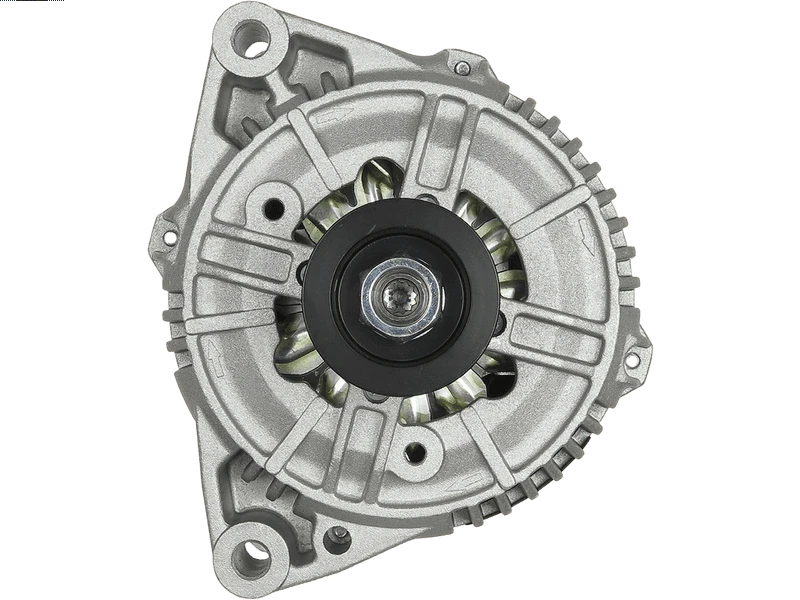

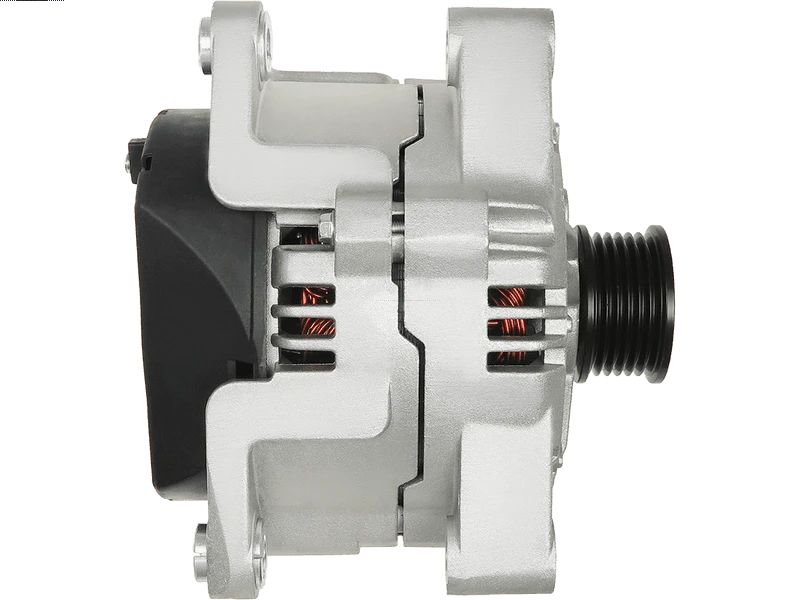

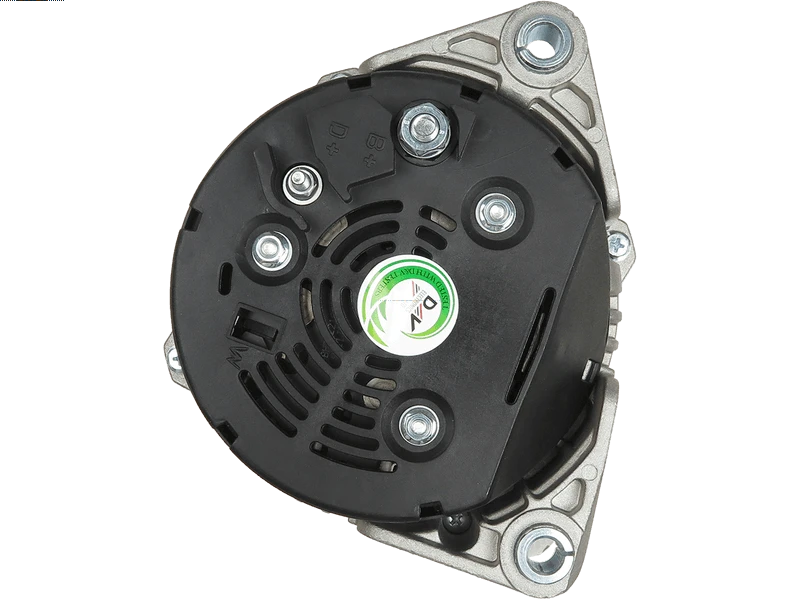

B0408 12V 100A Alternator Fits Vauxhall Astra, Vauxhall Frontera
Price range: £106.02 through £144.58
Compare the B0408 12V 100A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Vauxhall Astra, Vauxhall Frontera, Vauxhall Omega, Vauxhall Vectra models. Identification references include Lucas LRB00408, Bosch 123500008, Valeo 437216. Its listed 12V 100A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0408 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 100 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 50 mm |
| Mounting holes | 4 qty |
| Position | 60° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0408 | Dyno Electrics |
| 401721441 | Euro Car Part |
| A0413 | AS-PL |
| UD90018A | AS-PL |
| 123500008 | BOSCH |
| 986041330 | BOSCH |
| 113879 | CARGO |
| F032113879 | CARGO |
| 1516477R | DAF |
| 1516479R | DAF |
| DRB1330 | DELCO |
| 8EL011710-301 | HELLA |
| 8EL737501-001 | HELLA |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| 9133601 | OPEL |
| 10457917 | OPEL |
| 1204134 | OPEL |
| 24463064 | OPEL |
| 6204024 | OPEL |
| 6204037 | OPEL |
| 6204077 | OPEL |
| 6204157 | OPEL |
| 90506202 | OPEL |
| 90512217 | OPEL |
| 90540884 | OPEL |
| 90540919 | OPEL |
| 90561167 | OPEL |
| 90561168 | OPEL |
| 9117932 | OPEL |
| 9117934 | OPEL |
| 9192824 | OPEL |
| 93175802 | OPEL |
| 93175951 | OPEL |
| 93175952 | OPEL |
| 9512033 | OPEL |
| 9512788 | OPEL |
| 9512789 | OPEL |
| R1530040 | OPEL |
| 20110317 | PRESTOLITE |
| 437216 | VALEO |
| ALTL668 | 3EFFE |
| PRAL668 | 3EFFE |
| AI-90300 | AINDE |
| CGB-83535 | AINDE |
| ANM43550X | ANDEL |
| AEA4208 | AUTOELECTRO |
| STA0523R | BOVEZ |
| 4602 | CEVAM |
| 56546 | EAI |
| ALT1393 | ELECTROLOG |
| ALT1394 | ELECTROLOG |
| 28-3535 | ELSTOCK |
| 210041 | ERA |
| 9042750 | FRIESEN |
| CA1327IR | HC PARTS |
| CA1490IR | HC PARTS |
| 32042750 | HERTH+BUSS |
| ALB1327 | KRAUF |
| 301327RI | KUHNER |
| LRB00408 | LUCAS |
| LRB408 | LUCAS |
| 89212121 | POWERMAX |
| 9212121 | POWERMAX |
| 135.510.100 | PSH |
| ALT4860 | SIOM |
| STX100105 | STARDAX |
| STX100105R | STARDAX |
| STX100223 | STARDAX |
| STX100223R | STARDAX |
| STX100389 | STARDAX |
| STX100389R | STARDAX |
| STX100781 | STARDAX |
| AX 1109 | STARLINE |
| R1530014 | VAUXHALL |
| 20316N | WAI / TRANSPO |
| ALT10215 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0409 | 100A | 70A | No |
| A1748 | 100A | 120A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| OPEL | Astra | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | G | F35 | 1998 - 2000 | |
| OPEL | Astra | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | G | F08/F48 | 1998 - 2000 | |
| OPEL | Astra | 2.0 (1995ccm) Diesel | Y20DTH | G | F08/F48 | 1998 - 2005 | |
| OPEL | Astra | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | G | F69 | 1998 - 2000 | |
| OPEL | Astra | 2.0 (1995ccm) Diesel | Y20DTH | G | F69 | 1999 - 2005 | |
| OPEL | Astra | 2.0 (1995ccm) Diesel | Y20DTH | G | F35 | 2000 - 2004 | |
| OPEL | Astra Van | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | G | F70 | 1998 - 2000 | |
| OPEL | Astra Van | 2.0 (1995ccm) Diesel | Y20DTH | G | F70 | 2000 - 2005 | |
| OPEL | Frontera | 2.2 (2171ccm) Diesel | X22DTH/Y22DTH | B | 6B066/6B076/6B0VF/6B0ZC/6B166/6B176/6B1VF/6B1ZC | 1998 - 2003 | |
| OPEL | Frontera | 2.2 (2171ccm) Diesel | Y22DTH | B | 6B066/6B076/6B166/6B176 | 2002 - 2004 | |
| OPEL | Omega | 2.0 (1995ccm) Diesel | X20DTH | B | F35/M35/P35 | 1997 - 2000 | |
| OPEL | Omega | 2.0 (1995ccm) Diesel | X20DTH | B | F69/M69 | 1997 - 2000 | |
| OPEL | Vectra | 2.0 (1995ccm) Diesel | X20DTL | B | 36 | 1996 - 2000 | |
| OPEL | Vectra | 2.0 (1995ccm) Diesel | X20DTL | B | 38 | 1996 - 2000 | |
| OPEL | Vectra | 2.0 (1995ccm) Diesel | X20DTL | B | 31 | 1996 - 2000 | |
| OPEL | Vectra | 2.0 (1995ccm) Diesel | X20DTH/Y20DTH | B | 36 | 1997 - 2000 | |
| OPEL | Vectra | 2.0 (1995ccm) Diesel | X20DTH/Y20DTH | B | 38 | 1997 - 2000 | |
| OPEL | Vectra | 2.0 (1995ccm) Diesel | X20DTH/Y20DTH | B | 31 | 1997 - 2000 | |
| OPEL | Zafira | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | A | F75 | 1999 - 2000 | |
| OPEL | Zafira | 2.0 (1995ccm) Diesel | Y20DTH | A | F75 | 2000 - 2005 | |
| VAUXHALL | Astra | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | G | F48 | 1998 - 2005 | |
| VAUXHALL | Astra | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | G | F69 | 1998 - 2004 | |
| VAUXHALL | Astra | 2.0 (1995ccm) Diesel | X20DTL/Y20DTL | G | F35 | 1998 - 2002 | |
| VAUXHALL | Astra | 2.0 (1995ccm) Diesel | Y20DTH | G | F69 | 1999 - 2005 | |
| VAUXHALL | Astra | 2.0 (1995ccm) Diesel | Y20DTH | G | F48 | 2000 - 2005 | |
| VAUXHALL | Astra | 2.0 (1995ccm) Diesel | Y20DTH | G | F35 | 2000 - 2005 | |
| VAUXHALL | Frontera | 2.2 (2171ccm) Diesel | X22DTH/Y22DTH | B | 6B0ZC/6B1VF/6B1ZC | 1998 - 2000 | |
| VAUXHALL | Frontera | 2.2 (2171ccm) Diesel | Y22DTH | B | 6B066/6B076 | 2000 - 2004 | |
| VAUXHALL | Omega | 2.0 (1995ccm) Diesel | X20DTH | B | F35 | 1998 - 2001 | |
| VAUXHALL | Omega | 2.0 (1995ccm) Diesel | X20DTH | B | F69 | 1998 - 2001 | |
| VAUXHALL | Vectra | 2.0 (1995ccm) Diesel | X20DTH/Y20DTH | B | F19 | 1995 - 2001 | |
| VAUXHALL | Vectra | 2.0 (1995ccm) Diesel | X20DTH/Y20DTH | B | F35 | 1995 - 2001 | |
| VAUXHALL | Vectra | 2.0 (1995ccm) Diesel | X20DTL | B | F19 | 1996 - 2000 | |
| VAUXHALL | Vectra | 2.0 (1995ccm) Diesel | X20DTL | B | F68 | 1996 - 2000 | |
| VAUXHALL | Vectra | 2.0 (1995ccm) Diesel | X20DTL | B | F35 | 1996 - 2000 | |
| VAUXHALL | Vectra | 2.0 (1995ccm) Diesel | X20DTH/Y20DTH | B | F68 | 1997 - 2001 | |
| VAUXHALL | Zafira | 2.0 (1995ccm) Diesel | Y20DTH | A | F75 | 2000 - 2005 |
Description
B0408 Replacement Alternator
The Sahibs B0408 alternator is associated with Lucas reference LRB00408 for replacement identification. The listed electrical rating is 12V 100A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Vauxhall Astra 2.0 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 100A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 4 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Vauxhall Astra 2.0 Diesel – selected applications 1998–2005 (engine code X20DTL/Y20DTL).
- Vauxhall Frontera 2.2 Diesel – selected applications 1998–2000 (engine code X22DTH/Y22DTH).
- Vauxhall Omega 2.0 Diesel – selected applications 1998–2001 (engine code X20DTH).
- Vauxhall Vectra 2.0 Diesel – selected applications 1995–2001 (engine code X20DTH/Y20DTH).
- Vauxhall Zafira 2.0 Diesel – selected applications 2000–2005 (engine code Y20DTH).
- Opel Astra 2.0 Diesel – selected applications 1998–2000 (engine code X20DTL/Y20DTL).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0408. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
123500008, 986041330, 437216, LRB00408, LRB408, DRB1330, 20110317, 1516477R, 1516479R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0408 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0408 fit my Vauxhall Astra?
Vauxhall Astra 2.0 Diesel (1998–2005) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0408 replace Lucas LRB00408?
Lucas LRB00408 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0408?
The listed details include 12V, 100A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0408 new or remanufactured?
Check the current product condition selection for B0408. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0408?
Compare 12V compatibility, 100A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
