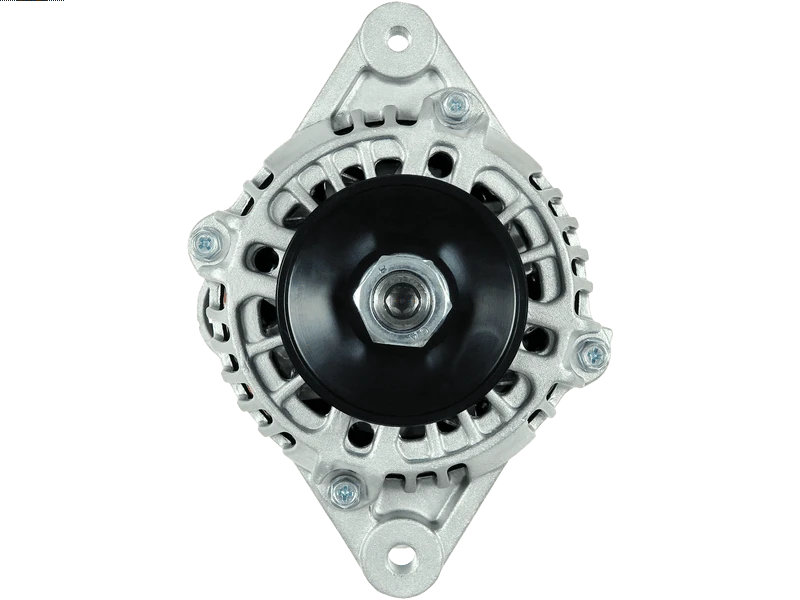

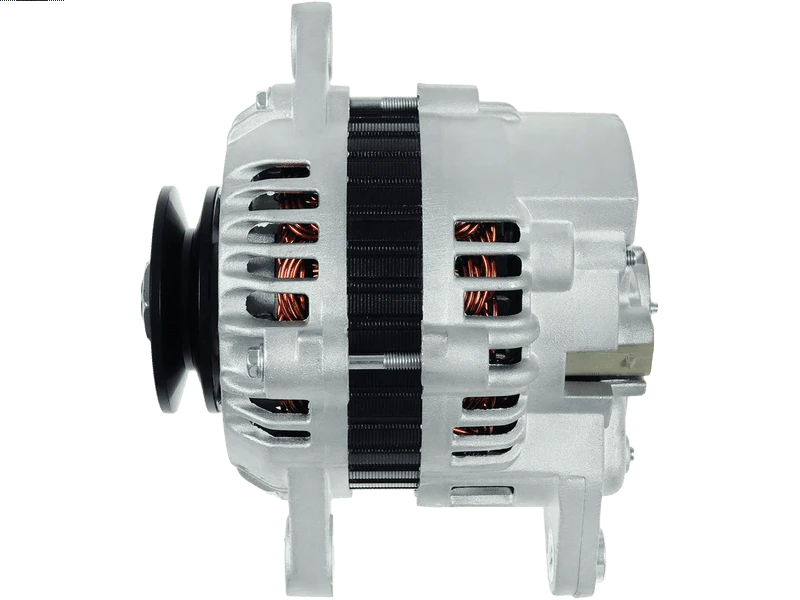

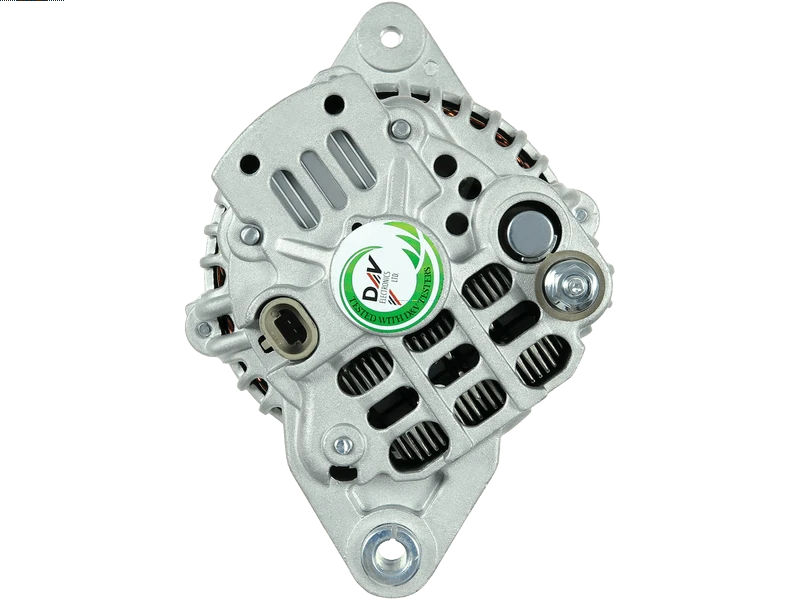

B0431 12V 65A Alternator Fits Chevrolet Matiz, Chevrolet Spark
Price range: £85.00 through £108.98
Sahibs B0431 is a replacement alternator with a listed 12V 65A rating. Listed applications include selected Chevrolet Matiz, Chevrolet Spark, Daewoo Matiz models. Identification references include Lucas LRB00431, Bosch 986049051, Valeo 200113. Its listed 12V 65A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0431 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 65 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 43 mm |
| Mounting holes | 3 qty |
| Position | 0° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.9 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0431 | Dyno Electrics |
| 401860061 | Euro Car Part |
| A9004 | AS-PL |
| 986049051 | BOSCH |
| 111847 | CARGO |
| 114114 | CARGO |
| F032111847 | CARGO |
| F032114114 | CARGO |
| 96289030 | CHEVROLET |
| 96566262 | CHEVROLET |
| 96567255 | CHEVROLET |
| 31400-A78B02 | DAEWOO |
| 219170 | DELCO |
| 219251 | DELCO |
| 96314258 | DELCO |
| 96380673 | DELCO |
| 96518124 | DELCO |
| 96566261 | DELCO |
| DA4934 | DELCO |
| DA4934N | DELCO |
| DRA3824 | DELCO |
| DRA3824N | DELCO |
| DRA3824X | DELCO |
| RAA14935 | DELCO |
| 8EL737917-001 | HELLA |
| 63532620010 | MAGNETI MARELLI |
| 63731600010 | MAGNETI MARELLI |
| 9.43E+11 | MAGNETI MARELLI |
| 9.44E+11 | MAGNETI MARELLI |
| MQA1600 | MAGNETI MARELLI |
| MRA60908 | MAGNETI MARELLI |
| AB165104 | MANDO |
| TA000A30601 | MANDO |
| TA000A52202 | MANDO |
| 9372008500 | MITSUBISHI |
| 20110431 | PRESTOLITE |
| 200113 | VALEO |
| 440122 | VALEO |
| 600001 | VALEO |
| ALTL084 | 3EFFE |
| PRAL084 | 3EFFE |
| AZMT-49-035-1243 | A.Z. MEISTERTEILE |
| AC-JBA1600 | ACAUTO |
| CGB-13034 | AINDE |
| ANM36044X | ANDEL |
| 99935 | ASAM AUTOMOTIVE |
| 002-Z460 | ASHIKA |
| L49050 | ATL AUTOTECHNIK |
| AEA4231 | AUTOELECTRO |
| ADA101 | AUTOTEAM |
| ADA101A | AUTOTEAM |
| ADG01119 | BLUE PRINT |
| BBA2123 | BORG & BECK |
| STA0131R | BOVEZ |
| CAL46101AS | CASCO |
| CAL46101GS | CASCO |
| CAL46101OS | CASCO |
| 9450 | CEVAM |
| CAR-821046 | COMLINE |
| 1245005 | CTR |
| A-35002 | DTS |
| 56938 | EAI |
| ALT00891 | ELECTROLOG |
| ALT2610 | ELECTROLOG |
| ALT8712 | ELECTROLOG |
| 28-3866 | ELSTOCK |
| 210208 | ERA |
| AG0267 | GHIBAUDI |
| GA165104MA-R | GPARTS |
| GA314258-A | GPARTS |
| GA314258DE-R | GPARTS |
| JA1600IR | HC PARTS |
| ALZ460 | JAPANPARTS |
| 2Z460 | JAPKO |
| ALD1600 | KRAUF |
| 401600RI | KUHNER |
| 401600RIR | KUHNER |
| 401600RIV | KUHNER |
| 446649 | LOGISTIK |
| LRB00431 | LUCAS |
| LRB431 | LUCAS |
| 55151062 | MEAT & DORIA |
| 235.502.065.030 | PSH |
| 235.502.065.038 | PSH |
| 235.502.065.360 | PSH |
| 235.502.065.390 | PSH |
| 235.502.065.415 | PSH |
| 20160101BN | REAL |
| 20160101OE | REAL |
| 20160101RE | REAL |
| RNL1600JA | RNL |
| 225-10124 | ROBERT'S |
| ALT390 | ROLLCO |
| 2046101 | SANDO |
| 2046101.1 | SANDO |
| 2046101.4 | SANDO |
| ALT7020 | SIOM |
| STX100039 | STARDAX |
| STX100039R | STARDAX |
| V51-13-60908 | VEMO |
| 21431N | WAI / TRANSPO |
| ALT35002 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2999 | Pulley 1GR/66 | Pulley PV3/64.5 | No |
| A3073 | 65A Pulley 1GR/66 Placing of terminals | 80A Pulley PV4/52 Placing of terminals | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHEVROLET | Matiz | 0.8 (796ccm) Petrol | LBF(49CUL3)/LQ2(49CUL3) | M200/M250 | 2005 - 2013 | ||
| CHEVROLET | Spark | 0.8 (796ccm) Petrol | LBF(49CUL3)/LQ2(49CUL3) | M200/M250 | 2005 - 2010 | ||
| DAEWOO | Matiz | 0.8 (796ccm) Petrol | F8CV | M100/M150 | 1998 - 2004 | ||
| DAEWOO | Matiz | 0.8 (796ccm) Petrol | F8CV | M150 | 2000 - 2004 | ||
| DAEWOO | Matiz | 1.0 (995ccm) Petrol | B10S | M150 | 2002 - 2004 | ||
| DAEWOO | Matiz | 1.0 (995ccm) Petrol | B10S | M150 | 2003 - 2004 |
Description
B0431 Replacement Alternator
Start your B0431 alternator comparison with the linked Lucas reference LRB00431 and the specifications shown on this page. The listed electrical rating is 12V 65A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Chevrolet Matiz 0.8 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 65A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Chevrolet Matiz 0.8 Petrol – selected applications 2005–2013 (engine code LBF(49CUL3)/LQ2(49CUL3)).
- Chevrolet Spark 0.8 Petrol – selected applications 2005–2010 (engine code LBF(49CUL3)/LQ2(49CUL3)).
- Daewoo Matiz 0.8 Petrol – selected applications 1998–2004 (engine code F8CV).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0431. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986049051, 200113, 440122, 600001, LRB00431, LRB431, 9372008500, 219170, 219251, 96314258, 96380673, 96518124, 96566261, DA4934, DA4934N, DRA3824, DRA3824N, DRA3824X, RAA14935, 20110431
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0431 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0431 fit my Chevrolet Matiz?
Chevrolet Matiz 0.8 Petrol (2005–2013) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0431 replace Lucas LRB00431?
Lucas LRB00431 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0431?
The listed details include 12V, 65A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is B0431 new or remanufactured?
Check the current product condition selection for B0431. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0431?
Compare 12V compatibility, 65A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
