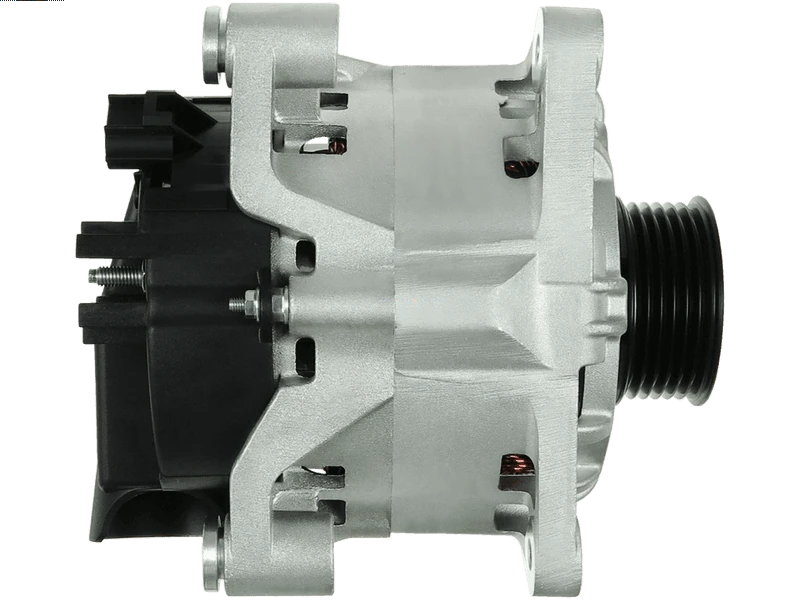

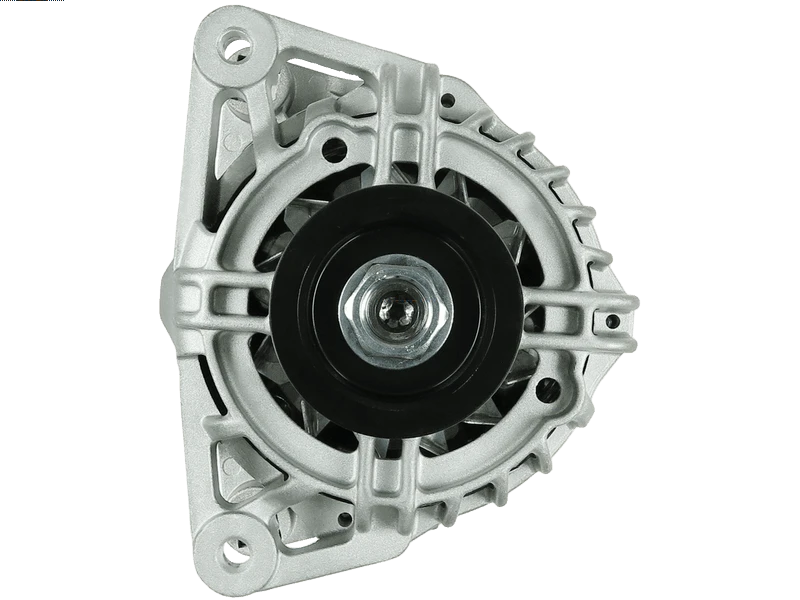

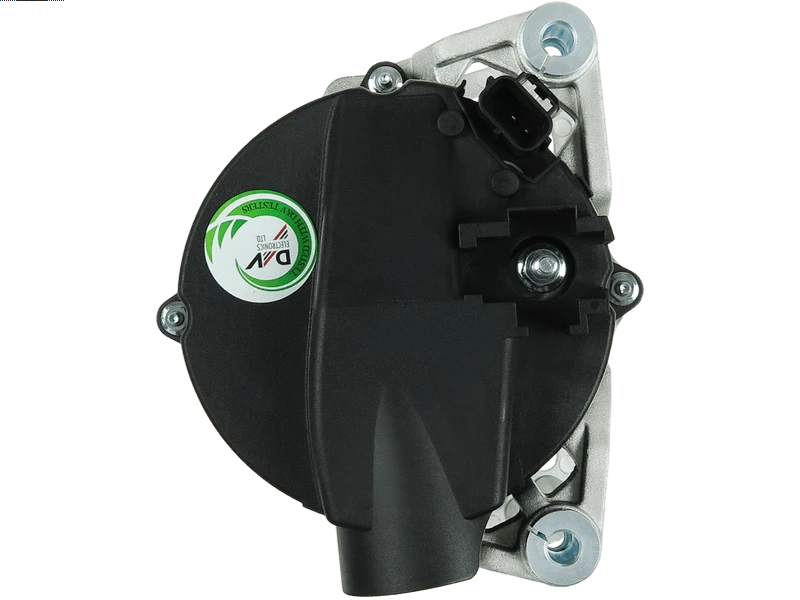

B0455 12V 80A Alternator Fits Ford Courier (Fiesta), Ford Fiesta
Price range: £80.08 through £107.19
Identify a replacement alternator using Sahibs B0455, listed at 12V 80A. Listed applications include selected Ford Courier (Fiesta), Ford Fiesta, Ford Fiesta Van models. Identification references include Lucas LRB00455, Delco Remy DRA4078, Prestolite 20110455. Its listed 12V 80A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0455 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 80 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 60 mm |
| Mounting holes | 4 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0455 | Dyno Electrics |
| 401591371 | Euro Car Part |
| 113599 | CARGO |
| F032113599 | CARGO |
| DRA4078 | DELCO |
| 1117829 | FORD |
| 1128296 | FORD |
| YS1610300CC | FORD |
| YS6110300CA | FORD |
| YS6110300CB | FORD |
| YS6110300CC | FORD |
| YS6110300DB | FORD |
| 8EL738141-001 | HELLA |
| 8EL738178-001 | HELLA |
| 63321758 | MAGNETI MARELLI |
| 63321778 | MAGNETI MARELLI |
| 63341758 | MAGNETI MARELLI |
| 63341778 | MAGNETI MARELLI |
| 20110455 | PRESTOLITE |
| BLD2301GH | PRESTOLITE |
| BLD2302 | PRESTOLITE |
| BLD2305GH | PRESTOLITE |
| BLD2307 | PRESTOLITE |
| BLD2308GH | PRESTOLITE |
| ALTF309 | 3EFFE |
| ALTS602 | 3EFFE |
| CGB-13394 | AINDE |
| ANM36298X | ANDEL |
| AEA4255 | AUTOELECTRO |
| STA0150R | BOVEZ |
| CAL30157AS | CASCO |
| CAL30157GS | CASCO |
| CAL30162AS | CASCO |
| CAL30162GS | CASCO |
| 4570 | CEVAM |
| 56970 | EAI |
| ALT90021 | ELECTROLOG |
| 28-4632 | ELSTOCK |
| 210270 | ERA |
| 210411 | ERA |
| 9090232 | FRIESEN |
| 9090464 | FRIESEN |
| CA1760IR | HC PARTS |
| CA1772IR | HC PARTS |
| 301760RI | KUHNER |
| 301760RIM | KUHNER |
| 301772RI | KUHNER |
| 301772RIM | KUHNER |
| 501108RI | KUHNER |
| 11.176 | LAUBER |
| 11.1760M | LAUBER |
| 11.1772 | LAUBER |
| LRB00455 | LUCAS |
| LRB455 | LUCAS |
| 89212498 | POWERMAX |
| 9212498 | POWERMAX |
| 9212968 | POWERMAX |
| 595.546.080 | PSH |
| 595.571.080 | PSH |
| 595.571.080.460 | PSH |
| 20104261BN | REAL |
| 20104261OE | REAL |
| 20104751BN | REAL |
| 2030157 | SANDO |
| 2030162 | SANDO |
| A12MA1248A2 | SIDAT |
| ALT321570 | SIOM |
| ALT321620 | SIOM |
| SA262 | SOVEREIGN |
| STX100494 | STARDAX |
| STX100515 | STARDAX |
| 21455N | WAI / TRANSPO |
| ALT4220 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A3299 | 80A Without Pulley | 90A With Pulley PV7/49 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FORD | Courier (Fiesta) | 1.8 (1753ccm) Diesel | RTN/RTP | MK IV | J3/J5 | 2000 - 2003 | |
| FORD | Fiesta | 1.8 (1753ccm) Diesel | RTN/RTP/RTQ | MK IV | JA/JB | 2000 - 2002 | |
| FORD | Fiesta Van | 1.8 (1753ccm) Diesel | RTN/RTP/RTQ | MK IV | JV | 2000 - 2003 |
Description
B0455 Replacement Alternator
Choose a replacement by comparing the B0455 alternator and its Lucas reference, LRB00455, with your existing unit. The listed electrical rating is 12V 80A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Ford Courier (Fiesta) 1.8 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 80A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 4 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Ford Courier (Fiesta) 1.8 Diesel – selected applications 2000–2003 (engine code RTN/RTP).
- Ford Fiesta 1.8 Diesel – selected applications 2000–2002 (engine code RTN/RTP/RTQ).
- Ford Fiesta Van 1.8 Diesel – selected applications 2000–2003 (engine code RTN/RTP/RTQ).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0455. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRB00455, LRB455, DRA4078, 20110455, BLD2301GH, BLD2302, BLD2305GH, BLD2307, BLD2308GH, 1117829, 1128296, YS1610300CC, YS6110300CA, YS6110300CB, YS6110300CC, YS6110300DB
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0455 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0455 fit my Ford Courier (Fiesta)?
Ford Courier (Fiesta) 1.8 Diesel (2000–2003) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0455 replace Lucas LRB00455?
Lucas LRB00455 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0455?
The listed details include 12V, 80A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0455 new or remanufactured?
Check the current product condition selection for B0455. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0455?
Compare 12V compatibility, 80A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
