B0507 12V 120A Alternator Fits Renault Espace, Renault Megane
Price range: £101.70 through £137.75
Identify a replacement alternator using Sahibs B0507, listed at 12V 120A. Listed applications include selected Renault Espace, Renault Megane, Renault Megane Classic, Renault Megane Coupe models. Identification references include Lucas LRB00507, Bosch 986043091, Valeo 2542466. Its listed 12V 120A rating provides an electrical matching point for your existing unit. Check the 6-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your B0507 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 120 A |
| Volt | 12 V |
| No. of Grooves | 6 qty |
| Pulley Diameter | 56 mm |
| Mounting holes | 3 qty |
| Position | 35° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYB0507 | Dyno Electrics |
| 401746951 | Euro Car Part |
| 986043091 | BOSCH |
| 112458 | CARGO |
| F032112458 | CARGO |
| DRA4039 | DELCO |
| 8EL011710-521 | HELLA |
| 8EL011710-631 | HELLA |
| 8EL737844-001 | HELLA |
| IA1416 | ISKRA / LETRIKA |
| MG 89 | MAHLE |
| 20130156 | PRESTOLITE |
| 7700430182 | RENAULT |
| 7700431942 | RENAULT |
| 7700431943 | RENAULT |
| 7701499972 | RENAULT |
| 7711134722 | RENAULT |
| 7711134754 | RENAULT |
| 8200054588 | RENAULT |
| 8200064685 | RENAULT |
| 8200107686 | RENAULT |
| 8200107687 | RENAULT |
| 2542466 | VALEO |
| 2542551 | VALEO |
| 437322 | VALEO |
| 439319 | VALEO |
| A13VI289 | VALEO |
| SG10B019 | VALEO |
| 8251648 | VOLVO |
| 8253611 | VOLVO |
| 8253813 | VOLVO |
| 8602556 | VOLVO |
| ALTL247 | 3EFFE |
| ALTL247NE | 3EFFE |
| ALTL247V | 3EFFE |
| PRAL247 | 3EFFE |
| PRAL247V | 3EFFE |
| CGB-13019 | AINDE |
| CGB-13091 | AINDE |
| ANM36259X | ANDEL |
| AEA5207 | AUTOELECTRO |
| STA0400R | BOVEZ |
| CAL15104AS | CASCO |
| CAL15104GS | CASCO |
| CAL15104OS | CASCO |
| 4022 | CEVAM |
| 56795 | EAI |
| ALT00346 | ELECTROLOG |
| ALT00449 | ELECTROLOG |
| 28-3702 | ELSTOCK |
| 28-3755 | ELSTOCK |
| 210053 | ERA |
| 9043091 | FRIESEN |
| GA439319-A | GPARTS |
| CA1572IR | HC PARTS |
| 32043091 | HERTH+BUSS |
| 301572RI | KUHNER |
| 301572RIV | KUHNER |
| 11.1572 | LAUBER |
| 441719 | LOGISTIK |
| LRA01891 | LUCAS |
| LRA1891 | LUCAS |
| LRB00507 | LUCAS |
| LRB507 | LUCAS |
| 89213601 | POWERMAX |
| 9213601 | POWERMAX |
| 575.558.120 | PSH |
| 20179401BN | REAL |
| 20179401OE | REAL |
| 20179401RE | REAL |
| 310907 | RHIAG |
| RNLSG10B019 | RNL |
| 2015104 | SANDO |
| 2015104.1 | SANDO |
| 2015104.4 | SANDO |
| A12VA1170A2 | SIDAT |
| ALT4775 | SIOM |
| SA500 | SOVEREIGN |
| SA569 | SOVEREIGN |
| SB064 | SOVEREIGN |
| SB176 | SOVEREIGN |
| STX100355 | STARDAX |
| STX100355R | STARDAX |
| STX100370 | STARDAX |
| STX100370R | STARDAX |
| STX101562 | STARDAX |
| STX101562R | STARDAX |
| STX101817 | STARDAX |
| AX 1022 | STARLINE |
| 20506N | WAI / TRANSPO |
| 23110R | WAI / TRANSPO |
| ALT10094 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A2009 | Clutch pulley PV6/56 | Pulley without clutch PV6/55 | No |
| A1891 | 120A Without W terminal | 120A With W terminal | Yes |
| A2110 | 120A Without W terminal | 80A With W terminal | No |
| A2012 | 120A Clutch pulley PV6/56 Without W terminal | 110A Pulley without clutch PV6/55 With W terminal | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| RENAULT | Espace | 1.9 (1870ccm) Diesel | F9Q722 | PHASE III | Monospace | JE0M | 1999 - 2001 |
| RENAULT | Megane | 1.9 (1870ccm) Diesel | F9Q732/F9Q733 | PHASE I | BA05/BA1F | 2000 - 2002 | |
| RENAULT | Megane | 1.9 (1870ccm) Diesel | F9Q744 | PHASE I | BA1U | 2001 - 2003 | |
| RENAULT | Megane Classic | 1.9 (1870ccm) Diesel | F9Q732/F9Q733 | PHASE I | LA05 | 1999 - 2003 | |
| RENAULT | Megane Classic | 1.9 (1870ccm) Diesel | F9Q730/F9Q738/F9Q744 | PHASE I | LA01/LA08/LA1U | 2000 - 2003 | |
| RENAULT | Megane Classic | 1.9 (1870ccm) Diesel | F9Q732/F9Q733 | PHASE I | LA05/LA1F | 2000 - 2002 | |
| RENAULT | Megane Coupe | 1.9 (1870ccm) Diesel | F9Q732/F9Q733 | PHASE I | DA05 | 1999 - 2003 | |
| RENAULT | Megane Coupe | 1.9 (1870ccm) Diesel | F9Q732/F9Q733 | PHASE I | DA05 | 2000 - 2002 | |
| RENAULT | Megane Estate/Break | 1.9 (1870ccm) Diesel | F9Q732/F9Q733 | PHASE I | Grandtour | KA05/KA1F | 2001 - 2002 |
| RENAULT | Scenic | 1.9 (1870ccm) Diesel | F9Q731/F9Q734/F9Q736 | PHASE I | Monospace | FA0N/JA0N | 1999 - 2001 |
| RENAULT | Scenic | 1.9 (1870ccm) Diesel | F9Q732/F9Q733 | PHASE I | Monospace | JA05/JA1F | 1999 - 2003 |
| RENAULT | Scenic | 1.9 (1870ccm) Diesel | F8Q788/F8Q790 | PHASE I | Monospace | JA0J | 1999 - 2001 |
| RENAULT | Scenic | 1.9 (1870ccm) Diesel | F9Q738/F9Q744 | PHASE I | Monospace | JA01/JA1U | 2000 - 2003 |
| VOLVO | S40 | 1.9 (1870ccm) Diesel | D4192T2 | I | 644 | 1996 - 2000 |
Description

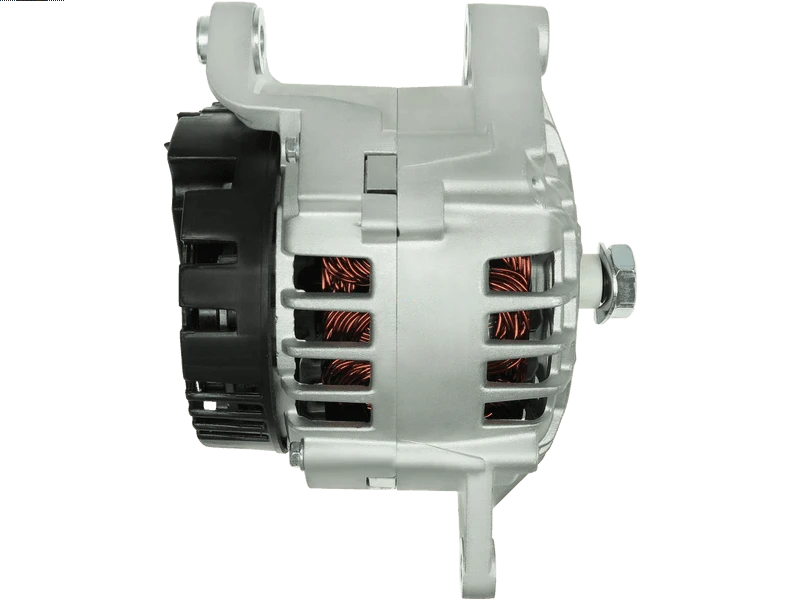

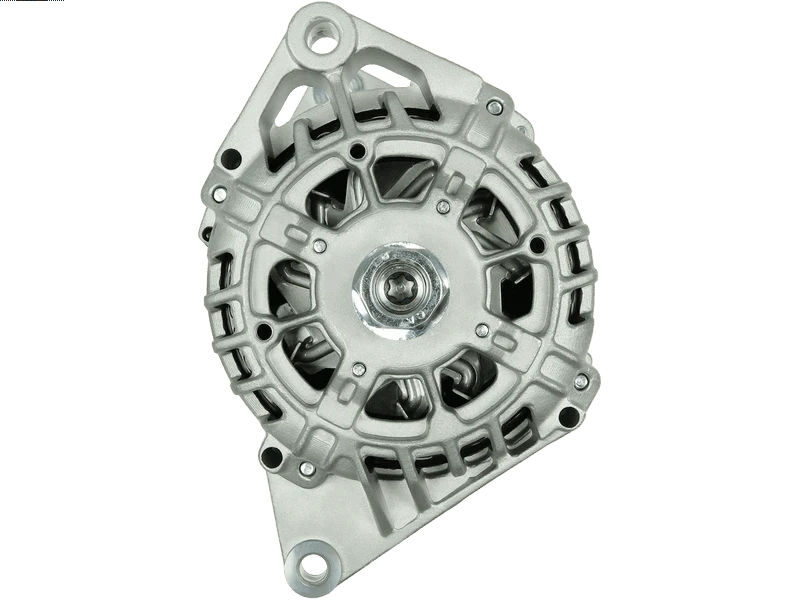

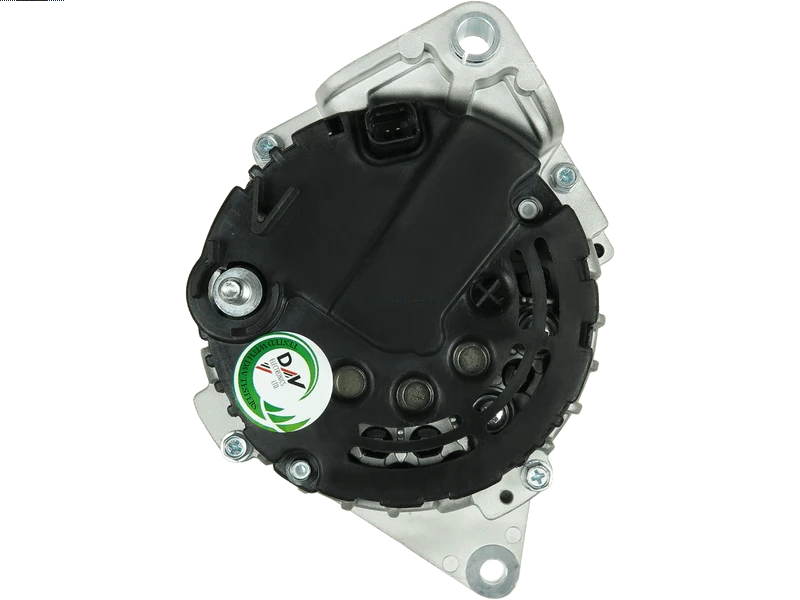

B0507 Replacement Alternator
The B0507 alternator is a replacement unit identified by Lucas reference LRB00507. The listed electrical rating is 12V 120A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Renault Espace 1.9 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 120A output: compare the listed rating with the original alternator.
- 6-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Renault Espace 1.9 Diesel – selected applications 1999–2001 (engine code F9Q722).
- Renault Megane 1.9 Diesel – selected applications 2000–2002 (engine code F9Q732/F9Q733).
- Renault Megane Classic 1.9 Diesel – selected applications 1999–2003 (engine code F9Q732/F9Q733).
- Renault Megane Coupe 1.9 Diesel – selected applications 1999–2003 (engine code F9Q732/F9Q733).
- Renault Megane Estate/Break 1.9 Diesel – selected applications 2001–2002 (engine code F9Q732/F9Q733).
- Renault Scenic 1.9 Diesel – selected applications 1999–2001 (engine code F9Q731/F9Q734/F9Q736).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with B0507. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986043091, 2542466, 2542551, 437322, 439319, A13VI289, SG10B019, LRB00507, LRA01891, LRA1891, LRB507, DRA4039, 20130156, MG 89, IA1416, 7700430182, 7700431942, 7700431943, 7701499972, 7711134722, 7711134754, 8200054588, 8200064685, 8200107686, 8200107687
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying B0507 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will B0507 fit my Renault Espace?
Renault Espace 1.9 Diesel (1999–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does B0507 replace Lucas LRB00507?
Lucas LRB00507 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for B0507?
The listed details include 12V, 120A output, 6 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is B0507 new or remanufactured?
Check the current product condition selection for B0507. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering B0507?
Compare 12V compatibility, 120A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
