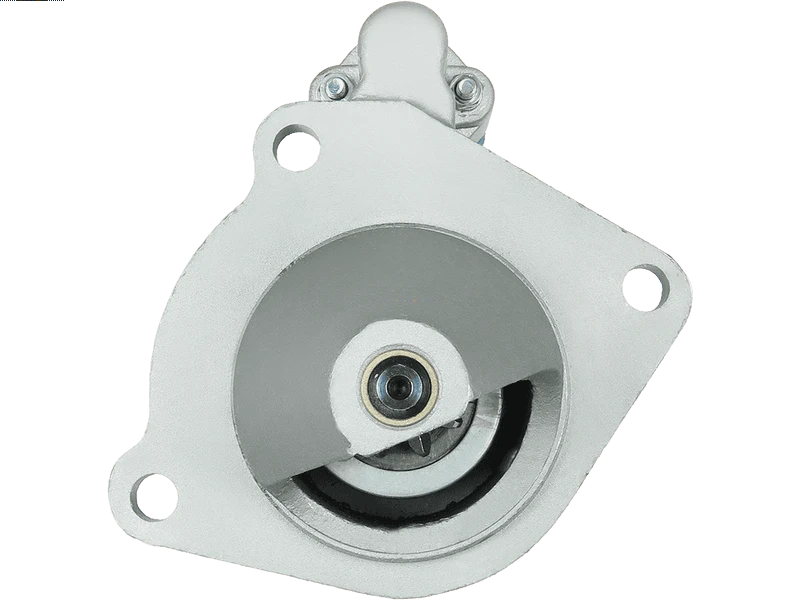

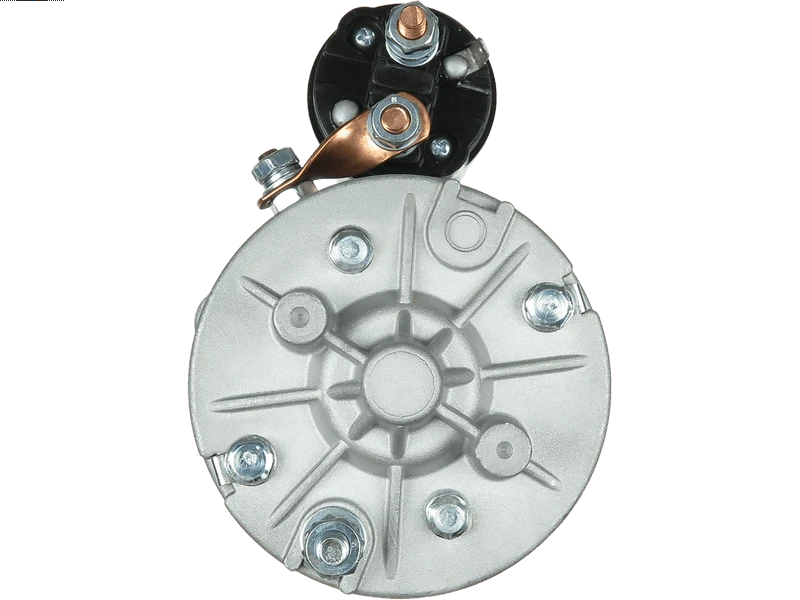

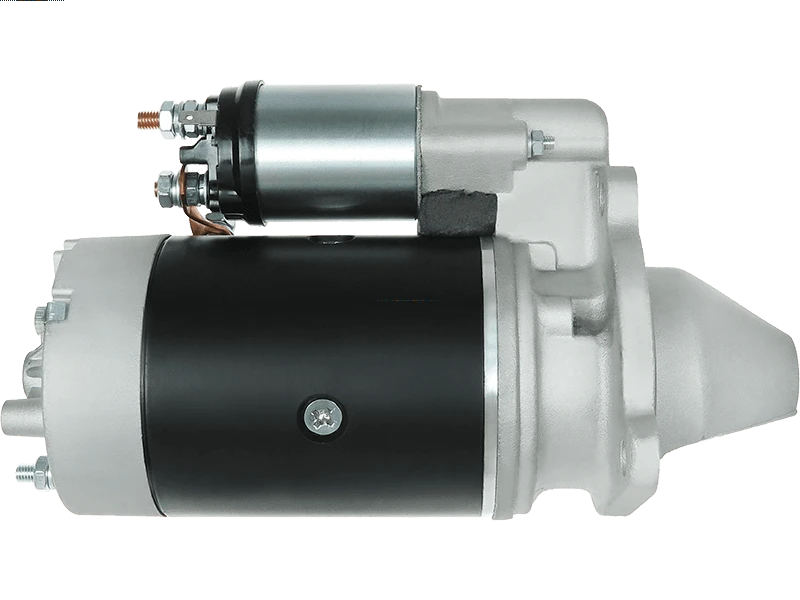

S0574 12V 2.1kW Starter Motor Fits Land Rover 110
Price range: £143.75 through £172.33
Sahibs S0574 is a replacement starter motor with a listed 12V 2.1kW rating. Listed applications include selected Land Rover 110, Land Rover Discovery models. Identification references include Lucas LRS00574, Bosch 9000331412, Denso 028000-4001. Its listed 12V 2.1kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0574 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.1 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 6.35 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0574 | Dyno Electrics |
| 402670051 | Euro Car Part |
| S4009 | AS-PL |
| UD12409S | AS-PL |
| 9000331412 | BOSCH |
| 9000331425 | BOSCH |
| 9004475107 | BOSCH |
| 110441 | CARGO |
| F032110441 | CARGO |
| DRS3593 | DELCO |
| 028000-4001 | DENSO |
| 8EA012528-191 | HELLA |
| 63227460 | MAGNETI MARELLI |
| 20500574 | PRESTOLITE |
| PRC3032 | ROVER |
| RTC5249 | ROVER |
| RTC5249E | ROVER |
| PRSS086 | 3EFFE |
| STRS086 | 3EFFE |
| ANM15813X | ANDEL |
| AES5174 | AUTOELECTRO |
| CST25117AS | CASCO |
| CST25117GS | CASCO |
| 3619 | CEVAM |
| STR4203 | ELECTROLOG |
| 220469 | ERA |
| SG0144 | GHIBAUDI |
| CS590 | HC PARTS |
| 10590 | KUHNER |
| 22.059 | LAUBER |
| 331835 | LOGISTIK |
| 25024044 | LUCAS |
| 25024044A | LUCAS |
| 26256 | LUCAS |
| 26256D | LUCAS |
| 26256E | LUCAS |
| 26321A | LUCAS |
| 26925200A | LUCAS |
| 27425 | LUCAS |
| 27425A | LUCAS |
| 27425B | LUCAS |
| 27460 | LUCAS |
| 27460A | LUCAS |
| 27460B | LUCAS |
| LRS00574 | LUCAS |
| LRS574 | LUCAS |
| NSB512 | LUCAS |
| 20405711BN | REAL |
| 20405711OE | REAL |
| 6025117 | SANDO |
| 6025117.1 | SANDO |
| MAV3760 | SIOM |
| SS652 | SOVEREIGN |
| SS662 | SOVEREIGN |
| 33089N | WAI / TRANSPO |
| UNIT BOM 120-5084 | WAI / TRANSPO |
| STR56004 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S2088 | 2.1KW Conventionel Lucas | 3.1KW G/R Valeo | No |
| S0728 | 2.1KW Conventionel Lucas | 2.2KW G/R Bosch | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| LAND ROVER | 110 | 2.5 (2495ccm) Diesel | 19J | MK I | Wagon Cabine | LDH | 1986 - 1990 |
| LAND ROVER | Discovery | 2.5 (2495ccm) Diesel | 12L/17L/21L | MK I | Commercial | LJG | 1989 - 1998 |
Description
S0574 Replacement Starter Motor
For a S0574 starter motor enquiry, use Lucas reference LRS00574 alongside the vehicle and original unit details. The listed electrical rating is 12V 2.1kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Land Rover 110 2.5 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.1kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Land Rover 110 2.5 Diesel – selected applications 1986–1990 (engine code 19J).
- Land Rover Discovery 2.5 Diesel – selected applications 1989–1998 (engine code 12L/17L/21L).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0574. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
9000331412, 9000331425, 9004475107, 028000-4001, LRS00574, 25024044, 25024044A, 26256, 26256D, 26256E, 26321A, 26925200A, 27425, 27425A, 27425B, 27460, 27460A, 27460B, LRS574, NSB512, DRS3593, 20500574, PRC3032, RTC5249, RTC5249E
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0574 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0574 fit my Land Rover 110?
Land Rover 110 2.5 Diesel (1986–1990) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0574 replace Lucas LRS00574?
Lucas LRS00574 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0574?
The listed details include 12V, 2.1kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0574 new or remanufactured?
Check the current product condition selection for S0574. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0574?
Compare 12V compatibility, 2.1kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
