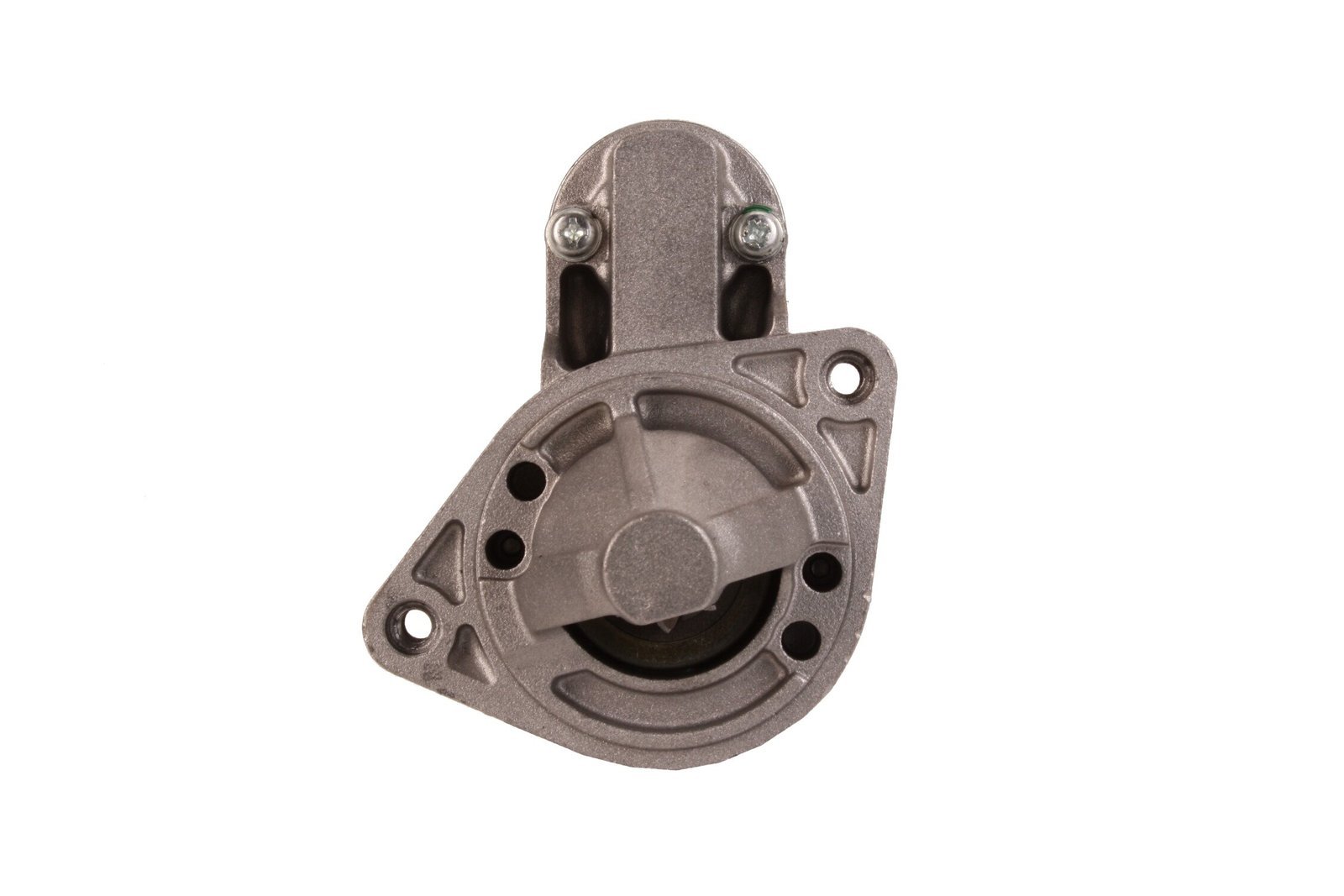

S0722 12V 0.8kW Starter Motor Fits Suzuki Baleno, Suzuki Cultus
Price range: £84.93 through £98.98
Identify a replacement starter motor using Sahibs S0722, listed at 12V 0.8kW. Listed applications include selected Suzuki Baleno, Suzuki Baleno Estate/Wagon, Suzuki Cultus, Suzuki SA310 models. Identification references include Lucas LRS00722, Bosch F042001075, Valeo 438459. Its listed 12V 0.8kW rating provides an electrical matching point for your existing unit. Check the 8-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0722 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 0.8 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 8 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.1 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0722 | Dyno Electrics |
| 402810081 | Euro Car Part |
| 28000990 | Denso |
| 280009900 | Denso |
| 280009901 | Denso |
| 280009902 | Denso |
| 280009903 | Denso |
| 986014371 | Bosch Exchange |
| 986016450 | Bosch Exchange |
| 0986UR1244 | Bosch Exchange |
| 111310 | HC-Cargo |
| 1280000600 | Denso |
| 128000621 | Denso |
| 1280006213 | Denso |
| 16971N | WAI |
| 16971R | WAI |
| 180003082 | PSH |
| 20500722 | Prestolite |
| 21549MI | WAI |
| 2280004640 | Denso |
| 2280004641 | Denso |
| 2280004642 | Denso |
| 2280004643 | Denso |
| 2280005480 | Denso |
| 2280005481 | Denso |
| 2280005482 | Denso |
| 2280005483 | Denso |
| 2280007160 | Denso |
| 2280007161 | Denso |
| 2280007162 | Denso |
| 2280007163 | Denso |
| 2280009060 | Denso |
| 2280009061 | Denso |
| 2280009062 | Denso |
| 2280009063 | Denso |
| 26254680A | Lucas |
| 26925159 | Lucas |
| 26925159A | Lucas |
| 26925159B | Lucas |
| 3100082631 | Suzuki |
| 3110060851 | Suzuki |
| 3110060B50 | Suzuki |
| 3110060B50000 | Suzuki |
| 3110060B51 | Suzuki |
| 3110060B51000 | Suzuki |
| 3110060G10 | Suzuki |
| 3110060G10000 | Suzuki |
| 3110060G11 | Suzuki |
| 3110060G11000 | Suzuki |
| 3110062011 | Suzuki |
| 3110062030 | Suzuki |
| 3110064G00 | Suzuki |
| 3110064G00000 | Suzuki |
| 3110069G00 | Suzuki |
| 3110070B22 | Suzuki |
| 3110070F00 | Suzuki |
| 3110079F00 | Suzuki |
| 3110079F00000 | Suzuki |
| 3.11E+06 | Suzuki |
| 3.11E+16 | Suzuki |
| 3110080E10000 | Suzuki |
| 3110082010 | Suzuki |
| 3110082011 | Suzuki |
| 3110082016 | Suzuki |
| 3110082030 | Suzuki |
| 3110082031 | Suzuki |
| 31100820D0 | Suzuki |
| 31100820D1 | Hyundai |
| 3110082130 | Suzuki |
| 3110082230 | Suzuki |
| 3110082330 | Suzuki |
| 3110082610 | Hyundai |
| 3110082611 | Suzuki |
| 3110082612 | Suzuki |
| 3110082631 | Suzuki |
| 31100826A | Suzuki |
| 31100826A0 | Suzuki |
| 31100826A1 | Suzuki |
| 31100826D2 | Suzuki |
| 3110086130 | Suzuki |
| 3110092330 | Suzuki |
| 31100M70F00 | Suzuki |
| 31100M79F00 | Suzuki |
| 31100M79F00000 | Suzuki |
| 31100M82011 | Suzuki |
| 31100M82012 | Suzuki |
| 31100M82013 | Suzuki |
| 31100M82013000 | Suzuki |
| 31100M82020 | Suzuki |
| 31100M82021 | Suzuki |
| 3110682010 | Suzuki |
| 438459 | Valeo |
| 458319 | Valeo |
| 512JSRF | RNL |
| 63103019 | Magneti Marelli |
| 63103019010 | Magneti Marelli |
| 632200 | Valeo |
| 91273201 | Wilson |
| 91273201N | Wilson |
| 91295172 | Wilson |
| AZS212 | ATK |
| AZS258 | ATK |
| BXM026N | Bosch (USA) |
| DRS3043 | Delco Remy |
| DRS3745 | Delco Remy |
| F032111310 | HC-Cargo |
| F042001075 | Bosch |
| F042001140 | Bosch |
| LRS00722 | Lucas |
| LRS722 | Lucas |
| M000T84781 | Mitsubishi |
| M002T30381 | Mitsubishi |
| M002T30385 | Mitsubishi |
| M002T41381 | Mitsubishi |
| M002T46081 | Mitsubishi |
| M002T46081ZE | Mitsubishi |
| M003T33781 | Mitsubishi |
| M003T33781ZC | Mitsubishi |
| M003T33785 | Mitsubishi |
| M003t41881 | Mitsubishi |
| M003T41885 | Mitsubishi |
| M003T44281 | Mitsubishi |
| M0T84781 | Mitsubishi |
| M2T30381 | Mitsubishi |
| M2T30385 | Mitsubishi |
| M2T41381 | Mitsubishi |
| M2T46081 | Mitsubishi |
| M2T46081ZE | Mitsubishi |
| M3T33781 | Mitsubishi |
| M3T33781ZC | Mitsubishi |
| M3T33785 | Mitsubishi |
| M3T41881 | Mitsubishi |
| M3T41885 | Mitsubishi |
| M3T44281 | Mitsubishi |
| MSR1102 | Magneti Marelli |
| OSM11198 | Optimum |
| S23757 | Hitachi |
| SR2280004640 | Denso |
| SR2280004641 | Denso |
| SR395X | Bosch (USA) |
| SR4505X | Bosch (USA) |
| STR3585 | Unipoint |
| STR71015 | Wood Auto |
| TRS022 | TWA |
| WOOSTR71015 | Wood Auto |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1311 | Yoke O.D.90MM | Yoke O.D.82MM | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| SUZUKI | Baleno | 1.3 (1298ccm) Petrol | G13BA | SY413GA11H | 1995 - 1998 | ||
| SUZUKI | Baleno | 1.3 (1298ccm) Petrol | G13BB | SY413GC11S | 1995 - 2002 | ||
| SUZUKI | Baleno | 1.3 (1298ccm) Petrol | G13BA | SY413GC11S | 1995 - 1998 | ||
| SUZUKI | Baleno | 1.3 (1298ccm) Petrol | G13BB | SY413GA11H | 1995 - 2002 | ||
| SUZUKI | Baleno | 1.6 (1590ccm) Petrol | G16B | SY416GA31H | 1995 - 2002 | ||
| SUZUKI | Baleno | 1.6 (1590ccm) Petrol | G16B | AWD | SY416GB31H | 1995 - 2002 | |
| SUZUKI | Baleno | 1.6 (1590ccm) Petrol | G16B | SY416GC31S | 1995 - 2002 | ||
| SUZUKI | Baleno | 1.6 (1590ccm) Petrol | G16B | AWD | SY416GD31S | 1995 - 2002 | |
| SUZUKI | Baleno Estate/Wagon | 1.3 (1298ccm) Petrol | G13BB | SY413GC11W | 1997 - 2002 | ||
| SUZUKI | Baleno Estate/Wagon | 1.3 (1298ccm) Petrol | G13BB | SY413GC11W | 1999 - 2001 | ||
| SUZUKI | Baleno Estate/Wagon | 1.6 (1590ccm) Petrol | G16B | SY416GC31W | 1996 - 1999 | ||
| SUZUKI | Baleno Estate/Wagon | 1.6 (1590ccm) Petrol | G16B | AWD | SY416GD31W | 1996 - 2002 | |
| SUZUKI | Baleno Estate/Wagon | 1.6 (1590ccm) Petrol | G16B | SY416GC31W | 1996 - 2002 | ||
| SUZUKI | Cultus | 1.0 (993ccm) Petrol | G10 | SA310AA41F/SA310AA41S | 1983 - 1988 | ||
| SUZUKI | Cultus | 1.0 (993ccm) Petrol | G10A | SF310AA44/SF310MAB44 | 1996 - 2003 | ||
| SUZUKI | SA310 | 1.0 (993ccm) Petrol | G10 | SA310AA41S | 1983 - 1986 | ||
| SUZUKI | Swift | 1.0 (993ccm) Petrol | G10 | MK I | SA310AA41F/SA310AA41S/SA310AA43F/SA310AA43S | 1984 - 1989 | |
| SUZUKI | Swift | 1.0 (993ccm) Petrol | G10B | MK I | SA310AF41F | 1984 - 1989 | |
| SUZUKI | Swift | 1.0 (993ccm) Petrol | G10A | MK II | SF310 | 1992 - 2003 | |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13BA | MK II | SF413 | 1989 - 2001 | |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13B | MK II | SF413 | 1989 - 1995 | |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13BA | MK II | AWD | SF413 | 1989 - 2001 |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13BA | MK II | SF413 | 1989 - 1991 | |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13BA | MK II | AWD | SF413 | 1989 - 1991 |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13BA | MK II | SF413 | 1990 - 1997 | |
| SUZUKI | Swift | 1.3 (1298ccm) Petrol | G13BA | MK II | SF413 | 1991 - 1996 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA53F/SA413AA53S | 1984 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA51F/SA413AA51S | 1984 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK I | SA413AA53S | 1986 - 1989 | |
| SUZUKI | Swift | 1.3 (1324ccm) Petrol | G13A | MK II | SF413 | 1989 - 1991 | |
| SUZUKI | Swift | 1.6 (1590ccm) Petrol | G16B | MK II | SF416 | 1989 - 1991 | |
| SUZUKI | Swift | 1.6 (1590ccm) Petrol | G16B | MK II | AWD | SF416 | 1989 - 1995 |
| SUZUKI | Swift | 1.6 (1590ccm) Petrol | G16B | MK II | AWD | SF416 | 1989 - 1991 |
| SUZUKI | Swift | 1.6 (1590ccm) Petrol | G16B | MK II | AWD | SF416 | 1990 - 1995 |
| SUZUKI | Swift | 1.6 (1590ccm) Petrol | G16B | MK II | SF416 | 1990 - 1995 | |
| SUZUKI | Wagon R | 1.3 (1298ccm) Petrol | G13BB | RB413 | 1999 - 2003 | ||
| SUZUKI | Wagon R | 1.3 (1298ccm) Petrol | G13BB | AWD | RB413 | 2001 - 2003 | |
| SUZUKI | Wagon R+ | 1.3 (1298ccm) Petrol | G13BB | AWD | RB413 | 2001 - 2003 |
Description
S0722 Replacement Starter Motor
The S0722 starter motor is a replacement unit identified by Lucas reference LRS00722. The listed electrical rating is 12V 0.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Suzuki Baleno 1.3 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 0.8kW power: compare the listed rating with the original starter motor.
- 8-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Suzuki Baleno 1.3 Petrol – selected applications 1995–1998 (engine code G13BA).
- Suzuki Baleno Estate/Wagon 1.3 Petrol – selected applications 1997–2002 (engine code G13BB).
- Suzuki Cultus 1.0 Petrol – selected applications 1983–1988 (engine code G10).
- Suzuki SA310 1.0 Petrol – selected applications 1983–1986 (engine code G10).
- Suzuki Swift 1.0 Petrol – selected applications 1984–1989 (engine code G10).
- Suzuki Wagon R 1.3 Petrol – selected applications 1999–2003 (engine code G13BB).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0722. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986014371, 986016450, 0986UR1244, F042001075, F042001140, 438459, 458319, 632200, 28000990, 280009900, 280009901, 280009902, 280009903, 1280000600, 128000621, 1280006213, 2280004640, 2280004641, 2280004642, 2280004643, 2280005480, 2280005481, 2280005482, 2280005483, 2280007160, 2280007161, 2280007162, 2280007163, 2280009060, 2280009061, 2280009062, 2280009063, SR2280004640, SR2280004641, LRS00722, 26254680A, 26925159, 26925159A, 26925159B, LRS722, M000T84781, M002T30381, M002T30385, M002T41381, M002T46081, M002T46081ZE, M003T33781, M003T33781ZC, M003T33785, M003t41881, M003T41885, M003T44281, M0T84781, M2T30381, M2T30385, M2T41381, M2T46081, M2T46081ZE, M3T33781, M3T33781ZC, M3T33785, M3T41881, M3T41885, M3T44281, S23757, DRS3043, DRS3745, 20500722
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0722 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0722 fit my Suzuki Baleno?
Suzuki Baleno 1.3 Petrol (1995–1998) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0722 replace Lucas LRS00722?
Lucas LRS00722 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0722?
The listed details include 12V, 0.8kW power, 8 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0722 new or remanufactured?
Check the current product condition selection for S0722. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0722?
Compare 12V compatibility, 0.8kW power, 8 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
