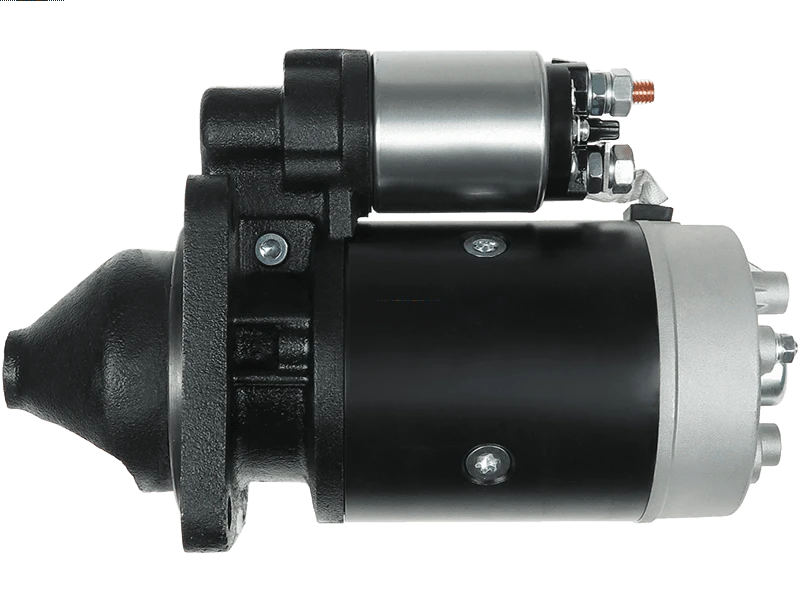

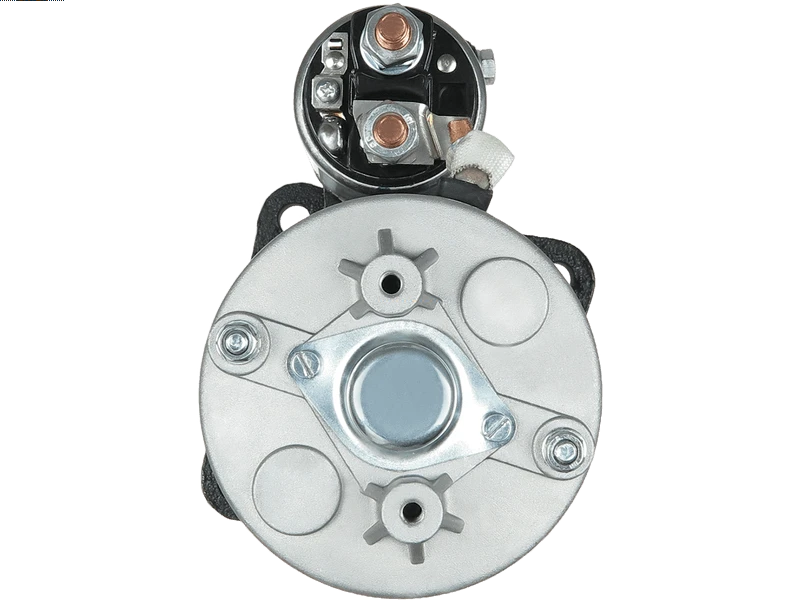

S0838 12V 2.5kW Starter Motor Fits Iveco Daily 35.10
Price range: £135.04 through £159.34
Sahibs S0838 is a replacement starter motor with a listed 12V 2.5kW rating. Listed applications include selected Iveco Daily 35.10, Iveco Daily 35.12, Iveco Daily 40.10, Iveco Daily 45.10 models. Identification references include Lucas LRS00838, Bosch 1362031, Delco Remy DRS1060. Its listed 12V 2.5kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S0838 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.5 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 10.42 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS0838 | Dyno Electrics |
| 402920011 | Euro Car Part |
| UD16575S | AS-PL |
| 1362031 | BOSCH |
| 1362062 | BOSCH |
| 110814 | CARGO |
| F032110814 | CARGO |
| 1516714R | DAF |
| DRS1060 | DELCO |
| 42498138 | FIAT |
| 42498149 | FIAT |
| 42498505 | FIAT |
| 42498506 | FIAT |
| 4711699 | FIAT |
| 4719664 | FIAT |
| 4745930 | FIAT |
| 4807374 | FIAT |
| 4856055 | FIAT |
| 4856056 | FIAT |
| 4919664 | FIAT |
| 77028560 | FIAT |
| 4719664 | KHD |
| 63217148010 | MAGNETI MARELLI |
| 63217410010 | MAGNETI MARELLI |
| 63217148 | MAGNETI MARELLI |
| 63217410 | MAGNETI MARELLI |
| 9.43202E+11 | MAGNETI MARELLI |
| MSN229 | MAGNETI MARELLI |
| MSN242 | MAGNETI MARELLI |
| MSRC230 | MAGNETI MARELLI |
| MT71D | MAGNETI MARELLI |
| MT71DA | MAGNETI MARELLI |
| MT71DB | MAGNETI MARELLI |
| MT74L | MAGNETI MARELLI |
| MS187 | MAHLE |
| PRSL035 | 3EFFE |
| STRL035 | 3EFFE |
| CGB-50340 | AINDE |
| CST10363AS | CASCO |
| CST30103GS | CASCO |
| CST30103OS | CASCO |
| 3603 | CEVAM |
| 11437 | EAI |
| 14660 | EFEL |
| STR1335 | ELECTROLOG |
| STR79017 | ELECTROLOG |
| 25-0340 | ELSTOCK |
| 220016 | ERA |
| STB0230 | KRAUF |
| 10230B | KUHNER |
| 10230M | KUHNER |
| LRS00838 | LUCAS |
| LRS838 | LUCAS |
| 88212955 | POWERMAX |
| 500.011.093.010 | PSH |
| 20401363BN | REAL |
| 20404301OE | REAL |
| 20404301RE | REAL |
| 6010363 | SANDO |
| 6030103.1 | SANDO |
| 6030103.4 | SANDO |
| S12BH0461A2 | SIDAT |
| STX200398 | STARDAX |
| STX200398R | STARDAX |
| STX200984 | STARDAX |
| STX200984R | STARDAX |
| 18461N | WAI / TRANSPO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| T0138 | Direc drive type | Gear reduction type | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| IVECO | Daily 35.10 | 2.4 (2445ccm) Diesel | 814021 | S-CAB/SHIELD | 10310311/10311111/10311112/10311211/10311212/10311217/10311304/10311311/10311312/10311317/10316211 | 1978 - 1989 | |
| IVECO | Daily 35.10 | 2.4 (2445ccm) Diesel | 814021 | VAN | 10314204/10314211/10314212/10314217/10314411/10314412/10314417 | 1978 - 1989 | |
| IVECO | Daily 35.10 | 2.5 (2499ccm) Diesel | 814047R | COMBI/VAN | 13814212/13814217/13814412/13814417/13815212/13817212/15534211/15534212/15534217/15534411/15534417/15535212 | 1989 - 1998 | |
| IVECO | Daily 35.10 | 2.5 (2499ccm) Diesel | 814047R | S-CAB/SHIELD | 13810217/13810312/13810417/13811112/13811212/13811217/13811312/13811317/13816112/13816212/13816217/15531311/15531317 | 1989 - 1996 | |
| IVECO | Daily 40.10 | 2.5 (2499ccm) Diesel | 814027S | COMBI/VAN | 13214104/13214111/13214112/13214115/13214117/13214124/13214131/13214137/13215111/13215112/13215117/13215131/13215137 | 1990 - 1996 | |
| IVECO | Daily 45.10 | 2.5 (2499ccm) Diesel | 814027S | S-CAB | 13031204/13031212/13031224/13031231/13031304/13031312/13031324/13031331 | 1990 - 1996 | |
| IVECO | Daily 45.10 | 2.5 (2499ccm) Diesel | 814027S | VAN | 13034204/13034212/13034224/13034231/13034404/13034412/13034424/13034431 | 1990 - 1996 | |
| IVECO | Daily 49.10 | 2.5 (2499ccm) Diesel | 814027S | VAN | 13054204/13054211/13054212/13054215/13054217/13054224/13054231/13054235/13054237/13054404/13054411/13054412/13054417/13054424/13054431/13054437 | 1989 - 1996 | |
| IVECO | Daily 49.12 | 2.5 (2499ccm) Diesel | 814047/814047S | VAN | 13134124/13134204/13134211/13134212/13134217/13134224/13134231/13134235/13134237/13134404/13134411/13134412/13134417/13134424/13134431/13134435/13134437 | 1990 - 1996 | |
| IVECO | Daily 59.12 | 2.5 (2499ccm) Diesel | 814047/814047S | VAN | 13154404/13154411/13154412/13154417/13154424/13154431/13154435/13154437 | 1990 - 1996 | |
| IVECO | Daily A40.10 | 2.5 (2499ccm) Diesel | 814027S | BUS | 94139111/94139131/94139311/94139315/94139317/94139331/94139335/94139337 | 1990 - 1996 | |
| IVECO | Daily A45.10 | 2.5 (2499ccm) Diesel | 814027S | BUS | 94159111/94159131/94159211/94159311/94159315/94159317/94159331/94159335/94159337 | 1990 - 1996 | |
| IVECO | Daily A45.12 | 2.5 (2499ccm) Diesel | 814047/814047S | BUS | 94179211/94179231/94179311/94179317/94179331/94179337 | 1990 - 1996 |
Description
S0838 Replacement Starter Motor
The Sahibs S0838 starter motor is associated with Lucas reference LRS00838 for replacement identification. The listed electrical rating is 12V 2.5kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Iveco Daily 35.10 2.4 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 2.5kW power: compare the listed rating with the original starter motor.

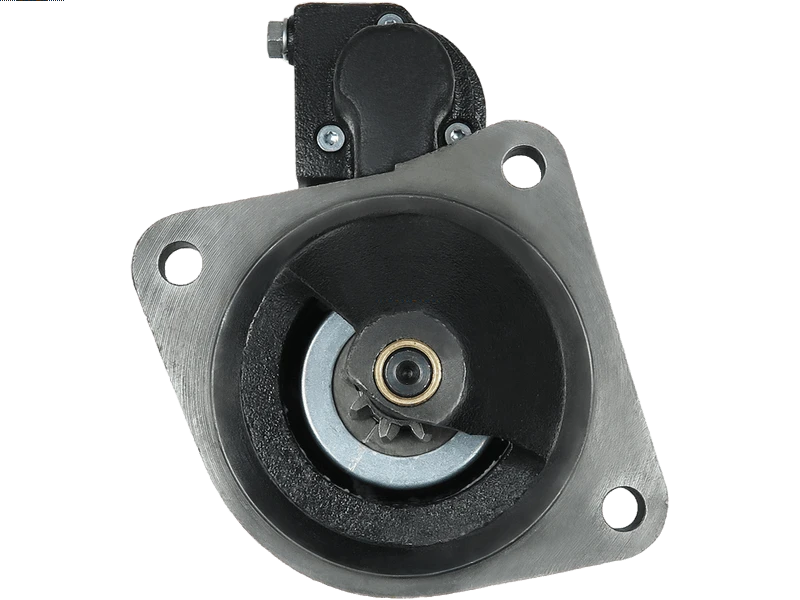

- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Iveco Daily 35.10 2.4 Diesel – selected applications 1978–1989 (engine code 814021).
- Iveco Daily 35.12 2.5 Diesel – selected applications 1990–1996 (engine code 814047/814047S).
- Iveco Daily 40.10 2.5 Diesel – selected applications 1990–1996 (engine code 814027S).
- Iveco Daily 45.10 2.5 Diesel – selected applications 1990–1996 (engine code 814027S).
- Iveco Daily 49.10 2.5 Diesel – selected applications 1989–1996 (engine code 814027S).
- Iveco Daily 49.12 2.5 Diesel – selected applications 1990–1996 (engine code 814047/814047S).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S0838. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1362031, 1362062, LRS00838, LRS838, DRS1060, MS187, 1516714R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S0838 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S0838 fit my Iveco Daily 35.10?
Iveco Daily 35.10 2.4 Diesel (1978–1989) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S0838 replace Lucas LRS00838?
Lucas LRS00838 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S0838?
The listed details include 12V, 2.5kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S0838 new or remanufactured?
Check the current product condition selection for S0838. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S0838?
Compare 12V compatibility, 2.5kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
