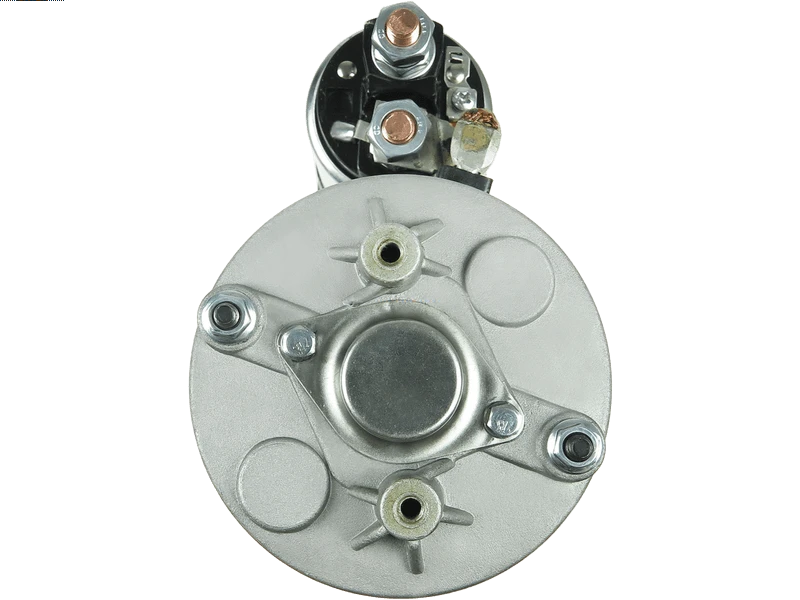

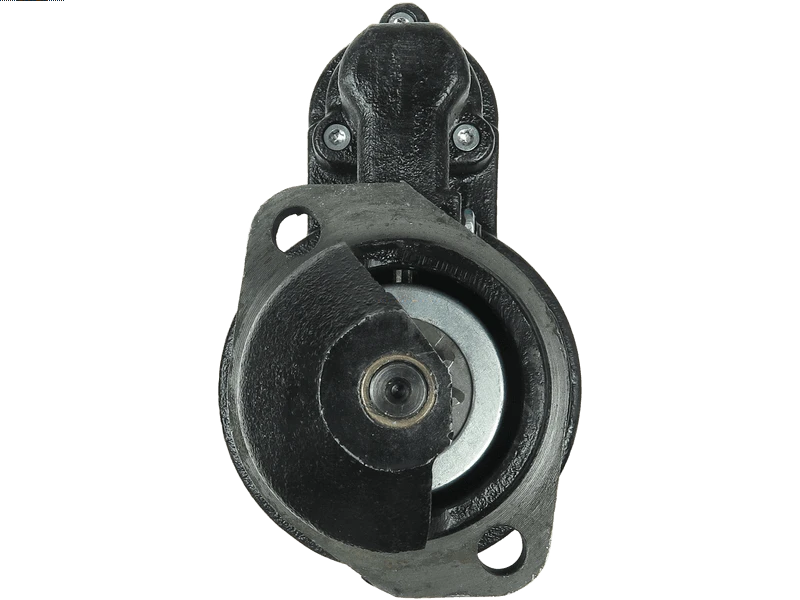

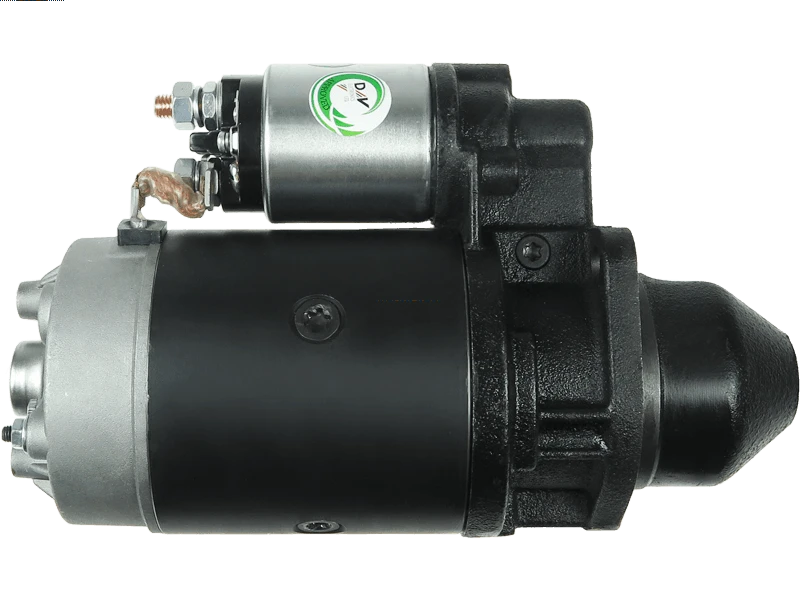

S1365 12V 1.8kW Starter Motor Fits O & K L 5, O & K RL 3
Price range: £159.27 through £184.65
Compare the S1365 12V 1.8kW starter motor from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected O & K L 5, O & K RL 3, Schaeff HM25, Schaeff HR26 models. Identification references include Lucas LRS01365, Bosch 1354081. Its listed 12V 1.8kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1365 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.8 kW |
| Volt | 12 V |
| Plug | M10 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 10.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1365 | Dyno Electrics |
| UD11985S | AS-PL |
| 1354081 | BOSCH |
| 1354100 | BOSCH |
| 1362012 | BOSCH |
| 1362013 | BOSCH |
| 1362024 | BOSCH |
| 1362041 | BOSCH |
| 1366001 | BOSCH |
| 986012460 | BOSCH |
| 114181 | CARGO |
| F032114181 | CARGO |
| 8EA730223-001 | HELLA |
| 1172683 | KHD |
| 1161386 | KHD |
| 1162510 | KHD |
| 1164414 | KHD |
| B14R12X18H7622 | KHD |
| STRF147 | 3EFFE |
| STRS337 | 3EFFE |
| CST10322AS | CASCO |
| 33455 | EAI |
| STR1337 | ELECTROLOG |
| 25-2208 | ELSTOCK |
| CS707 | HC PARTS |
| 10707 | KUHNER |
| 254262 | KUHNER |
| LRS01365 | LUCAS |
| LRS1365 | LUCAS |
| 5010391 | MEAT & DORIA |
| 8009830001 | MWM |
| 510.506.092 | PSH |
| 510.506.092.460 | PSH |
| 20401223BN | REAL |
| 6010322 | SANDO |
| S12BH0267A2 | SIDAT |
| MAV123220 | SIOM |
| UNIT BOM 120-525A | WAI / TRANSPO |
| 91-15-6898 | WILSON |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S0567 | 1.8KW | 2.4KW | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| O & K | L 5 | 1885ccm Diesel | KHD-F2L912 | 1969 - 1979 | |||
| O & K | RL 3 | 1885ccm Diesel | KHD-F2L912 | 1969 - 1979 | |||
| SCHAEFF | HM25 | 1885ccm Diesel | KHD-F2L912 | 1974 - 1986 | |||
| SCHAEFF | HR26 | 1885ccm Diesel | KHD-F2L912 | 1974 - 1986 | |||
| SCHAEFF | SKL300 | 1885ccm Diesel | KHD-F2L912 | 1974 - 1986 |
Description
S1365 Replacement Starter Motor
Start your S1365 starter motor comparison with the linked Lucas reference LRS01365 and the specifications shown on this page. The listed electrical rating is 12V 1.8kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected O & K L 5 1885ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.8kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M10 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- O & K L 5 1885ccm Diesel – selected applications 1969–1979 (engine code KHD-F2L912).
- O & K RL 3 1885ccm Diesel – selected applications 1969–1979 (engine code KHD-F2L912).
- Schaeff HM25 1885ccm Diesel – selected applications 1974–1986 (engine code KHD-F2L912).
- Schaeff HR26 1885ccm Diesel – selected applications 1974–1986 (engine code KHD-F2L912).
- Schaeff SKL300 1885ccm Diesel – selected applications 1974–1986 (engine code KHD-F2L912).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1365. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1354081, 1354100, 1362012, 1362013, 1362024, 1362041, 1366001, 986012460, LRS01365, LRS1365
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1365 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1365 fit my O & K L 5?
O & K L 5 1885ccm Diesel (1969–1979) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1365 replace Lucas LRS01365?
Lucas LRS01365 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1365?
The listed details include 12V, 1.8kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1365 new or remanufactured?
Check the current product condition selection for S1365. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1365?
Compare 12V compatibility, 1.8kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
