S1396 12V 1.4kW Starter Motor Replaces Lucas LRS01396
Price range: £122.58 through £142.11
Identify a replacement starter motor using Sahibs S1396, listed at 12V 1.4kW. Use the original unit reference and vehicle details to confirm the application. Identification references include Lucas LRS01396, Denso 128000-4960, Mitsubishi Electric MD017649. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 10-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1396 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 10 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 4.93 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1396 | Dyno Electrics |
| S6150 | AS-PL |
| UD12359S | AS-PL |
| 111764 | CARGO |
| 113100 | CARGO |
| F032111764 | CARGO |
| F032113100 | CARGO |
| 1877560 | CHRYSLER |
| 2095150 | CHRYSLER |
| 2098500 | CHRYSLER |
| 2785560 | CHRYSLER |
| 2875560 | CHRYSLER |
| 3255250 | CHRYSLER |
| 3656575 | CHRYSLER |
| 3656650 | CHRYSLER |
| 3675560 | CHRYSLER |
| 3755250 | CHRYSLER |
| 3755259 | CHRYSLER |
| 3755900 | CHRYSLER |
| 4091950 | CHRYSLER |
| 4091975 | CHRYSLER |
| 4106113 | CHRYSLER |
| 4106114 | CHRYSLER |
| 4111855 | CHRYSLER |
| 4111860 | CHRYSLER |
| 4145300 | CHRYSLER |
| 4145359 | CHRYSLER |
| 4145360 | CHRYSLER |
| 4145568 | CHRYSLER |
| 4349144 | CHRYSLER |
| 4379143 | CHRYSLER |
| 4379160 | CHRYSLER |
| 5226844 | CHRYSLER |
| 53005984 | CHRYSLER |
| 17010 | DELCO |
| 19011800 | DELCO |
| 128000-4960 | DENSO |
| 128000-5270 | DENSO |
| 128000-5280 | DENSO |
| 128000-5670 | DENSO |
| 128000-7810 | DENSO |
| 128000-7811 | DENSO |
| 128000-7812 | DENSO |
| MD017649 | MITSUBISHI |
| STRE110 | 3EFFE |
| STRF427 | 3EFFE |
| CST40199 | CASCO |
| CST40199AS | CASCO |
| CST40199ES | CASCO |
| CST40199GS | CASCO |
| CST40199OS | CASCO |
| CST40199RS | CASCO |
| 246-14132 | DIXIE |
| S-8215 | DIXIE |
| STR6582 | ELECTROLOG |
| STR6583 | ELECTROLOG |
| 25-2278 | ELSTOCK |
| 255010 | KUHNER |
| 336556 | LOGISTIK |
| LRS01396 | LUCAS |
| LRS1396 | LUCAS |
| 830.557.102 | PSH |
| 830.557.102.461 | PSH |
| 830.558.102 | PSH |
| 830.558.102.050 | PSH |
| 830.558.102.460 | PSH |
| 20432991BN | REAL |
| 6040199 | SANDO |
| S12DE0750A2 | SIDAT |
| MAV421990 | SIOM |
| STX200375 | STARDAX |
| STX201171 | STARDAX |
| 17084N | WAI / TRANSPO |
| 17084R | WAI / TRANSPO |
| 17466N | WAI / TRANSPO |
| 17466R | WAI / TRANSPO |
| 2-1398ND | WAI / TRANSPO |
| 91-29-5079 | WILSON |
| STR70237 | WOODAUTO |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| - | - | - | - | - | - | - |
Description

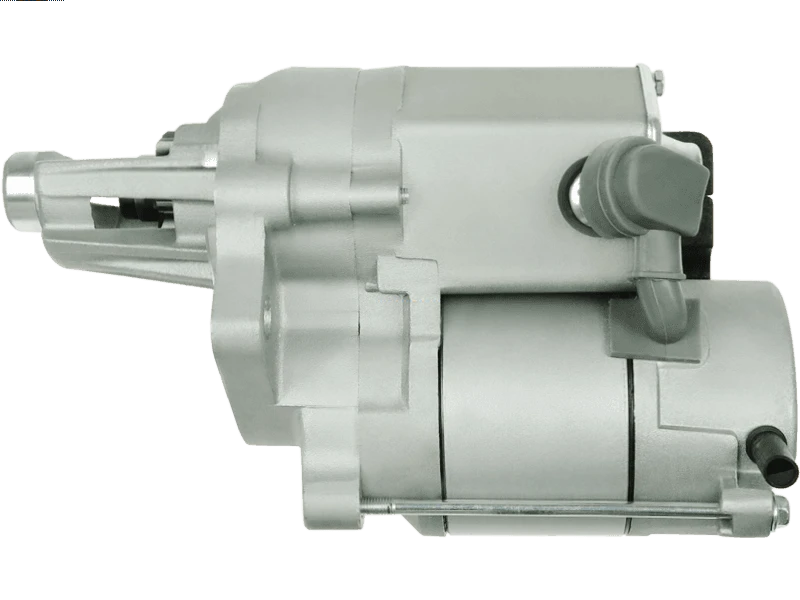

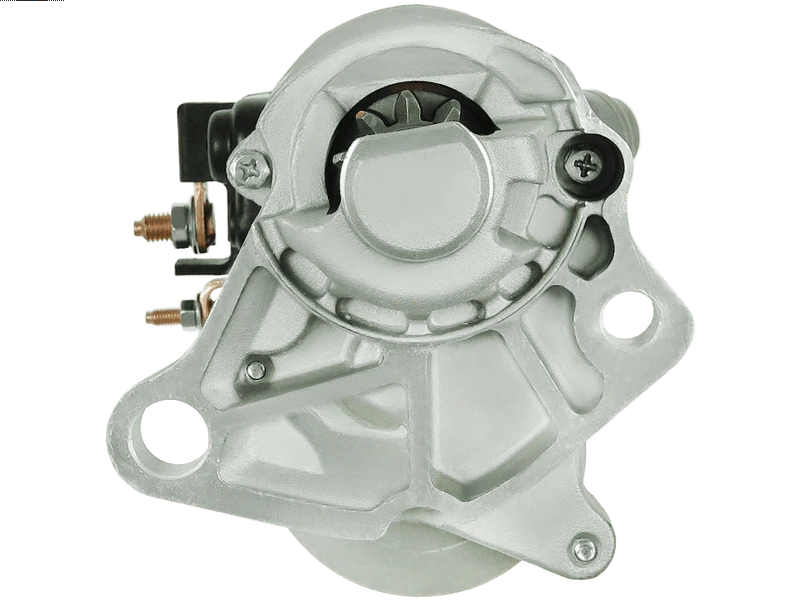

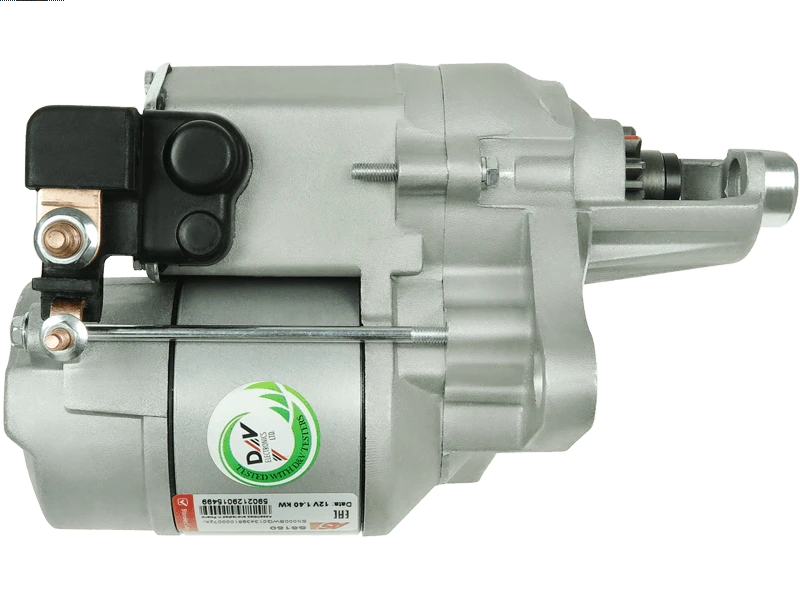

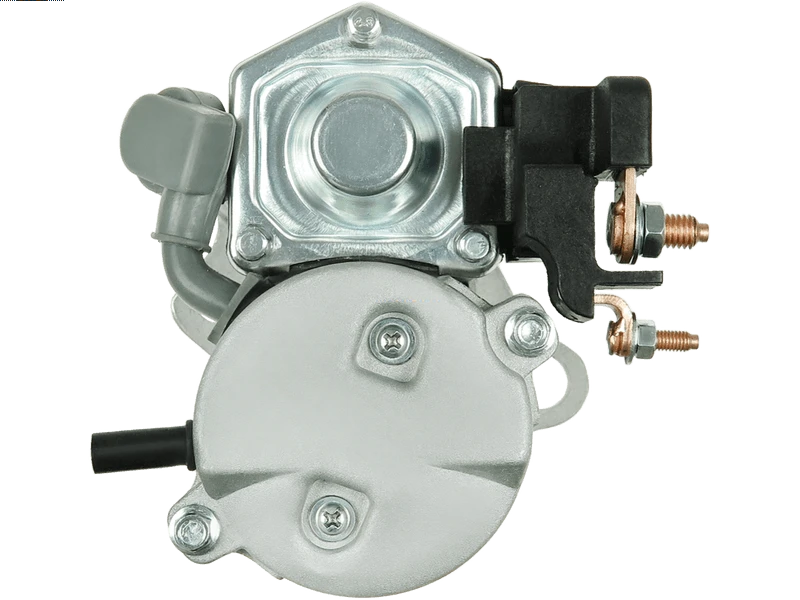

S1396 Replacement Starter Motor
The S1396 starter motor is a replacement unit identified by Lucas reference LRS01396. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Confirm the vehicle application with the team before ordering.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 10-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
Quote S1396 and LRS01396 with your vehicle details so the team can check the application. Compare the original part number, engine and physical unit rather than relying on a general model description.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1396. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
128000-4960, 128000-5270, 128000-5280, 128000-5670, 128000-7810, 128000-7811, 128000-7812, LRS01396, LRS1396, MD017649, 17010, 19011800, 1877560, 2095150, 2098500, 2785560, 2875560, 3255250, 3656575, 3656650, 3675560, 3755250, 3755259, 3755900, 4091950, 4091975, 4106113, 4106114, 4111855, 4111860, 4145300, 4145359, 4145360, 4145568, 4349144, 4379143, 4379160, 5226844, 53005984
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1396 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
How can I confirm the vehicle application for S1396?
Quote S1396, Lucas LRS01396, your vehicle registration and the existing unit number for an application check.
Does S1396 replace Lucas LRS01396?
Lucas LRS01396 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1396?
The listed details include 12V, 1.4kW power, 10 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1396 new or remanufactured?
Check the current product condition selection for S1396. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1396?
Compare 12V compatibility, 1.4kW power, 10 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
