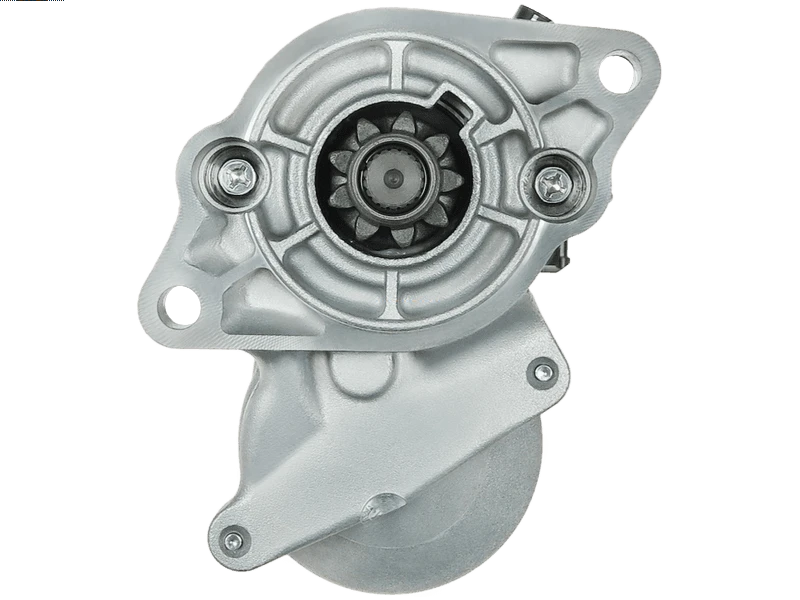

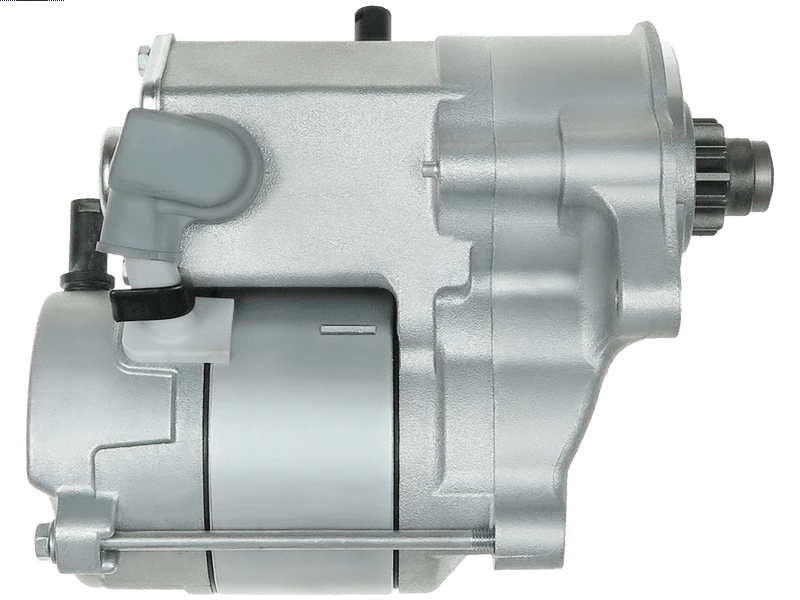

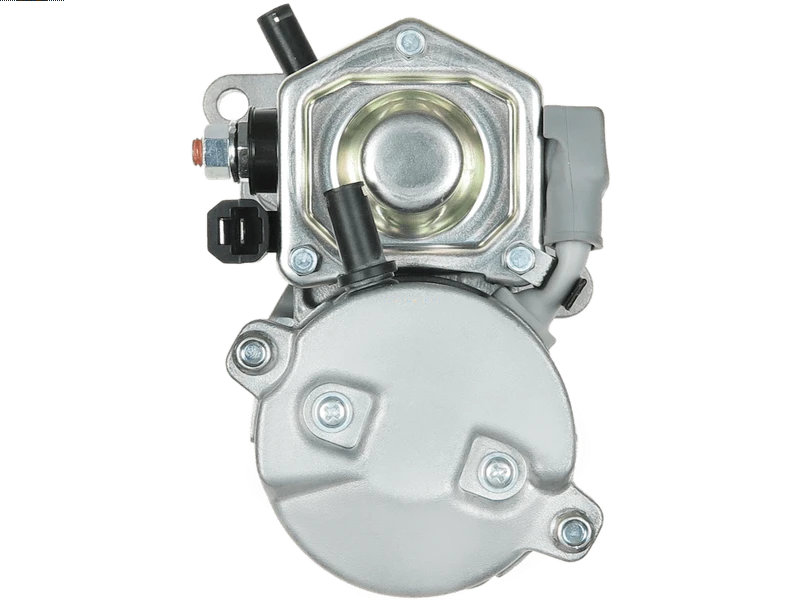

S1526 12V 1.2kW Starter Motor Fits Grasshopper 930D, Vermeer S600XL
Price range: £139.48 through £160.93
Sahibs S1526 is a replacement starter motor with a listed 12V 1.2kW rating. Listed applications include selected Grasshopper 930D, Kubota Engines V1405, Kubota Engines V1505-B, Vermeer S600XL models. Identification references include Lucas LRS01526, Denso 228000-0950. Its listed 12V 1.2kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1526 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.2 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1526 | Dyno Electrics |
| UD810203(DENSO)S | AS-PL |
| 111622 | CARGO |
| F032111622 | CARGO |
| 228000-0950 | DENSO |
| 228000-0951 | DENSO |
| 228080-0951 | DENSO |
| DSN2065 | DENSO |
| 16285-63010 | KUBOTA |
| 16285-63012 | KUBOTA |
| 25396-9000 | KUBOTA |
| 25396-9000RB | KUBOTA |
| 37560-63010 | KUBOTA |
| AC-CBS5052 | ACAUTO |
| 683024092 | DRI |
| STR6192 | ELECTROLOG |
| 25-3001 | ELSTOCK |
| 3124652 | HENKEL PARTS |
| 10040144AV | ITAB AUTOMOTIVE |
| 10040144OV | ITAB AUTOMOTIVE |
| STN1622 | KRAUF |
| LRS01526 | LUCAS |
| LRS1526 | LUCAS |
| 191-2229 | ONAN |
| 690.509.092.262 | PSH |
| ST01100 | TMI |
| WG1920179 | WILMINK GROUP |
| DENDSN2065 | WOODAUTO |
| STR70073 | WOODAUTO |
| STR70488 | WOODAUTO |
| WOOSTR30003 | WOODAUTO |
| WOOSTR30008 | WOODAUTO |
| WOOSTR30020 | WOODAUTO |
| WOOSTR70073 | WOODAUTO |
| WOOSTR70488 | WOODAUTO |
| WOOSTR8090 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1169 | 1.2KW 60 degrees hole F | 1.0KW 55 degrees hole F | No |
| S1251 | 1.2KW | 1.4KW | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| GRASSHOPPER | 930D | 1261ccm Diesel | Kubota D1305 | 2010 - | |||
| KUBOTA ENGINES | V1405 | 0ccm Diesel | 1992 - | ||||
| KUBOTA ENGINES | V1505-B | 0ccm Diesel | 1992 - | ||||
| VERMEER | S600XL | 1123ccm Diesel | Kubota D1105 | 2008 - |
Description
S1526 Replacement Starter Motor
The S1526 starter motor is a replacement unit identified by Lucas reference LRS01526. The listed electrical rating is 12V 1.2kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Grasshopper 930D 1261ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.2kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Grasshopper 930D 1261ccm Diesel – selected applications 2010 – (engine code Kubota D1305).
- Kubota Engines V1405 – selected applications 1992 -.
- Kubota Engines V1505-B – selected applications 1992 -.
- Vermeer S600XL 1123ccm Diesel – selected applications 2008 – (engine code Kubota D1105).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1526. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
228000-0950, 228000-0951, 228080-0951, DSN2065, LRS01526, LRS1526
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1526 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1526 fit my Grasshopper 930D?
Grasshopper 930D 1261ccm Diesel (2010 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1526 replace Lucas LRS01526?
Lucas LRS01526 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1526?
The listed details include 12V, 1.2kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1526 new or remanufactured?
Check the current product condition selection for S1526. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1526?
Compare 12V compatibility, 1.2kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
