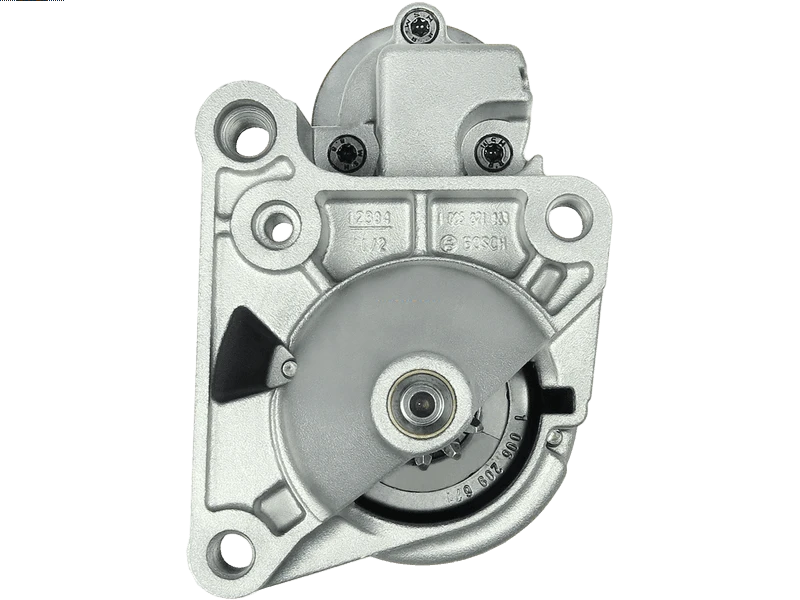

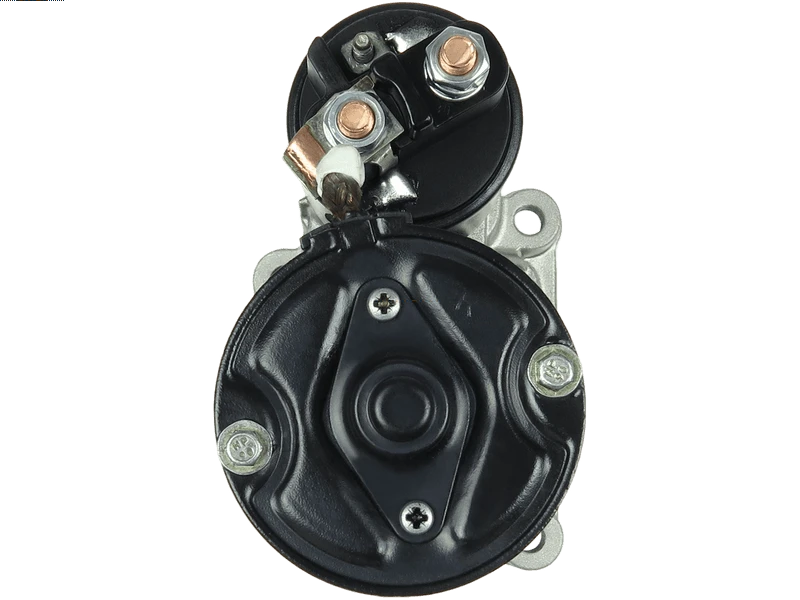

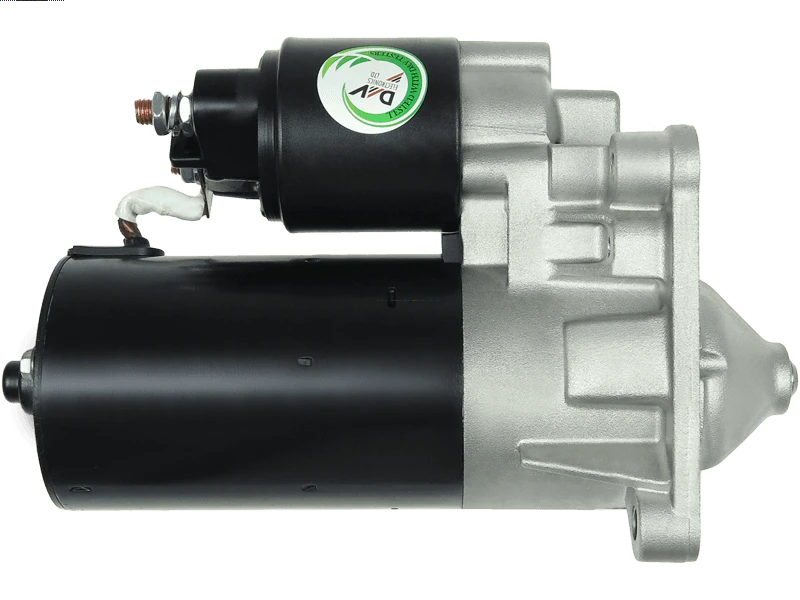

S1559 12V 1.4kW Starter Motor Fits Dacia Pick Up, Dacia Solenza
Price range: £94.34 through £108.38
The S1559 12V 1.4kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Dacia Pick Up, Dacia Solenza, Renault Clio, Renault Clio Symbol models. Identification references include Lucas LRS01559, Bosch 1108186, Valeo 726009. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1559 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.4 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1559 | Dyno Electrics |
| 402745291 | Euro Car Part |
| 1108186 | BOSCH |
| 986013200 | BOSCH |
| 113481 | CARGO |
| F032113481 | CARGO |
| 1516807R | DAF |
| 8EA731774-001 | HELLA |
| AZD3523 | ISKRA / LETRIKA |
| 63521081860 | MAGNETI MARELLI |
| 9.43251E+11 | MAGNETI MARELLI |
| MSN2135 | MAGNETI MARELLI |
| MS 8 | MAHLE |
| MD329260 | MITSUBISHI |
| 9110411 | OPEL |
| 96325689 | PEUGEOT |
| 35258720 | PRESTOLITE |
| S1073R | PRESTOLITE |
| 6001040105 | RENAULT |
| 6001546655 | RENAULT |
| 7700102800 | RENAULT |
| 7700106426 | RENAULT |
| 7700106763 | RENAULT |
| 7700113207 | RENAULT |
| 7700113208 | RENAULT |
| 7700700188 | RENAULT |
| 7700735712 | RENAULT |
| 7700761416 | RENAULT |
| 7700777478 | RENAULT |
| 7700852853 | RENAULT |
| 7700860915 | RENAULT |
| 7700861013 | RENAULT |
| 7700865213 | RENAULT |
| 7700866505 | RENAULT |
| 7701351391 | RENAULT |
| 7701351392 | RENAULT |
| 7701351794 | RENAULT |
| 7701352050 | RENAULT |
| 7701499229 | RENAULT |
| 7701499477 | RENAULT |
| 7701499601 | RENAULT |
| 7702146495 | RENAULT |
| 8200466763 | RENAULT |
| 8200724823 | RENAULT |
| 8933002378 | RENAULT |
| 8982775133 | RENAULT |
| 18213M68KA000 | SUZUKI |
| 726009 | VALEO |
| 3475866 | VOLVO |
| 8111572 | VOLVO |
| 9031303 | VOLVO |
| AES7135 | AUTOELECTRO |
| STR1491 | ELECTROLOG |
| STR1492 | ELECTROLOG |
| STR1493 | ELECTROLOG |
| 25-3054 | ELSTOCK |
| 220021 | ERA |
| 220184 | ERA |
| CS784 | HC PARTS |
| 10354 | KUHNER |
| 10684 | KUHNER |
| 10684K | KUHNER |
| 10784 | KUHNER |
| 10784V | KUHNER |
| LRS01559 | LUCAS |
| LRS1559 | LUCAS |
| 570.502.113 | PSH |
| S12BH0690A2 | SIDAT |
| MAV4520 | SIOM |
| MAV4620 | SIOM |
| STX200020 | STARDAX |
| STX200066 | STARDAX |
| STX200066R | STARDAX |
| STX200155 | STARDAX |
| STX200724 | STARDAX |
| STX200778 | STARDAX |
| UNITBOM120-452A | WAI / TRANSPO |
| BOS0001108186 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1596 | 4 Mounting holes | 3 Mounting holes | No |
| S1304 | Connection 50 M5 | Connection 50 Spade | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| DACIA | Pick Up | 1.9 (1870ccm) Diesel | F8Q636 | 1304/1307 | 2000 - 2008 | ||
| DACIA | Solenza | 1.9 (1870ccm) Diesel | F8Q636 | B41E/B41F/B41G | 2003 - 2005 | ||
| RENAULT | Clio | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE II | BB02/BB0E/BB0J/CB0E | 1998 - 2001 | |
| RENAULT | Clio | 1.9 (1870ccm) Diesel | F8Q632 | PHASE II | BB0J/CB0J | 2000 - 2001 | |
| RENAULT | Clio Symbol | 1.9 (1870ccm) Diesel | F8Q630 | PHASE II | LB02 | 1998 - 2001 | |
| RENAULT | Clio Van | 1.9 (1870ccm) Diesel | F8Q630 | PHASE II | Societe | SB0E | 1998 - 2003 |
| RENAULT | Clio Van | 1.9 (1870ccm) Diesel | F8Q662 | PHASE II | Societe | SB0R | 1998 - 2001 |
| RENAULT | Kangoo | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE I | KC02/KC0E/KC0N | 1997 - 2005 | |
| RENAULT | Kangoo | 1.9 (1870ccm) Diesel | F8Q662 | PHASE I | KC0D | 1997 - 2001 | |
| RENAULT | Kangoo | 1.9 (1870ccm) Diesel | F8Q632 | PHASE I | KC0J | 1999 - 2001 | |
| RENAULT | Kangoo Express | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE I | FC02/FC0E/FC0J | 1997 - 2006 | |
| RENAULT | Kangoo Express | 1.9 (1870ccm) Diesel | F8Q662 | PHASE I | FC0D | 1997 - 2003 | |
| RENAULT | Kangoo Express | 1.9 (1870ccm) Diesel | F8Q632 | PHASE I | FC0J/FC0N | 1999 - 2009 | |
| RENAULT | Kangoo Rapid | 1.9 (1870ccm) Diesel | F8Q662 | PHASE I | FC0D | 1997 - 2003 | |
| RENAULT | Kangoo Rapid | 1.9 (1870ccm) Diesel | F8Q630/F8Q632 | PHASE I | FC0E/FC0J | 1997 - 2006 | |
| RENAULT | Kangoo Rapid | 1.9 (1870ccm) Diesel | F8Q632 | PHASE I | FC0J | 1999 - 2003 | |
| RENAULT | Megane | 1.9 (1870ccm) Diesel | F8Q620/F8Q622/F8Q624 | PHASE I | BA0A/BA0R/BA0U | 2001 - 2002 | |
| RENAULT | Megane | 1.9 (1870ccm) Diesel | F8Q784/F8Q786 | PHASE I | BA0K | 1998 - 2002 | |
| RENAULT | Megane Classic | 1.9 (1870ccm) Diesel | F8Q784/F8Q786 | PHASE I | LA0K | 1998 - 2002 | |
| RENAULT | Megane Classic | 1.9 (1870ccm) Diesel | F8Q620/F8Q622/F8Q624 | PHASE I | LA0A/LA0R/LA0U | 2001 - 2002 | |
| RENAULT | Megane Classic | 1.9 (1870ccm) Diesel | F8Q784 | PHASE I | LA0K | 1998 - 2002 | |
| RENAULT | Trafic T1000 | 1.9 (1870ccm) Diesel | F8Q600/F8Q606 | PHASE I | THBJ/THBL | 1997 - 2001 | |
| RENAULT | Trafic T1000 | 1.9 (1870ccm) Diesel | F8Q600/F8Q606 | PHASE I | TF1J/TF1L/TF2J/TF2L/TF5J/TF5L | 1997 - 2001 | |
| RENAULT | Trafic T1100 | 1.9 (1870ccm) Diesel | F8Q600/F8Q606 | PHASE I | T55J/T55L | 1997 - 2001 | |
| RENAULT | Trafic T900 | 1.9 (1870ccm) Diesel | F8Q600/F8Q606 | PHASE I | TF1J/TF1L/TF2J/TF2L/TF5J/TF5L | 1997 - 2001 | |
| RENAULT | Trafic T900 | 1.9 (1870ccm) Diesel | F8Q600/F8Q606 | PHASE I | THBJ/THBL | 1997 - 2001 |
Description
S1559 Replacement Starter Motor
The Sahibs S1559 starter motor is associated with Lucas reference LRS01559 for replacement identification. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Dacia Pick Up 1.9 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Dacia Pick Up 1.9 Diesel – selected applications 2000–2008 (engine code F8Q636).
- Dacia Solenza 1.9 Diesel – selected applications 2003–2005 (engine code F8Q636).
- Renault Clio 1.9 Diesel – selected applications 1998–2001 (engine code F8Q630/F8Q632).
- Renault Clio Symbol 1.9 Diesel – selected applications 1998–2001 (engine code F8Q630).
- Renault Clio Van 1.9 Diesel – selected applications 1998–2003 (engine code F8Q630).
- Renault Kangoo 1.9 Diesel – selected applications 1997–2005 (engine code F8Q630/F8Q632).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1559. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
1108186, 986013200, 726009, LRS01559, LRS1559, MD329260, 35258720, S1073R, MS 8, AZD3523, 6001040105, 6001546655, 7700102800, 7700106426, 7700106763, 7700113207, 7700113208, 7700700188, 7700735712, 7700761416, 7700777478, 7700852853, 7700860915, 7700861013, 7700865213, 7700866505, 7701351391, 7701351392, 7701351794, 7701352050, 7701499229, 7701499477, 7701499601, 7702146495, 8200466763, 8200724823, 8933002378, 8982775133, 96325689, 1516807R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1559 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1559 fit my Dacia Pick Up?
Dacia Pick Up 1.9 Diesel (2000–2008) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1559 replace Lucas LRS01559?
Lucas LRS01559 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1559?
The listed details include 12V, 1.4kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1559 new or remanufactured?
Check the current product condition selection for S1559. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1559?
Compare 12V compatibility, 1.4kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
