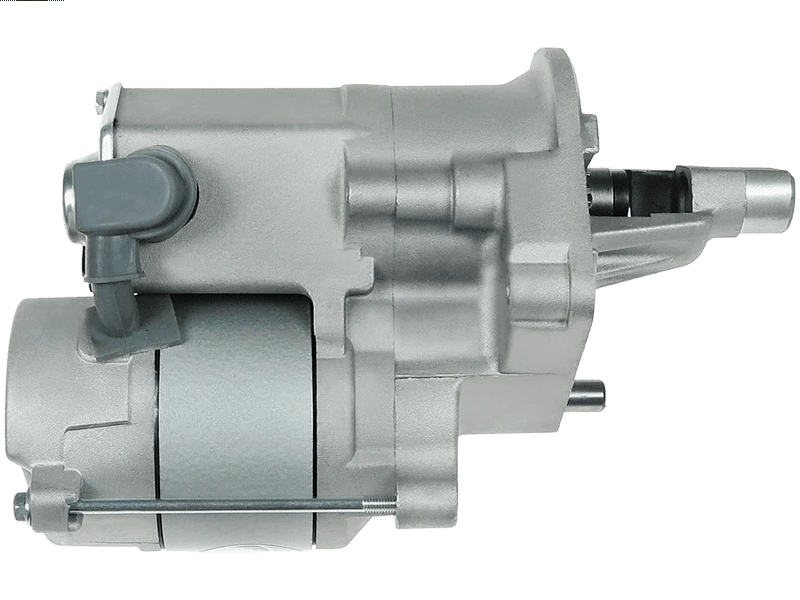

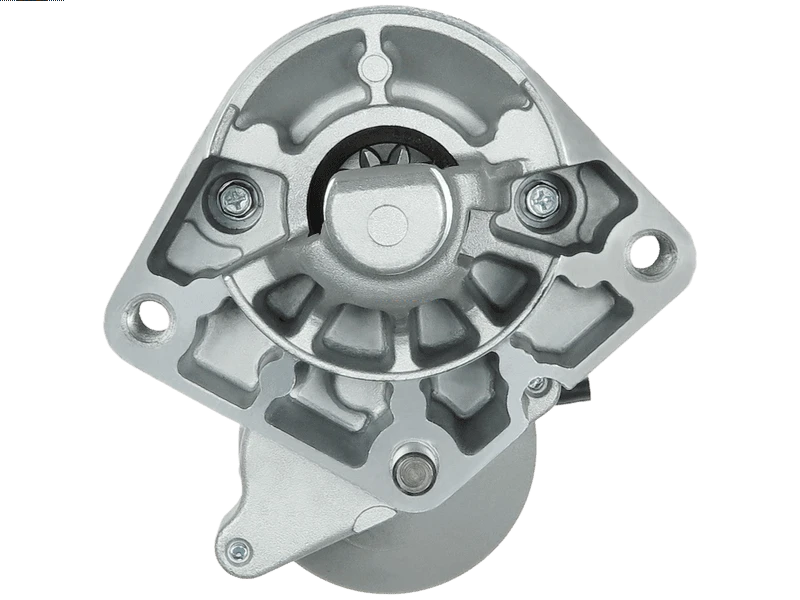

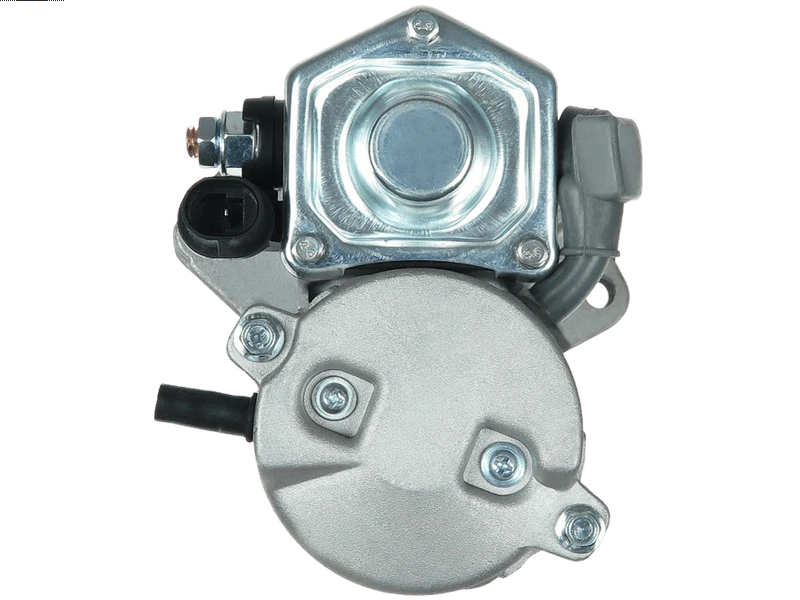

S1692 12V 1.4kW Starter Motor Fits Chrysler Grand Voyager
Price range: £127.67 through £150.65
The S1692 12V 1.4kW Starter Motor is a replacement starting unit from Sahibs Auto Electrics. Listed applications include selected Chrysler Grand Voyager, Chrysler Voyager models. Identification references include Lucas LRS01692, Denso 228000-7640, Chrysler 04686045AB. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 9-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S1692 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Plug | M8 |
| Rotation | Clockwise |
| Teeth | 9 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.81 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS1692 | Dyno Electrics |
| UD16976S | AS-PL |
| 114135 | CARGO |
| F032114135 | CARGO |
| 04686045AB | CHRYSLER |
| 228000-7640 | DENSO |
| 228000-7641 | DENSO |
| S-8917 | DIXIE |
| 25-3240 | ELSTOCK |
| CS1501 | HC PARTS |
| STN4135 | KRAUF |
| LRS01692 | LUCAS |
| LRS1692 | LUCAS |
| 88213267 | POWERMAX |
| 830.504.092 | PSH |
| 830.504.092.415 | PSH |
| 830.504.092.461 | PSH |
| STX200486 | STARDAX |
| 17784N | WAI / TRANSPO |
| 17784R | WAI / TRANSPO |
| 91-29-5492 | WILSON |
| 91-29-5492N | WILSON |
| STR70255 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| S1297 | Pin 50: Plug 153 | Pin 50: Plug 85 | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| CHRYSLER | Grand Voyager | 3.3 (3301ccm) Petrol | EGA | GSHY53/GSHZ53 | 1995 - 2001 | ||
| CHRYSLER | Voyager | 3.3 (3301ccm) Petrol | EGA | GSHY52/GSHZ52 | 1995 - 2001 |
Description
S1692 Replacement Starter Motor
The S1692 starter motor is a replacement unit identified by Lucas reference LRS01692. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Chrysler Grand Voyager 3.3 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 9-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- M8 connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Chrysler Grand Voyager 3.3 Petrol – selected applications 1995–2001 (engine code EGA).
- Chrysler Voyager 3.3 Petrol – selected applications 1995–2001 (engine code EGA).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S1692. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
228000-7640, 228000-7641, LRS01692, LRS1692, 04686045AB
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S1692 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S1692 fit my Chrysler Grand Voyager?
Chrysler Grand Voyager 3.3 Petrol (1995–2001) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S1692 replace Lucas LRS01692?
Lucas LRS01692 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S1692?
The listed details include 12V, 1.4kW power, 9 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S1692 new or remanufactured?
Check the current product condition selection for S1692. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S1692?
Compare 12V compatibility, 1.4kW power, 9 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
