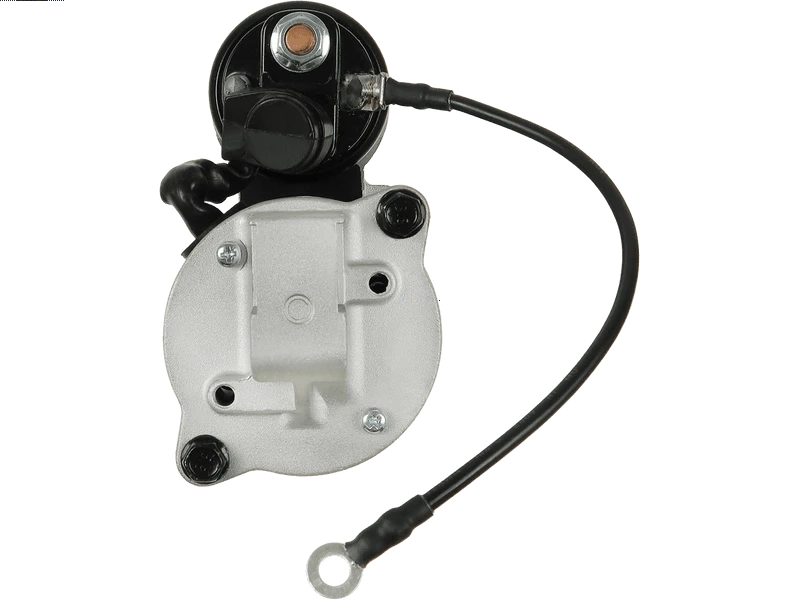

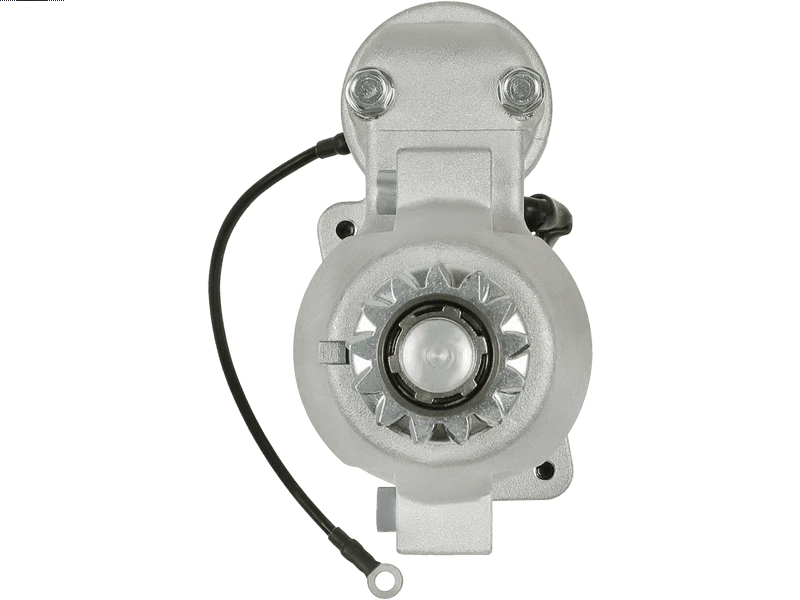

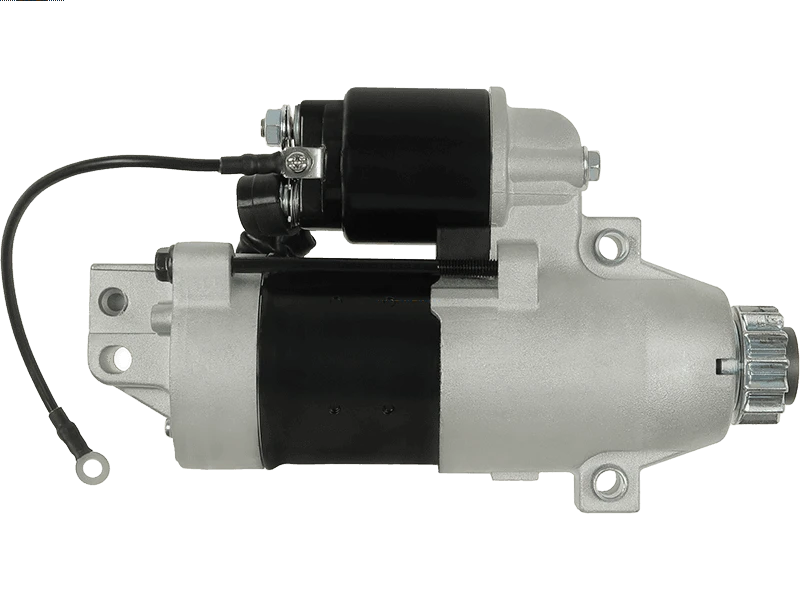

S4070 12V 1.4kW Starter Motor Fits Mercury 115ELTP-EFI
Price range: £105.94 through £125.94
Sahibs S4070 is a replacement starter motor with a listed 12V 1.4kW rating. Listed applications include selected Mercury 115ELTP-EFI, Mercury 115EXLTP-EFI, Mercury 75ELTP-EFI, Mercury 90ELTP-EFI models. Identification references include Lucas LRS04070, Hitachi S114-838. Its listed 12V 1.4kW rating provides an electrical matching point for your existing unit. Check the 13-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4070 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 1.4 kW |
| Volt | 12 V |
| Teeth | 13 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 3.31 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4070 | Dyno Electrics |
| UD102465S | AS-PL |
| 115992 | CARGO |
| F032115992 | CARGO |
| S114-838 | HITACHI |
| S114-838A | HITACHI |
| S114-838B | HITACHI |
| S114-838C | HITACHI |
| 25-5234CT | AINDE |
| CGB-23117 | AINDE |
| ANM99986 | ANDEL |
| SHI0132 | ARROWHEAD |
| SHI209 | AUTOTEAM |
| S102131 | BTS TURBO |
| CST20209GS | CASCO |
| 8293 | CEVAM |
| 240-14113 | DIXIE |
| 600254132 | DRI |
| STR3091 | ELECTROLOG |
| 25-5234 | ELSTOCK |
| 107590 | FARCOM |
| 3117879 | HENKEL PARTS |
| 10020209OV | ITAB AUTOMOTIVE |
| STH2779 | KRAUF |
| 255172 | KUHNER |
| 18349 | LESTER |
| LRS04070 | LUCAS |
| LRS4070 | LUCAS |
| 50-881368T | MERCURY |
| 50-881368T1 | MERCURY |
| 50-881368T2 | MERCURY |
| 881368T1 | MERCURY |
| 881368T2 | MERCURY |
| 400.503.133.200 | PSH |
| 20445902OE | REAL |
| 104-10361 | ROBERT'S |
| 104-10361NOE | ROBERT'S |
| 6020209.1 | SANDO |
| MAV222090 | SIOM |
| TT16853 | TESLA TECHNICS |
| ST02189 | TMI |
| 18349N | WAI / TRANSPO |
| 18349N-OE | WAI / TRANSPO |
| 71-25-18349 | WILSON |
| STR72209 | WOODAUTO |
| 687-81800-01 | YAMAHA |
| 68V-81800-00 | YAMAHA |
| 68V-81800-00-00 | YAMAHA |
| 68V-81800-01 | YAMAHA |
| 68V-81800-01-00 | YAMAHA |
| 68V-81800-02 | YAMAHA |
| 68V-81800-02-00 | YAMAHA |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| MERCURY | 115ELTP-EFI | 1732ccm Diesel | 2001 - 2009 | ||||
| MERCURY | 115EXLTP-EFI | 1732ccm Diesel | 2006 - 2009 | ||||
| MERCURY | 75ELTP-EFI | 1732ccm Diesel | 2006 - 2009 | ||||
| MERCURY | 90ELTP-EFI | 1732ccm Diesel | 2006 - 2009 | ||||
| MERCURY | 90ELXTP-EFI | 1732ccm Diesel | 2006 - 2009 | ||||
| YAMAHA MARINE | F115TJR | 1741ccm Diesel | 2001 - 2008 | ||||
| YAMAHA MARINE | F115TLR | 1741ccm Diesel | 2000 - 2008 | ||||
| YAMAHA MARINE | F115TXR | 1741ccm Diesel | 2000 - 2008 | ||||
| YAMAHA MARINE | F75TLR | 1589ccm Diesel | 2005 - 2008 | ||||
| YAMAHA MARINE | LF115TR | 1741ccm Diesel | 2000 - 2008 | ||||
| YAMAHA MARINE | LF115TXR | 1741ccm Diesel | 2001 - 2008 |
Description
S4070 Replacement Starter Motor
The S4070 starter motor is a replacement unit identified by Lucas reference LRS04070. The listed electrical rating is 12V 1.4kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Mercury 115ELTP-EFI 1732ccm Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 1.4kW power: compare the listed rating with the original starter motor.
- 13-tooth pinion: compare gear engagement and pinion position.
- Counter Clockwise rotation: check the specified direction before fitting.
- M8 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Mercury 115ELTP-EFI 1732ccm Diesel – selected applications 2001–2009.
- Mercury 115EXLTP-EFI 1732ccm Diesel – selected applications 2006–2009.
- Mercury 75ELTP-EFI 1732ccm Diesel – selected applications 2006–2009.
- Mercury 90ELTP-EFI 1732ccm Diesel – selected applications 2006–2009.
- Mercury 90ELXTP-EFI 1732ccm Diesel – selected applications 2006–2009.
- Yamaha Marine F115TJR 1741ccm Diesel – selected applications 2001–2008.
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4070. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS04070, LRS4070, S114-838, S114-838A, S114-838B, S114-838C
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4070 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4070 fit my Mercury 115ELTP-EFI?
Mercury 115ELTP-EFI 1732ccm Diesel (2001–2009) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4070 replace Lucas LRS04070?
Lucas LRS04070 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4070?
The listed details include 12V, 1.4kW power, 13 pinion teeth, counter clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4070 new or remanufactured?
Check the current product condition selection for S4070. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4070?
Compare 12V compatibility, 1.4kW power, 13 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
