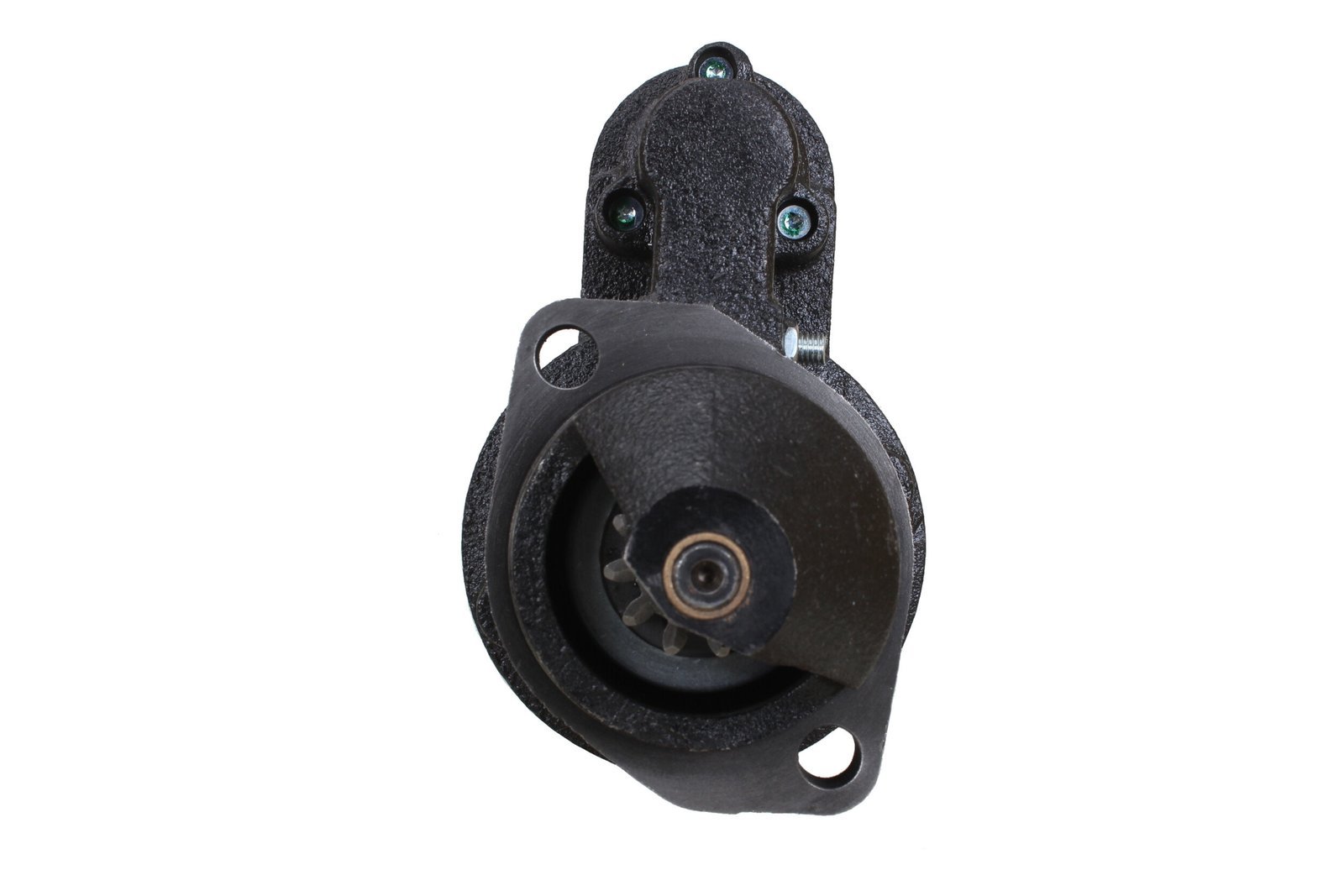

S4309 24V 2.6kW Starter Motor Fits Vm Diesel Various Models
Price range: £188.99 through £283.48
Identify a replacement starter motor using Sahibs S4309, listed at 24V 2.6kW. Listed applications include selected Vm Diesel Various Models models. Identification references include Lucas LRS04309. Its listed 24V 2.6kW rating provides an electrical matching point for your existing unit. Check the 11-tooth pinion, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your S4309 replacement starter motor online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| KW | 2.6 kW |
| Volt | 24 V |
| Rotation | Clockwise |
| Teeth | 11 qty |
| Oil Sealed | No |
| Insulated Return | No |
| Waterproof | No |
| Wet Clutch | No |
| Weight | 11.31 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYS4309 | Dyno Electrics |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| VM DIESEL | Various Models | 1.8 (0ccm) Diesel | VM-RA394 | 1990 - | |||
| VM DIESEL | Various Models | 2.4 (0ccm) Diesel | VM-HR492 | 1990 - |
Description
S4309 Replacement Starter Motor
Start your S4309 starter motor comparison with the linked Lucas reference LRS04309 and the specifications shown on this page. The listed electrical rating is 24V 2.6kW. A starter motor turns the engine during starting; the electrical rating and mechanical engagement must suit the application. Applications include selected Vm Diesel Various Models variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 2.6kW power: compare the listed rating with the original starter motor.
- 11-tooth pinion: compare gear engagement and pinion position.
- Clockwise rotation: check the specified direction before fitting.
- Pin "30" M10 B+ connector / terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Vm Diesel Various Models – selected applications 1990 – (engine code VM-RA394).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with S4309. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRS04309
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Starter Motor?
Failure to crank, clicking during a start request or intermittent cranking can indicate a starting-system problem. A weak battery, poor connections or control-circuit faults can produce similar symptoms; test the system before replacing the starter motor.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying S4309 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will S4309 fit my Vm Diesel Various Models?
Vm Diesel Various Models (1990 -) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does S4309 replace Lucas LRS04309?
Lucas LRS04309 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for S4309?
The listed details include 24V, 2.6kW power, 11 pinion teeth, clockwise rotation. Compare the complete specifications on this page with the unit being replaced.
Is S4309 new or remanufactured?
Check the current product condition selection for S4309. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering S4309?
Compare 24V compatibility, 2.6kW power, 11 pinion teeth, rotation, mounting and electrical connections with the original starter.
Does clicking prove the starter motor has failed?
No. Battery voltage, wiring and control-circuit faults can also cause clicking or no cranking. Have the starting system tested before choosing a replacement.
