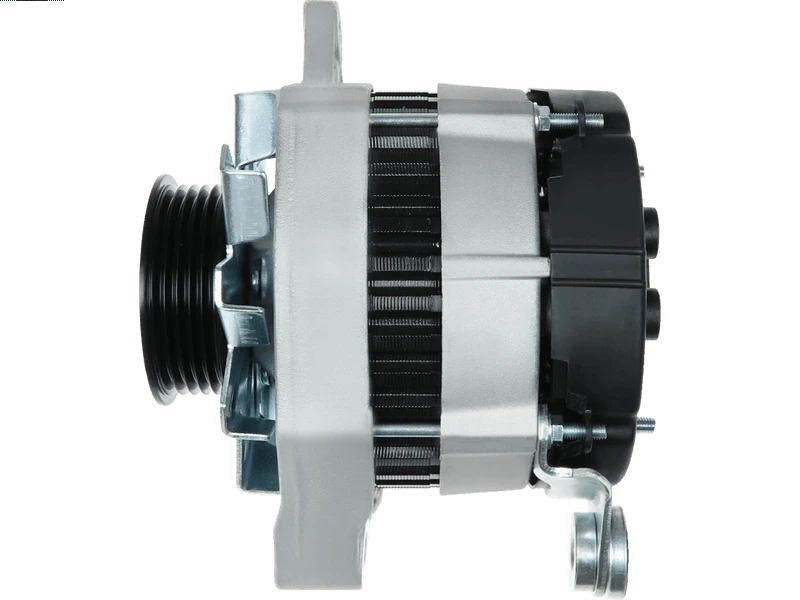

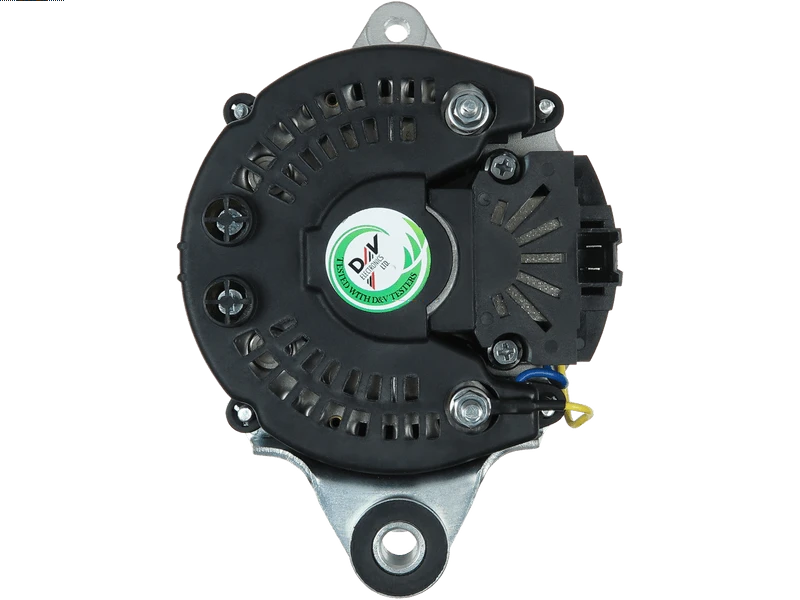

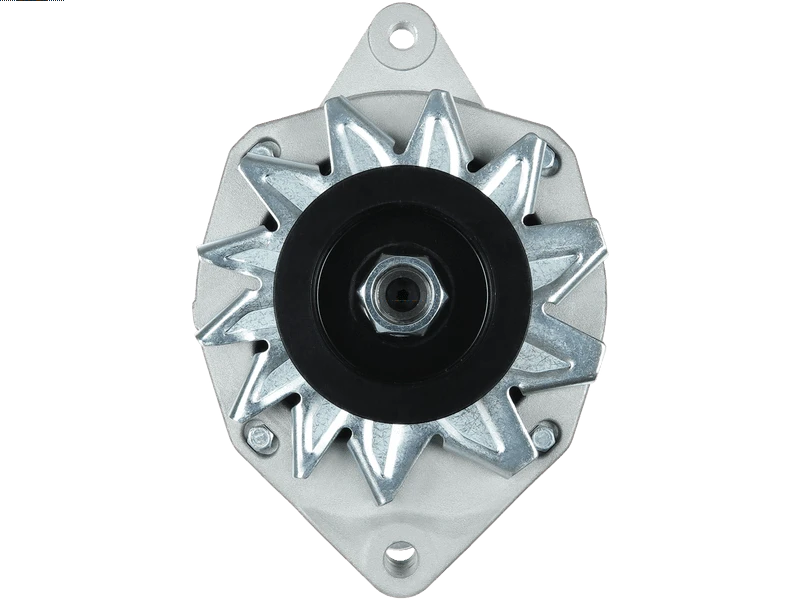

A0473 12V 60A Alternator Fits Renault 9, Renault Espace
Price range: £82.44 through £107.80
Identify a replacement alternator using Sahibs A0473, listed at 12V 60A. Listed applications include selected Renault 9, Renault Espace, Renault Fuego models. Identification references include Lucas LRA00473, Bosch 986034000, Valeo 432763. Its listed 12V 60A rating provides an electrical matching point for your existing unit. Check the 5-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0473 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 60 A |
| Volt | 12 V |
| No. of Grooves | 5 qty |
| Pulley Diameter | 68 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.7 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0473 | Dyno Electrics |
| UD14314A | AS-PL |
| 986034000 | BOSCH |
| 986034001 | BOSCH |
| 986034008 | BOSCH |
| 9120334311 | BOSCH |
| DA5110 | DELCO |
| DRA4000 | DELCO |
| 11.201.535 | ISKRA / LETRIKA |
| AAK3594 | ISKRA / LETRIKA |
| IA0535 | ISKRA / LETRIKA |
| 9.43E+11 | MAGNETI MARELLI |
| MAR462 | MAGNETI MARELLI |
| MG 538 | MAHLE |
| 66021576 | PRESTOLITE |
| 7700499228 | RENAULT |
| 7700733790 | RENAULT |
| 7700751336 | RENAULT |
| 7700753082 | RENAULT |
| 7700754012 | RENAULT |
| 7701351763 | RENAULT |
| 7701489237 | RENAULT |
| 7701489288 | RENAULT |
| 7701499227 | RENAULT |
| 7701499228 | RENAULT |
| 7701499453 | RENAULT |
| 7701499454 | RENAULT |
| 7701499490 | RENAULT |
| 432763 | VALEO |
| 433086 | VALEO |
| 433420 | VALEO |
| 433445 | VALEO |
| 433465 | VALEO |
| 516044A | VALEO |
| 516044BC | VALEO |
| A13N86 | VALEO |
| ALTF080 | 3EFFE |
| ALTF583 | 3EFFE |
| PRAF080 | 3EFFE |
| PRAF583 | 3EFFE |
| ANM36220X | ANDEL |
| 4207 | CEVAM |
| 55892 | EAI |
| ALT00866 | ELECTROLOG |
| ALT01065 | ELECTROLOG |
| ALT79116 | ELECTROLOG |
| 28-0925 | ELSTOCK |
| CA373IR | HC PARTS |
| CA529IR | HC PARTS |
| 32034000 | HERTH+BUSS |
| ALV0373 | KRAUF |
| 30360RI | KUHNER |
| 30373RI | KUHNER |
| 30529RI | KUHNER |
| 440676 | LOGISTIK |
| LRA00473 | LUCAS |
| LRA473 | LUCAS |
| 575.023.065 | PSH |
| 575.023.065.225 | PSH |
| STX100527 | STARDAX |
| STX100527R | STARDAX |
| STX100705 | STARDAX |
| STX100941 | STARDAX |
| STX100970 | STARDAX |
| STX101003 | STARDAX |
| STX101032 | STARDAX |
| STX101040 | STARDAX |
| STX101041 | STARDAX |
| STX101044 | STARDAX |
| STX101045 | STARDAX |
| STX101066 | STARDAX |
| UNITBOM282-372 | WAI / TRANSPO |
| ALT14118 | WOODAUTO |
| VAL432763 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A1250 | Pulley PV4/66 | Pulley PV5/65 | No |
| A0593 | 60A | 75A | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| RENAULT | 9 | 1.6 (1596ccm) Diesel | F8M700/F8M710 | L424 | 1983 - 1989 | ||
| RENAULT | Espace | 2.0 (1995ccm) Petrol | J6R234/J6R236 | PHASE I | Monospace | J112 | 1984 - 1986 |
| RENAULT | Fuego | 1.6 (1647ccm) Petrol | A6M725/A6M726 | R1362 | 1980 - 1986 | ||
| RENAULT | Fuego | 1.6 (1647ccm) Petrol | A2M723 | R1361 | 1983 - 1986 |
Description
A0473 Replacement Alternator
Choose a replacement by comparing the A0473 alternator and its Lucas reference, LRA00473, with your existing unit. The listed electrical rating is 12V 60A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Renault 9 1.6 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 60A output: compare the listed rating with the original alternator.
- 5-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Renault 9 1.6 Diesel – selected applications 1983–1989 (engine code F8M700/F8M710).
- Renault Espace 2.0 Petrol – selected applications 1984–1986 (engine code J6R234/J6R236).
- Renault Fuego 1.6 Petrol – selected applications 1980–1986 (engine code A6M725/A6M726).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0473. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
986034000, 986034001, 986034008, 9120334311, 432763, 433086, 433420, 433445, 433465, 516044A, 516044BC, A13N86, LRA00473, LRA473, DA5110, DRA4000, 66021576, MG 538, MG538, 11.201.535, AAK3594, IA0535, 7700499228, 7700733790, 7700751336, 7700753082, 7700754012, 7701351763, 7701489237, 7701489288, 7701499227, 7701499228, 7701499453, 7701499454, 7701499490
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0473 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0473 fit my Renault 9?
Renault 9 1.6 Diesel (1983–1989) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0473 replace Lucas LRA00473?
Lucas LRA00473 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0473?
The listed details include 12V, 60A output, 5 pulley grooves. Compare the complete specifications on this page with the unit being replaced.
Is A0473 new or remanufactured?
Check the current product condition selection for A0473. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0473?
Compare 12V compatibility, 60A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
