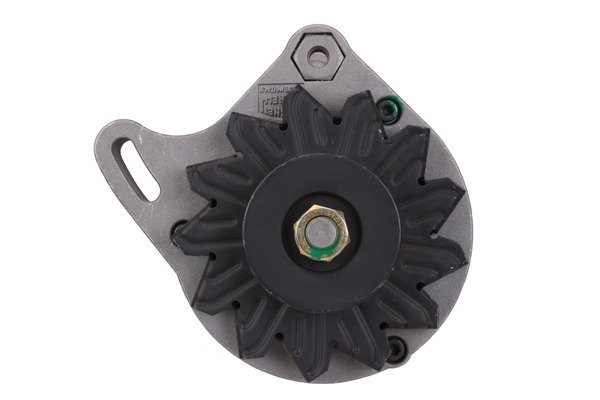

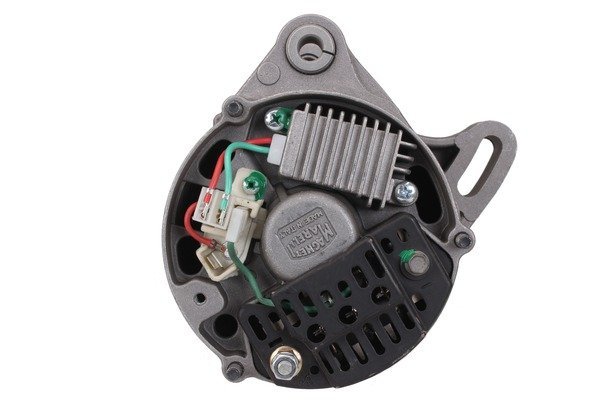

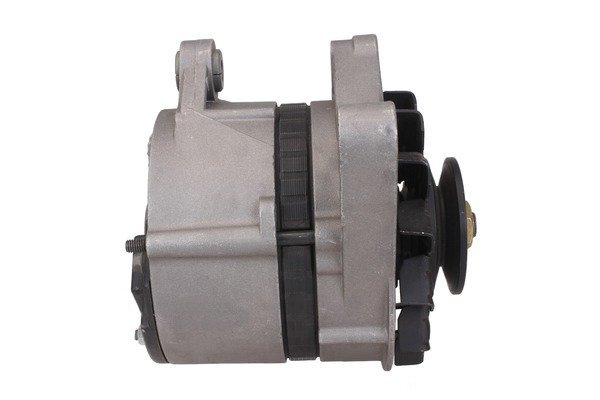

A1247 12V 55A Alternator Fits Peugeot 205, Fiat Regata, Fiat Ritmo
Price range: £110.00 through £176.00
Compare the A1247 12V 55A alternator from Sahibs Auto Electrics with the unit currently fitted. Listed applications include selected Peugeot 205, Fiat Regata, Fiat Ritmo, Lancia Prisma models. Identification references include Lucas LRA01247. Its listed 12V 55A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1247 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 55 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 68 mm |
| Mounting holes | 3 qty |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 5.03 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1247 | Dyno Electrics |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| A0599 | 55A | 65A | Yes |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Regata | 1.5 (1498ccm) Petrol | 138B3000 | 138A | 1983 - 1985 | ||
| FIAT | Regata | 1.6 (1585ccm) Petrol | 149C3000 | 138A | 1983 - 1990 | ||
| FIAT | Ritmo | 1.6 (1585ccm) Petrol | 149C2000 | 138A | 1985 - 1987 | ||
| LANCIA | Prisma | 1.6 (1585ccm) Petrol | 831B7000 | 831AB | 1986 - 1987 | ||
| PEUGEOT | 205 | 1.8 (1769ccm) Diesel | XUD7 | 741S | 1983 - 1987 |
Description
A1247 Replacement Alternator
For a A1247 alternator enquiry, use Lucas reference LRA01247 alongside the vehicle and original unit details. The listed electrical rating is 12V 55A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Peugeot 205 1.8 Diesel variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 55A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Peugeot 205 1.8 Diesel – selected applications 1983–1987 (engine code XUD7).
- Fiat Regata 1.5 Petrol – selected applications 1983–1985 (engine code 138B3000).
- Fiat Ritmo 1.6 Petrol – selected applications 1985–1987 (engine code 149C2000).
- Lancia Prisma 1.6 Petrol – selected applications 1986–1987 (engine code 831B7000).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1247. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
LRA01247
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1247 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1247 fit my Peugeot 205?
Peugeot 205 1.8 Diesel (1983–1987) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1247 replace Lucas LRA01247?
Lucas LRA01247 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1247?
The listed details include 12V, 55A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1247 new or remanufactured?
Check the current product condition selection for A1247. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1247?
Compare 12V compatibility, 55A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
