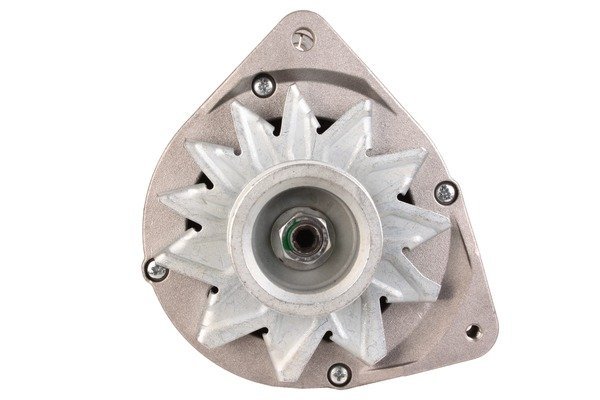

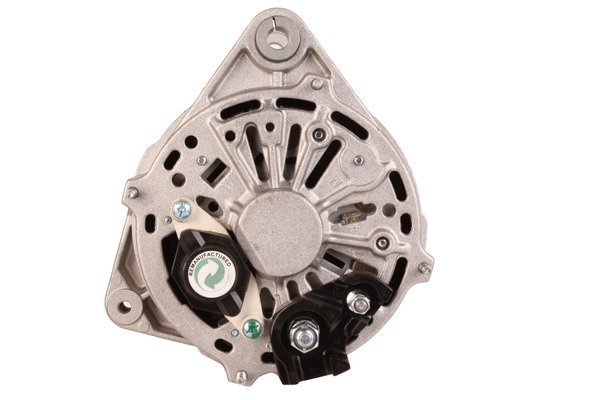

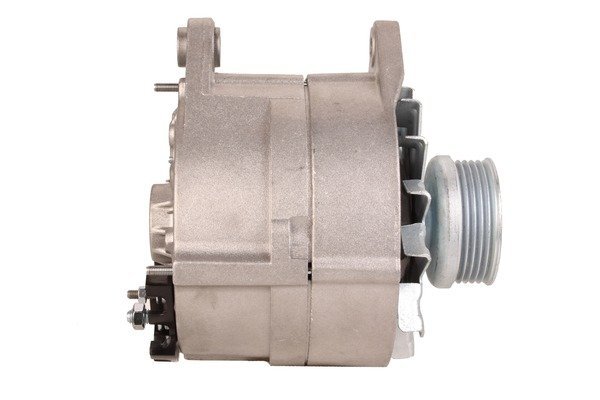

A1868 12V 115A Alternator Fits Fiat Croma, Lancia K(appa)
Price range: £112.64 through £180.22
The A1868 12V 115A Alternator is a replacement charging unit from Sahibs Auto Electrics. Listed applications include selected Fiat Croma, Lancia K(appa), Lancia K(appa) Coupe, Lancia K(appa) S.W. models. Identification references include Lucas LRA01868, Bosch 120468017, Delco Remy DRA6270. Its listed 12V 115A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A1868 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 115 A |
| Volt | 12 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 67 mm |
| Mounting holes | 3 qty |
| Position | -60° |
| B+ | M8 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 6.8 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA1868 | Dyno Electrics |
| 120468017 | Bosch |
| 120468018 | Bosch |
| 120468019 | Bosch |
| 120468020 | Bosch |
| 120468022 | Bosch |
| 120468044 | Bosch |
| 120468056 | Bosch |
| 120468070 | Bosch |
| 120468079 | Bosch |
| 120468087 | Bosch |
| 120468088 | Bosch |
| 120468108 | Bosch |
| 120468112 | Bosch |
| 120468122 | Bosch |
| 120468141 | Bosch |
| 120488052 | Bosch |
| 034903015F | Volkswagen AG |
| 34903016 | Volkswagen AG |
| 034903016H | Volkswagen AG |
| 034903017B | Volkswagen AG |
| 034903017BX | Volkswagen AG |
| 051903015A | Volkswagen AG |
| 051903015D | Volkswagen AG |
| 054903015J | Volkswagen AG |
| 074903023N | Volkswagen AG |
| 77903015 | Volkswagen AG |
| 077903015C | Volkswagen AG |
| 077903015G | Volkswagen AG |
| 77903017 | Volkswagen AG |
| 077903017X | Volkswagen AG |
| 986038300 | Bosch Exchange |
| 986038307 | Bosch Exchange |
| 112777 | HC-Cargo |
| 1135102BO | WAI |
| 1147600BO | WAI |
| 1193277 | DAF |
| 12201181 | AES |
| 13242R | WAI |
| 205014115 | PSH |
| 71718749 | Fiat Group |
| 7612356 | Fiat Group |
| 7634026 | Fiat Group |
| 7689340 | Fiat Group |
| 7713061 | Fiat Group |
| 90156174 | Wilson |
| 90196175 | Wilson |
| AL179X | Bosch (USA) |
| ALT10389 | Wood Auto |
| CA700IR | HC-Parts |
| DRA6270 | Delco Remy |
| DRA9690 | Delco Remy |
| HCA700IR | HC-Parts |
| LRA01438 | Lucas |
| LRA01488 | Lucas |
| LRA01868 | Lucas |
| LRA1438 | Lucas |
| LRA1488 | Lucas |
| LRA1868 | Lucas |
| RNL3830 | RNL |
| WOOALT10389 | Wood Auto |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT | Croma | 2.0 (1995ccm) Petrol | 154E1000 | 154LN/154ON | 1992 - 1996 | ||
| LANCIA | K(appa) | 2.0 (1995ccm) Petrol | 838A4000 | 838AB1AA | 1995 - 1998 | ||
| LANCIA | K(appa) Coupe | 2.0 (1995ccm) Petrol | 834A4000 | 838CB | 1997 - 1998 | ||
| LANCIA | K(appa) S.W. | 2.0 (1995ccm) Petrol | 838A4000 | 838BB1AA | 1996 - 1998 | ||
| LANCIA | Thema | 2.0 (1995ccm) Petrol | 834B2246 | 834FA | 1992 - 1992 | ||
| LANCIA | Thema | 2.0 (1995ccm) Petrol | 834C1246 | S.W. | 834AC | 1991 - 1993 | |
| LANCIA | Thema | 2.0 (1995ccm) Petrol | 834F1000 | S.W. | 834FC | 1990 - 1995 | |
| LANCIA | Thema | 2.0 (1995ccm) Petrol | 834F2000 | S.W. | 834FC | 1993 - 1994 | |
| LANCIA | Thema | 2.0 (1995ccm) Petrol | 834F1000 | 834FA | 1992 - 1995 | ||
| LANCIA | Thema | 2.0 (1995ccm) Petrol | 834F2000 | 834FA | 1993 - 1994 |
Description
A1868 Replacement Alternator
The A1868 alternator is a replacement unit identified by Lucas reference LRA01868. The listed electrical rating is 12V 115A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat Croma 2.0 Petrol variants.
Key Features and Benefits
- 12V electrical system: match the vehicle voltage before selecting a unit.
- 115A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M8 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Croma 2.0 Petrol – selected applications 1992–1996 (engine code 154E1000).
- Lancia K(appa) 2.0 Petrol – selected applications 1995–1998 (engine code 838A4000).
- Lancia K(appa) Coupe 2.0 Petrol – selected applications 1997–1998 (engine code 834A4000).
- Lancia K(appa) S.W. 2.0 Petrol – selected applications 1996–1998 (engine code 838A4000).
- Lancia Thema 2.0 Petrol – selected applications 1992–1992 (engine code 834B2246).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A1868. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120468017, 120468018, 120468019, 120468020, 120468022, 120468044, 120468056, 120468070, 120468079, 120468087, 120468088, 120468108, 120468112, 120468122, 120468141, 120488052, 986038300, 986038307, LRA01868, LRA01438, LRA01488, LRA1438, LRA1488, LRA1868, DRA6270, DRA9690, 1193277
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A1868 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A1868 fit my Fiat Croma?
Fiat Croma 2.0 Petrol (1992–1996) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A1868 replace Lucas LRA01868?
Lucas LRA01868 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A1868?
The listed details include 12V, 115A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A1868 new or remanufactured?
Check the current product condition selection for A1868. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A1868?
Compare 12V compatibility, 115A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
