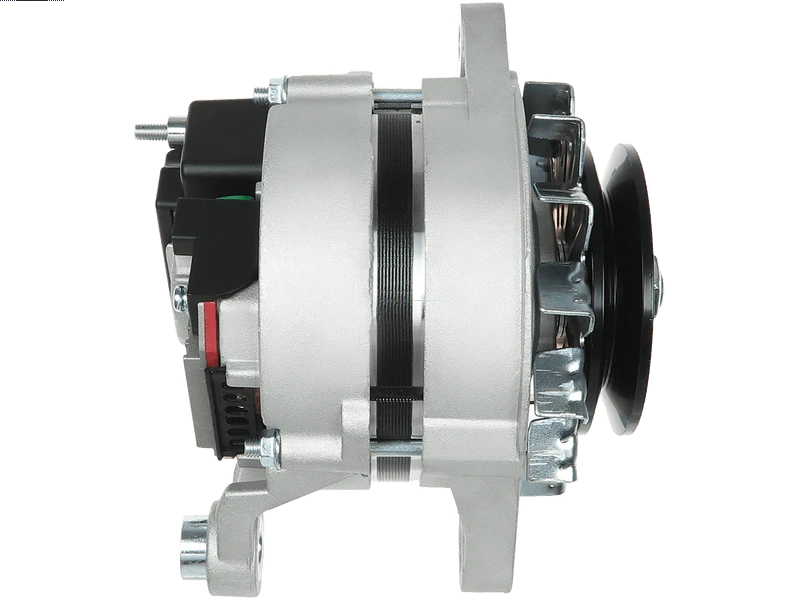

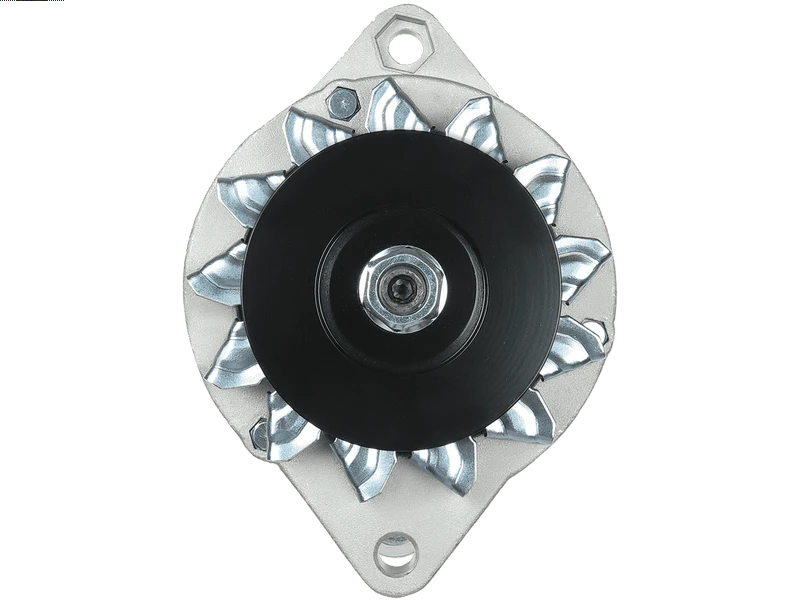

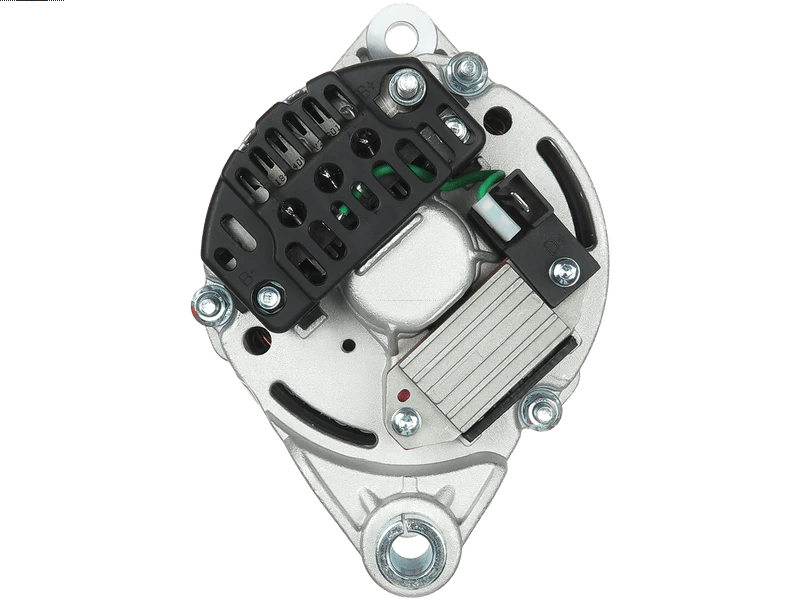

A0839 24V 27A Alternator Fits Fiat Truck 100 F13, Fiat Truck 100 NC
Price range: £98.58 through £125.12
Sahibs A0839 is a replacement alternator with a listed 24V 27A rating. Listed applications include selected Fiat Truck 100 F13, Fiat Truck 100 NC, Fiat Truck 110 NC, Fiat Truck 130 NC models. Identification references include Lucas LRA00839, Bosch 120489410, Valeo 436416. Its listed 24V 27A rating provides an electrical matching point for your existing unit. Check the single-groove pulley, connections and mounting arrangement. Check the current condition options and availability before purchase. Match the exact engine and production details before ordering. Buy your A0839 replacement alternator online from Sahibs Auto Electrics for UK delivery or Click & Collect.
Product Specification
| Description | Value |
|---|---|
| AMP | 27 A |
| Volt | 24 V |
| No. of Grooves | 1 qty |
| Pulley Diameter | 65 mm |
| Mounting holes | 3 qty |
| Position | 180° |
| B+ | M6 |
| Insulated Return | No |
| Water cooled | No |
| Vacuum pump | No |
| Start/Stop | No |
| Weight | 4.35 Kg |
Cross Reference
| Reference Number | Brand |
|---|---|
| DYA0839 | Dyno Electrics |
| 401920011 | Euro Car Part |
| A4029 | AS-PL |
| 120489410 | BOSCH |
| 120489412 | BOSCH |
| 120489414 | BOSCH |
| 120489612 | BOSCH |
| 120489639 | BOSCH |
| 120489792 | BOSCH |
| 120489793 | BOSCH |
| 120489795 | BOSCH |
| 120489796 | BOSCH |
| 986031340 | BOSCH |
| 112097 | CARGO |
| F032112097 | CARGO |
| 038520135A | CHRYSLER |
| 38520135A | CHRYSLER |
| 1516473R | DAF |
| 1516529R | DAF |
| DRA1340 | DELCO |
| DAN603 | DENSO |
| 4152610 | FIAT |
| 4220356 | FIAT |
| 4220539 | FIAT |
| 4223787 | FIAT |
| 42498163 | FIAT |
| 42498164 | FIAT |
| 42498165 | FIAT |
| 42498213 | FIAT |
| 42498271 | FIAT |
| 4474592 | FIAT |
| 4474902 | FIAT |
| 4699242 | FIAT |
| 4702305 | FIAT |
| 4702308 | FIAT |
| 4715786 | FIAT |
| 4717509 | FIAT |
| 4717871 | FIAT |
| 4721890 | FIAT |
| 4722724 | FIAT |
| 4738563 | FIAT |
| 4738569 | FIAT |
| 4738570 | FIAT |
| 4738571 | FIAT |
| 4738772 | FIAT |
| 4738773 | FIAT |
| 4738774 | FIAT |
| 4738775 | FIAT |
| 4786913 | FIAT |
| 4808268 | FIAT |
| 4808519 | FIAT |
| 4808520 | FIAT |
| 4808526 | FIAT |
| 4808528 | FIAT |
| 77040550 | FIAT |
| 77050550 | FIAT |
| 77445410 | FIAT |
| 88206010 | FIAT |
| 88206020 | FIAT |
| 98417133 | FIAT |
| 8EL725640-001 | HELLA |
| 11.201.055 | ISKRA / LETRIKA |
| 11.201.075 | ISKRA / LETRIKA |
| 11.201.468 | ISKRA / LETRIKA |
| AAK1110 | ISKRA / LETRIKA |
| AAK1209 | ISKRA / LETRIKA |
| AAK3564 | ISKRA / LETRIKA |
| IA0055 | ISKRA / LETRIKA |
| IA0075 | ISKRA / LETRIKA |
| 2997074 | IVECO |
| 61146532 | IVECO |
| 98417134 | IVECO |
| 98417201 | IVECO |
| 98417208 | IVECO |
| 98417209 | IVECO |
| 4717509 | KHD |
| 30781001 | MAGNETI MARELLI |
| 63306000 | MAGNETI MARELLI |
| 63306300 | MAGNETI MARELLI |
| 63306301 | MAGNETI MARELLI |
| 63306302 | MAGNETI MARELLI |
| 63308300 | MAGNETI MARELLI |
| 63320025 | MAGNETI MARELLI |
| 63320060 | MAGNETI MARELLI |
| 63321045 | MAGNETI MARELLI |
| 63321050 | MAGNETI MARELLI |
| 63321055 | MAGNETI MARELLI |
| 63321115 | MAGNETI MARELLI |
| 63321161 | MAGNETI MARELLI |
| 63321163 | MAGNETI MARELLI |
| 63393053 | MAGNETI MARELLI |
| MG 369 | MAHLE |
| MG 516 | MAHLE |
| 9AR3952G | MOTOROLA |
| 860141 | PRESTOLITE |
| 436416 | VALEO |
| 510391 | VALEO |
| NA181 | VALEO |
| 4220357 | VOLVO |
| ALTL152 | 3EFFE |
| ALTL290 | 3EFFE |
| ALTS071 | 3EFFE |
| CGB-11340 | AINDE |
| ANM33560X | ANDEL |
| AEA8139 | AUTOELECTRO |
| CAL30600AS | CASCO |
| CAL30600GS | CASCO |
| CAL30600OS | CASCO |
| CAL30601AS | CASCO |
| CAL30601GS | CASCO |
| 2011 | CEVAM |
| 75638 | EAI |
| 10890 | EFEL |
| ALT79034 | ELECTROLOG |
| ALT79092 | ELECTROLOG |
| ALT9030 | ELECTROLOG |
| 48-0541 | ELSTOCK |
| 210298 | ERA |
| 210662 | ERA |
| 9931340 | FRIESEN |
| G10212M-R | GPARTS |
| GA320025-A | GPARTS |
| CA212IR | HC PARTS |
| 30212RI | KUHNER |
| 30212RIK | KUHNER |
| 30212RIL | KUHNER |
| 30212RIM | KUHNER |
| 553232RIK | KUHNER |
| 553232RIL | KUHNER |
| 553232RIM | KUHNER |
| 553951RIR | KUHNER |
| 553951RIV | KUHNER |
| 18.0212 | LAUBER |
| 18.0212M | LAUBER |
| 440359 | LOGISTIK |
| LRA00839 | LUCAS |
| LRA839 | LUCAS |
| 89213145 | POWERMAX |
| 506.001.027 | PSH |
| 506.001.035 | PSH |
| 506.001.035.461 | PSH |
| 20104006BN | REAL |
| 20104006OE | REAL |
| 20104106BN | REAL |
| 20104106OE | REAL |
| RNL63320060 | RNL |
| 2030600 | SANDO |
| 2030601 | SANDO |
| A24MA0001A2 | SIDAT |
| A24MA0154A2 | SIDAT |
| ALT2050 | SIOM |
| ALT2080 | SIOM |
| ALT236010 | SIOM |
| 12026N | WAI / TRANSPO |
| 12134N | WAI / TRANSPO |
| ALT26000 | WOODAUTO |
Alternative Parts
| Alternative Part | Current Description | Alternative Description | Direct Alternative |
|---|---|---|---|
| B0300 | 27A Plug 6.4 D+ | 35A M4 D+ | No |
Vehicle Applications
| Brand | Model | Engine | Engine Code | Series | Model Type | Type | Year |
|---|---|---|---|---|---|---|---|
| FIAT TRUCK | 100 F13 | 0ccm Diesel | 8060.04.055 | 1978 - 1982 | |||
| FIAT TRUCK | 100 NC | 0ccm Diesel | 8060.02 | 1972 - 1980 | |||
| FIAT TRUCK | 110 NC | 0ccm Diesel | OM8360.04.300 | 1978 - 1981 | |||
| FIAT TRUCK | 130 NC | 0ccm Diesel | OM8360.04.300 | 1978 - 1984 | |||
| FIAT TRUCK | 150 NC 17 | 0ccm Diesel | 8360.03 | 1976 - 1979 | |||
| FIAT TRUCK | 40 NC | 0ccm Diesel | 8040.02.360 | 1978 - 1981 | |||
| FIAT TRUCK | 50 F10 | 0ccm Diesel | 8340.04.250 | 1978 - 1982 | |||
| FIAT TRUCK | 50 F8 | 0ccm Diesel | 8040.04.200 | 1978 - 1982 | |||
| FIAT TRUCK | 50 NC | 0ccm Diesel | 8040.02 | 1972 - 1979 | |||
| FIAT TRUCK | 55 F10 | 0ccm Diesel | 8340.04.200 | 1978 - 1980 | |||
| FIAT TRUCK | 55 F8 | 0ccm Diesel | 8040.04.200 | 1978 - 1980 | |||
| FIAT TRUCK | 55 NC | 0ccm Diesel | 8040.02 | 1972 - 1979 | |||
| FIAT TRUCK | 60 F10 | 0ccm Diesel | 8340.04.250 | 1979 - 1982 | |||
| FIAT TRUCK | 60 F8 | 0ccm Diesel | 8040.04.200 | 1979 - 1982 | |||
| FIAT TRUCK | 616 N3 | 0ccm Diesel | 8030.02. | 1971 - 1979 | |||
| FIAT TRUCK | 65 F10 | 0ccm Diesel | 8340.04.200 | 1978 - 1980 | |||
| FIAT TRUCK | 65 NC | 0ccm Diesel | OM-CO3/41 | 1976 - 1979 | |||
| FIAT TRUCK | 70 F10 | 0ccm Diesel | 8340.04.250 | 1978 - 1980 | |||
| FIAT TRUCK | 75 F10 | 0ccm Diesel | 8340.04 | 1978 - 1980 | |||
| FIAT TRUCK | 79 F13 | 0ccm Diesel | 8060.04.660 | 1979 - 1982 | |||
| FIAT TRUCK | 80 F13 | 0ccm Diesel | 8060.04 | 1978 - 1980 | |||
| FIAT TRUCK | 90 F13 | 0ccm Diesel | 8060.04.055 | 1978 - 1982 | |||
| FIAT-ALLIS | FL20 Wheel Loader | 0ccm Diesel | 8215.02.520 | 1984 - 1995 | |||
| IVECO | 100-13 | 0ccm Diesel | 8060.04.660 | 1978 - 1985 | |||
| IVECO | 109-14 | 0ccm Diesel | 8060.04.689 | 1983 - 1991 | |||
| IVECO | 110-14 | 0ccm Diesel | 8060.04.639.. | 1983 - 1984 | |||
| IVECO | 110-17 | 0ccm Diesel | 8060.25.678 | 1987 - 1999 | |||
| IVECO | 115-14 | 0ccm Diesel | 8060.4.. | 1983 - 1991 | |||
| IVECO | 145-17 | 0ccm Diesel | 8060.25.600 | 1986 - 1992 | |||
| IVECO | 150-17 | 0ccm Diesel | 8360.05.200 | 1982 - 1984 | |||
| IVECO | 165-24 | 0ccm Diesel | 8220.22.002.... | 1982 - 1986 | |||
| IVECO | 180-26 | 0ccm Diesel | 8210.02.371... | 1982 - 1986 | |||
| IVECO | 190-26 | 0ccm Diesel | 8210.02.067... | 1983 - 1987 | |||
| IVECO | 190-30 | 0ccm Diesel | KHD-BF8L513 | 1987 - 1997 | |||
| IVECO | 190-30 | 0ccm Diesel | 8210.22.259... | 1987 - 2000 | |||
| IVECO | 190-32 | 0ccm Diesel | 8210.22.869 | 1987 - 1989 | |||
| IVECO | 190-35 | 0ccm Diesel | 8280.02.109 | 1983 - 1984 | |||
| IVECO | 190-38 | 0ccm Diesel | 8280.22.007... | 1980 - 1987 | |||
| IVECO | 220-38 | 0ccm Diesel | 8280.22.007... | 1980 - 1986 | |||
| IVECO | 240-30 | 0ccm Diesel | 8210.22.269... | 1980 - 1989 | |||
| IVECO | 240-38 | 0ccm Diesel | 8280.22.033... | 1980 - 1986 | |||
| IVECO | 260-26 | 0ccm Diesel | 8210.02.... | 1977 - 1986 | |||
| IVECO | 260-30 | 0ccm Diesel | 8210.22.269 | 1984 - 1991 | |||
| IVECO | 260-35 | 0ccm Diesel | 8280.02.269 | 1983 - | |||
| IVECO | 320-30 | 0ccm Diesel | 8210.22.235 | 1984 - 1996 | |||
| IVECO | 330-26 | 0ccm Diesel | 8210.02.266... | 1979 - 1984 | |||
| IVECO | 330-30 | 0ccm Diesel | 8210.22.069... | 1984 - 1992 | |||
| IVECO | 330-35 | 0ccm Diesel | 8280.02.... | 1980 - 1992 | |||
| IVECO | 330-36 | 0ccm Diesel | 8210.42R.269.. | 1989 - 1998 | |||
| IVECO | 65-10 | 0ccm Diesel | 8340.04.200... | 1983 - 1984 | |||
| IVECO | 65-9 | 0ccm Diesel | 8040.05.230 | 1987 - 1992 | |||
| IVECO | 79-10 | 0ccm Diesel | 8340.04.200 | 1983 - 1987 | |||
| IVECO | 90-13 | 0ccm Diesel | 8060.04.055.. | 1983 - 1985 | |||
| IVECO | 90-17 | 0ccm Diesel | 8060.25.670 | 1987 - 1995 | |||
| IVECO | TurboTech 190-24 | 9500ccm Diesel | 8460.21.202.. | 1988 - 1998 | |||
| IVECO | TurboTech 190-26 | 9500ccm Diesel | 8460.21.102.. | 1986 - 1994 | |||
| IVECO | TurboTech 220-32 | 9500ccm Diesel | 8460.41.102 | 1989 - 1999 | |||
| IVECO | TurboTech 240-26 | 9500ccm Diesel | 8460.21.102 | 1990 - 2000 | |||
| IVECO | TurboTech 240-32 | 9500ccm Diesel | 8460.41.102 | 1989 - 1998 | |||
| IVECO | TurboTech 260-32 | 9500ccm Diesel | 8460.41.124 | 1990 - 2000 | |||
| LAVERDA | 3900 | 0ccm Diesel | 8261.I.002 | 1983 - 1985 | |||
| LAVERDA | MX300 | 0ccm Diesel | 8210.SI.02 | 1987 - 1990 | |||
| VM DIESEL | 3105M11.5 | 0ccm Diesel | 1989 - |
Description
A0839 Replacement Alternator
For a A0839 alternator enquiry, use Lucas reference LRA00839 alongside the vehicle and original unit details. The listed electrical rating is 24V 27A. An alternator maintains battery charge and supplies electrical power while the engine runs. Applications include selected Fiat Truck 100 F13 variants.
Key Features and Benefits
- 24V electrical system: match the vehicle voltage before selecting a unit.
- 27A output: compare the listed rating with the original alternator.
- Single-groove pulley: check belt profile and alignment against the existing unit.
- 3 mounting holes: compare the fixing pattern and unit position.
- M6 B+ terminal: check the connection against the original unit.
Compatible Vehicles and Applications
- Fiat Truck 100 F13 – selected applications 1978–1982 (engine code 8060.04.055).
- Fiat Truck 100 NC – selected applications 1972–1980 (engine code 8060.02).
- Fiat Truck 110 NC – selected applications 1978–1981 (engine code OM8360.04.300).
- Fiat Truck 130 NC – selected applications 1978–1984 (engine code OM8360.04.300).
- Fiat Truck 150 NC 17 – selected applications 1976–1979 (engine code 8360.03).
- Fiat Truck 40 NC – selected applications 1978–1981 (engine code 8040.02.360).
These are selected applications, not the complete fitment list. Check the detailed vehicle compatibility table, engine code and production year, then compare the original unit before ordering.
OE Numbers and Cross-Reference Information
The following cross-reference numbers are associated with A0839. Compare them with the original unit and technical specifications; a number match alone does not establish vehicle compatibility.
120489410, 120489412, 120489414, 120489612, 120489639, 120489792, 120489793, 120489795, 120489796, 986031340, 436416, 510391, NA181, DAN603, LRA00839, LRA839, DRA1340, 860141, MG 369, MG 516, 11.201.055, 11.201.075, 11.201.468, AAK1110, AAK1209, AAK3564, IA0055, IA0075, 038520135A, 38520135A, 1516473R, 1516529R
The full manufacturer cross-reference and OE listings are available elsewhere on this page. Confirm whether a number is an OE or aftermarket reference when comparing the original unit.
When Should You Replace Your Alternator?
Charging warning lights, repeated loss of battery charge, dim or fluctuating lights and inconsistent electrical operation can indicate a charging-system problem. Battery condition, wiring and the drive belt can produce similar symptoms; arrange a diagnostic check before replacing the alternator.
Why Buy from Sahibs Auto Electrics?
Sahibs Auto Electrics is a UK automotive electrical parts specialist supplying alternators and starter motors. Ask for help identifying A0839 using the existing part number and vehicle details. Check the current condition options and availability before purchase. Buy online for UK delivery or Click & Collect, checking the current order arrangements.
Frequently Asked Questions
Will A0839 fit my Fiat Truck 100 F13?
Fiat Truck 100 F13 (1978–1982) is a listed application. Confirm the engine code and original unit configuration in the detailed fitment table.
Does A0839 replace Lucas LRA00839?
Lucas LRA00839 is a listed identification reference. Compare it with the original unit and specifications; a cross-reference does not guarantee compatibility by itself.
What specifications are listed for A0839?
The listed details include 24V, 27A output, 1 pulley groove. Compare the complete specifications on this page with the unit being replaced.
Is A0839 new or remanufactured?
Check the current product condition selection for A0839. Confirm the supplier and availability of the option you want before completing the order.
What should I compare before ordering A0839?
Compare 24V compatibility, 27A output, pulley configuration, mounting points and electrical connections with the original alternator.
Does a battery warning light prove the alternator has failed?
No. Battery, belt, wiring and control faults can also affect charging. Use a charging-system test to establish the cause before ordering a replacement.
